| Quantity: | |
|---|---|
China
GREETWIN
SGS, ISO9001
GW-36T
1PC
$2123.1-2412.6
450mm X 348mm X186mm
3-5days
L/C, D/A, D/P, T/T, Western Union, MoneyGram
10000

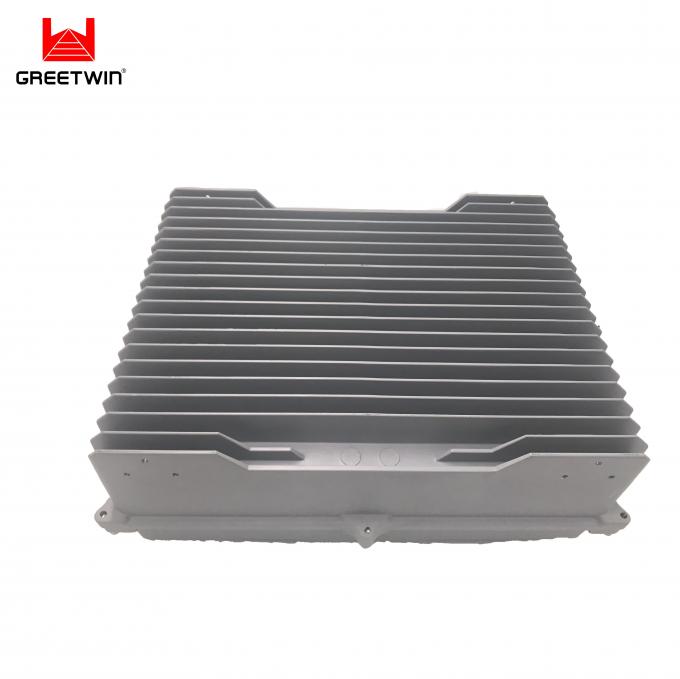

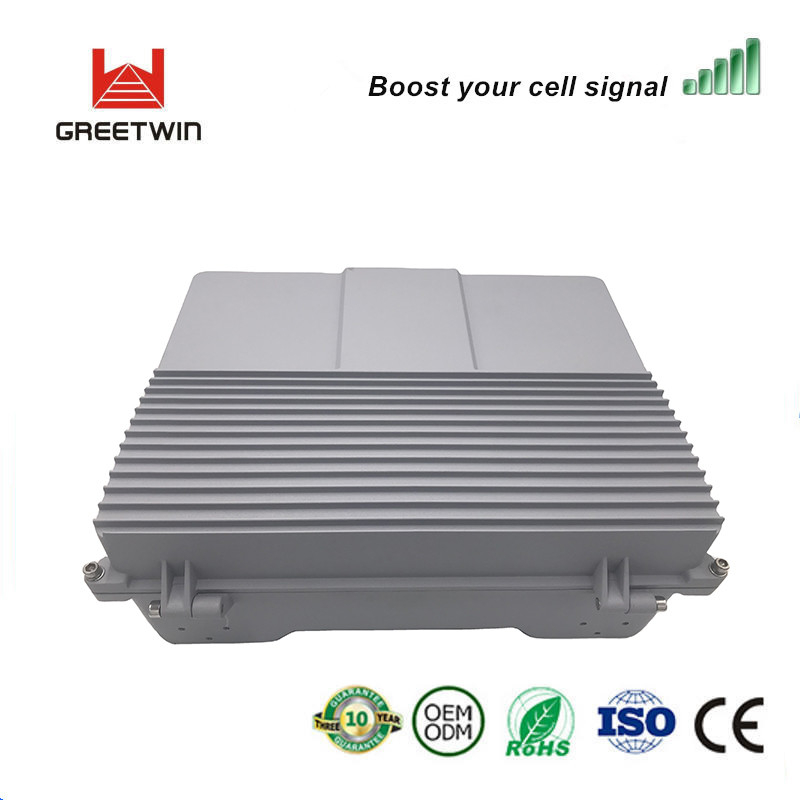

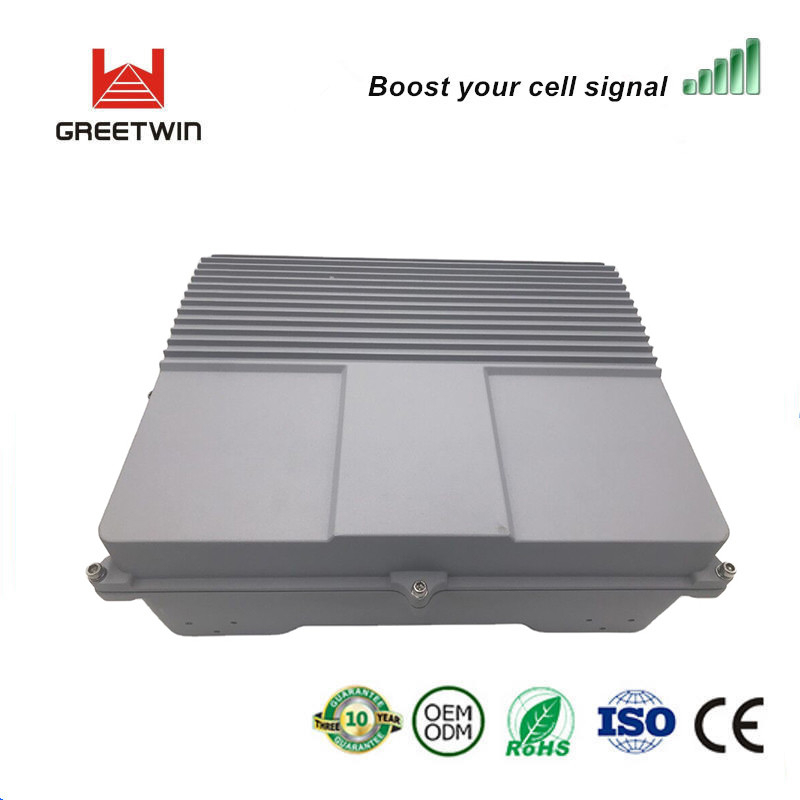

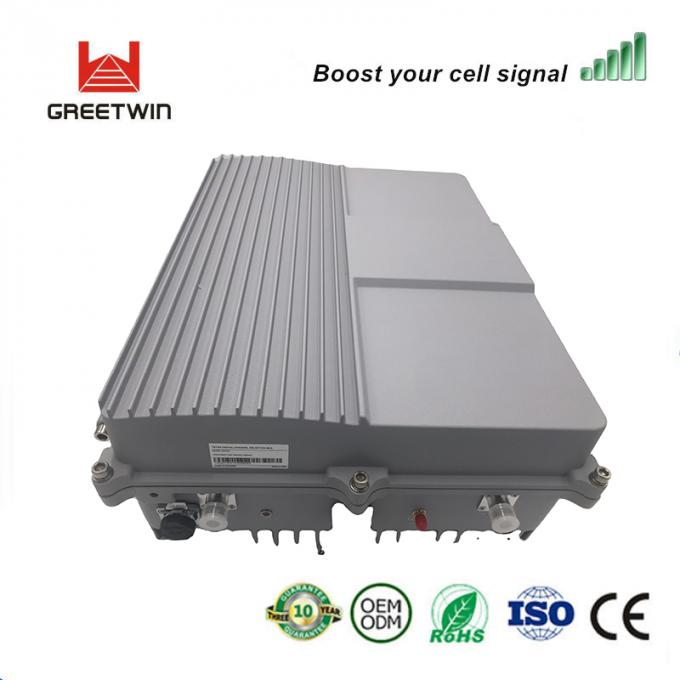

TETRA 400 MHz Band Selective Repeater RF BDA Bi Directional Amplifier Phone Signal Booster
A consumer, commercial, and public safety BDA System is also known as a cell phone signal booster system or PASSIVE DAS system (passive distributed antenna system PDAS). It is typically ideal for approximately UNDER 10 floors and 500,000 sq. ft. of coverage areas to fix dead zones within them for all cellular carriers simultaneously. It requires some signal outside in one spot for it to amplify and distribute it indoors using distributed RF antenna(s). Great for schools and universities. Hotels are perfect because SureCall cell boosters allow a large amount of simultaneous callers. Hospitals and medical facilities have been using BDAs for years to eliminate dead zones. It can be installed a lot quicker (within weeks) at a much lower cost than digital fiber optic DAS systems.
| Item | Specifications | |
| Frequency Range | Uplink | 410-415MHz |
| Downlink | 420~425MHz | |
| Maximum Input Power (Non-Destructive) | 0dBm | |
| Maximum Gain | Uplink | 85±3dB |
| Downlink | 90±3dB | |
| Maximum Output Power | Uplink | 30±2dBm |
| Downlink | 36±2dBm | |
| Gain Adjustment Range | 1~31 dB @ step of 1 dB | |
| AGC Range | ≥20dB | |
| VSWR | ≤1.5 | |
| Noise Figure | ≤ 6dB | |
| In-band Ripple | ≤±2.5dB | |
| Spurious Emission | 9kHz~1GHz: ≤ -36dBm | |
| 1GHz~12.75GHz: ≤ -30dBm | ||
| Third-order Inter-Modulation | ≤ -45dBc | |
| System Delay | ≤8μSec | |
| I/O Impedance | 50Ω | |
| RF Connector | N- Female | |
| Temperature Range | Operation: -25°C ~ + 55°C | |
| Relative Humidity Range | ≤ 95% (Non Condensing) | |
| Power Supply | AC220V,50/60Hz | |
| Power Consumption | ≤150W | |
| Application | Indoor and outdoor (IP65) | |
| Dimensions | 428mm X 328mm X175mm | |
| Weight | ≤15kg | |
| Local Control | PC+USB and WiFi Hotspot | |
| Remote Monitoring(Optional) | 4G Wirelss Modem(Cloud Network Management System) | |
| NMS Monitoring Function | Real-time alarm for door status, temperature, power supply, VSWR, etc; Remote control such as turn on/off, increasing/decreasing output power etc; Real-time status for output/input power, UL/DL gain, all status of BDA etc. | |

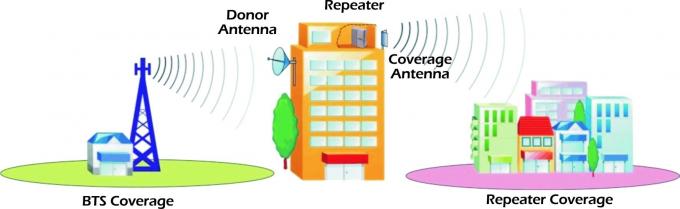

The BDA is working as a relay between the BTS and mobiles. It receives the low-power signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
OEM Customized Service
Silkscreen OEM service can be offered
TETRA 400 MHz Band Selective Repeater RF BDA Bi Directional Amplifier Phone Signal Booster
A consumer, commercial, and public safety BDA System is also known as a cell phone signal booster system or PASSIVE DAS system (passive distributed antenna system PDAS). It is typically ideal for approximately UNDER 10 floors and 500,000 sq. ft. of coverage areas to fix dead zones within them for all cellular carriers simultaneously. It requires some signal outside in one spot for it to amplify and distribute it indoors using distributed RF antenna(s). Great for schools and universities. Hotels are perfect because SureCall cell boosters allow a large amount of simultaneous callers. Hospitals and medical facilities have been using BDAs for years to eliminate dead zones. It can be installed a lot quicker (within weeks) at a much lower cost than digital fiber optic DAS systems.
| Item | Specifications | |
| Frequency Range | Uplink | 410-415MHz |
| Downlink | 420~425MHz | |
| Maximum Input Power (Non-Destructive) | 0dBm | |
| Maximum Gain | Uplink | 85±3dB |
| Downlink | 90±3dB | |
| Maximum Output Power | Uplink | 30±2dBm |
| Downlink | 36±2dBm | |
| Gain Adjustment Range | 1~31 dB @ step of 1 dB | |
| AGC Range | ≥20dB | |
| VSWR | ≤1.5 | |
| Noise Figure | ≤ 6dB | |
| In-band Ripple | ≤±2.5dB | |
| Spurious Emission | 9kHz~1GHz: ≤ -36dBm | |
| 1GHz~12.75GHz: ≤ -30dBm | ||
| Third-order Inter-Modulation | ≤ -45dBc | |
| System Delay | ≤8μSec | |
| I/O Impedance | 50Ω | |
| RF Connector | N- Female | |
| Temperature Range | Operation: -25°C ~ + 55°C | |
| Relative Humidity Range | ≤ 95% (Non Condensing) | |
| Power Supply | AC220V,50/60Hz | |
| Power Consumption | ≤150W | |
| Application | Indoor and outdoor (IP65) | |
| Dimensions | 428mm X 328mm X175mm | |
| Weight | ≤15kg | |
| Local Control | PC+USB and WiFi Hotspot | |
| Remote Monitoring(Optional) | 4G Wirelss Modem(Cloud Network Management System) | |
| NMS Monitoring Function | Real-time alarm for door status, temperature, power supply, VSWR, etc; Remote control such as turn on/off, increasing/decreasing output power etc; Real-time status for output/input power, UL/DL gain, all status of BDA etc. | |
The BDA is working as a relay between the BTS and mobiles. It receives the low-power signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
OEM Customized Service
Silkscreen OEM service can be offered
