| Quantity: | |
|---|---|
GW-23LGPA-K
Greetwin
$387.90
Neutral Packing
5-7 Day
TT/LC
20000PCS
China
Greetwin
CE
GW-23LGPA-K
1 PC

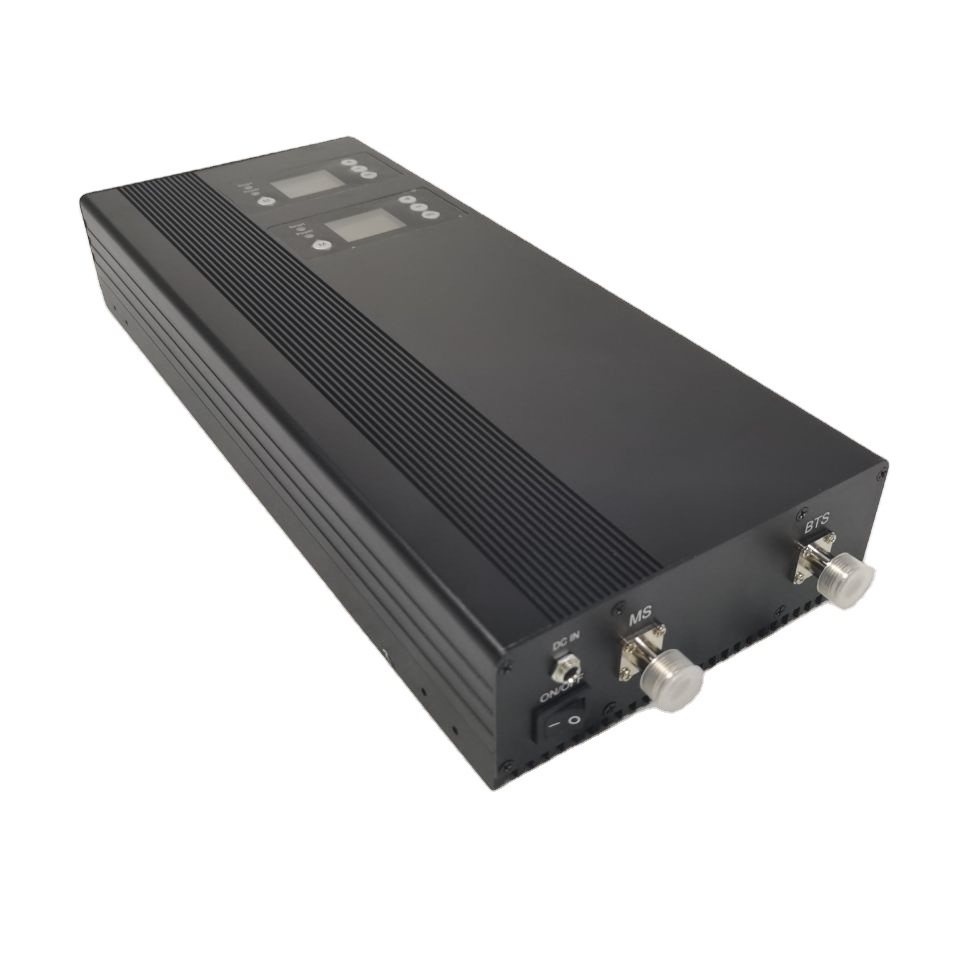

Mobile Phone Signal Booster 20dBM Quad Band B12 B5 B2 B4 Repeater
| Specification | Uplink | Downlink | |
| Frequency | LTE 700 MHz | 699-716MHz | 729-746MHz |
| GSM 850 MHz | 824-849MHz | 869-894MHz | |
| PCS 1900 Mhz | 1850-1910Mhz | 1930-1990Mhz | |
| AWS 1700 MHz | 1710-1755Mhz | 2110-2155Mhz | |
| Operation Bandwidth | Wide Band | ||
| Gain | ≥70dB | ≥70dB | |
| Output Power | ≥20dBm | ≥20dBm | |
| MGC (Manual Gain Control) | 70dB Range/1dB step | ||
| Ripple in Band | 8dB | ||
| Noise Figure | ≤ 6dB | ||
| VSWR | ≤2.0 | ||
| Automatic Level Control | 25dB | ||
| Intermodulation Products | ≤ -40dBc | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm/30KHz | |
| 1GHz~12.75GHz | ≤ -30dBm/30KHz | ||
| Frequency stability | ≤ 0.01ppm | ||
| MTBF | > 50000 hours | ||
| Time Delay | ≤1.5μs | ||
| Impedance | 50Ω | ||
| Power Supply | Input: AC 110~240V; Output: DC 9V/5A | ||
| LED Alarm | Power LED | DC ON/OFF | |
| Smart LED | Smart function ON/OFF | ||
| AGC Alarm | Alarm RED when ALC 5dB-10dB | ||
| ISO Alarm | Alarm RED when ALC 20dB-25dB, Then Repeater will Auto Shut Down. Auto restart after two minutes. | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Power Consumption | 25W | ||
| Operating Temperature | -10℃~ +55℃ | ||
| Environment Conditions | IP40(Indoor) | ||
| Installation Type | Wall Installation | ||
| Dimensions (D x W x H ) | 224*170*65mm | ||
| Weight | ≤ 6.5 KG | ||
The LCD Repeater covers all existing wireless public communications networks:
DCS/LTE 1800MHz, WCDMA 2100MHz,LTE2600Mhz

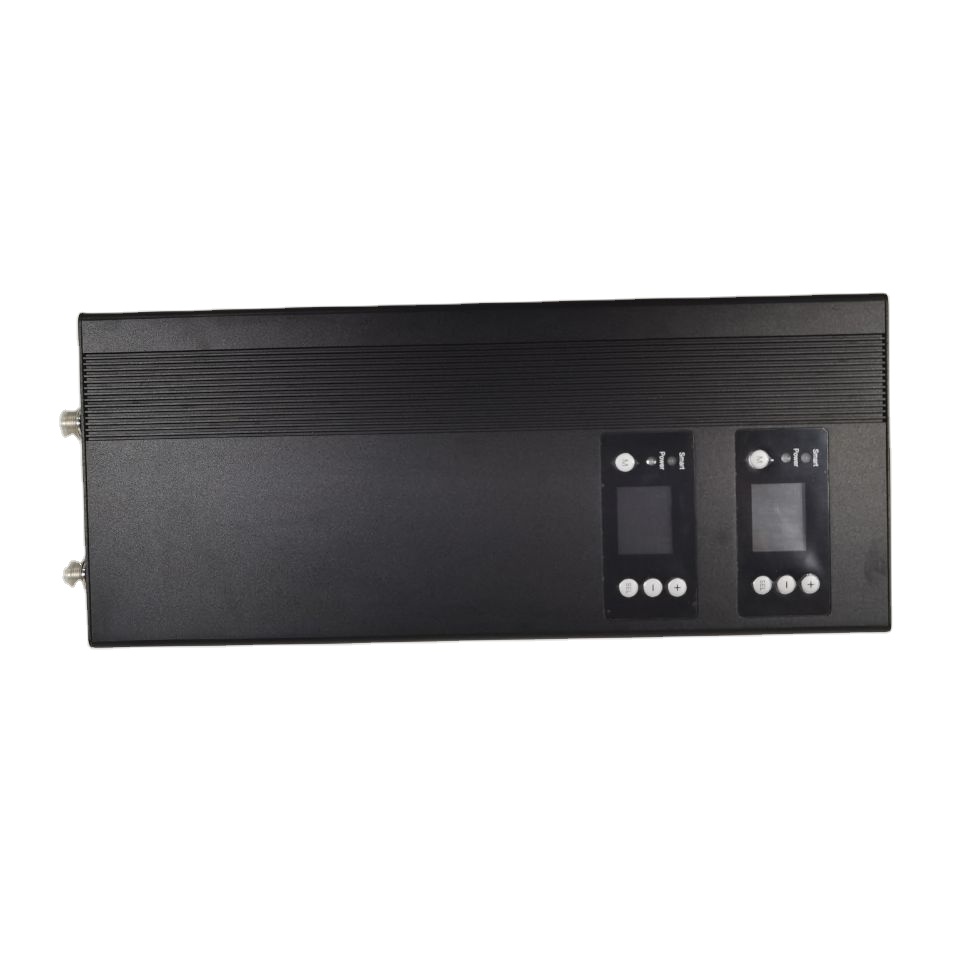

The LCD Repeaters have many intelligent functions: such as antenna isolation detection, Input & Output signal strength indication, system indication, manual gain control and smart mode. See the detailed introduction listed below:
The Display will auto off if don't touch it in one minute.
1. “GREETWIN”is Company LOGO.
2. Power: Power supply with indicator.
3. Smart: Smart function with indicator. AUTO Mode now.
4. M : “AUTO” switch to “MANU”.
5. Sel: Select the working systems ,
long press the button for 2s , will enter into 900M. then setting the gain.
then set the gain 65dB, long press the button for 2s again. 65dB was confirmed.
6. 900MHz: Show the current working system. Press “Sel” to change to the different system for operation.
7. AUTO/MANU: Automatic Mode or Manual gain Mode.
8. AGC: Automatic gain control with indicator.
9. ISO: Isolation inspection with indicator.
10. 63dB/68dB: Real-time gain show in the LCD display.
11. 0dBm/0dBm: Real-time outpower show in the LCD display.
12. UL is Uplink, DL is downlink. “+” is increasing the gain, “-” is decreasing the gain.
