Indoor Prison Cell Phone Signal Interrupter DIP Switch 15dBi Sector Antenna

Quantity:
  • China
  • GREETWIN
  • SGS, ISO9001
  • GW-J260D
  • 1pcs
  • Negotiable
  • Wooden Case with PE Foam
  • 10 Working Days After Received Payment
  • T/T, L/C, Western Union, MoneyGram
  • 500pcs per Month

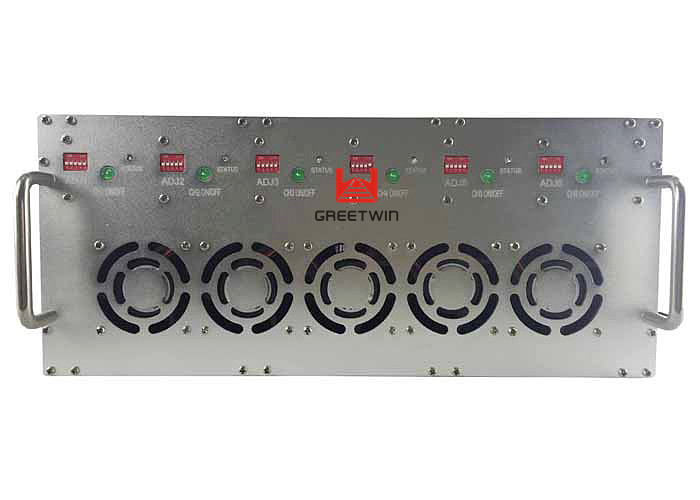

Indoor Prison Cell Phone Signal Interrupter DIP Switch 15dBi Sector Antenna





Introduction:

It can be used indoors, for example to block the cell phone signal in the churches, museums, movie theatres and other crowded places where the usage of mobile phone is prohibited. You can also use this jammer during the important conference in a meeting room to avoid the leakage of secure information. This unit will be irreplaceable in places where it is extremely important to keep the silence – in classrooms during the exams, courts, hospitals, banks, recording studios etc.



If you want to disable the usage of mobile phones outdoors, this jammer will be the perfect solution as well. We have a lot of customers worldwide who are looking for the best jamming solution to use it in prisons, customs, and military units, for border control and drug enforcement – GW-J260D is the right choice for these purposes.



This unit can be also used to protect your vehicle or convoy. With the unique set of antennas which can be chosen during the checkout process, you will be able to take out these antennas and put them outside of your car or escort car thus increase the jamming radius.



Prison Jammer Advantages:

1. Each channel can be controlled separately and simultaneously.
Manual adjustable output power with each channel.

2. VSWR protection,

When there be antenna disconnect, full system will not burn out.



Prison Jammer Features:

1. Max 600watts total RF output power.

2. Stable capability, cost-effective choice

3. Different frequency band can be controlled independently by single switches;

4. Power Amplifiers protection design ensures the working reliability of the device.

5. Can customize these frequencies AM, FM Radio, LoJack 173MHz, VHF, UHF, Walkie-talkie, interphone, Wireless Toys , FM Radio, Remote Control, 27MHz, 49MHz, 433MHz,315MHz, 868MHz, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA,UMTS,3G,4G,LTE 700, LTE 800, LTE 2300, LTE 2600, GPS L1,GPSL2, Galileo, Compass, Glonass, WIFI, Bluetooth, Spy camera, WIMAX, UAV, Drone, etc.



Prison Jammer Application:
Prisons, military, government, mosques, etc.



Prison Jammer Technical Specification:

Output interface Description Shield band of frequency RF output power
CH1 CDMA800 851-894 MHz 50dBm
CH2 WCDMA 3G 2110-2170 MHz 50dBm
CH3 GSM900 925-960 MHz 50dBm
CH4

GSM1800

/PCS 1900

1805-1880 MHz

/1930-1990 MHz

50dBm
CH5 WIFI, 2.4G 2400-2485 MHz 50dBm
CH6 LTE 2600 or LTE2300(Optional)

2620-2690MHz or

2300-2400MHz

50dBm
  GPS L1(Optional) 1570-1580 MHz 50dBm
  LTE800 or LTE700(Optional)

790-821 MHz or

725-770MHz

50dBm
Power supply: AC220V, DC 28V
Total Output Power: 600Watt
Power consumption:1800Watt

Weight: 30Kg

Size(length × wind × high):510×430×350mm

Humidity: 30%-95%

Running Temperature: -20℃ to +55℃

Jammer Module Number   6
Cooling System Systematic Smart Cooling System
System Protection

VSWR  Protection

Jamming Source Frequency Scan Technology

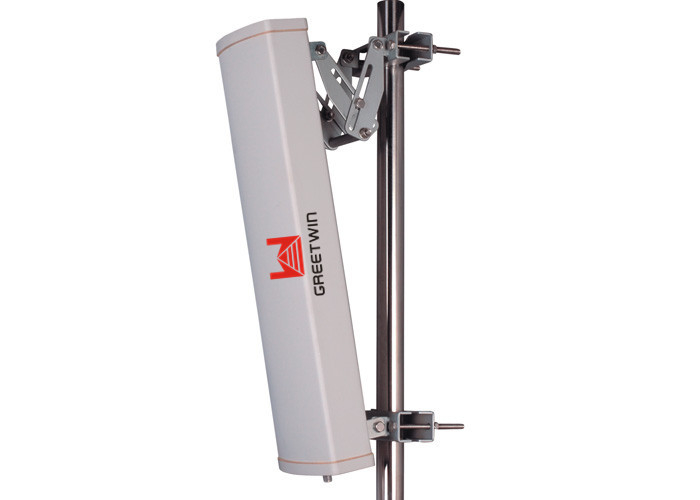

Antenna Type High Gain Directional Panel Antennas
 Jumper  1/2 superflexible coaxial cable
Jamming range: 50-600m according to signal density of mobile network



Indoor Prison Cell Phone Signal Interrupter DIP Switch 15dBi Sector Antenna 0
