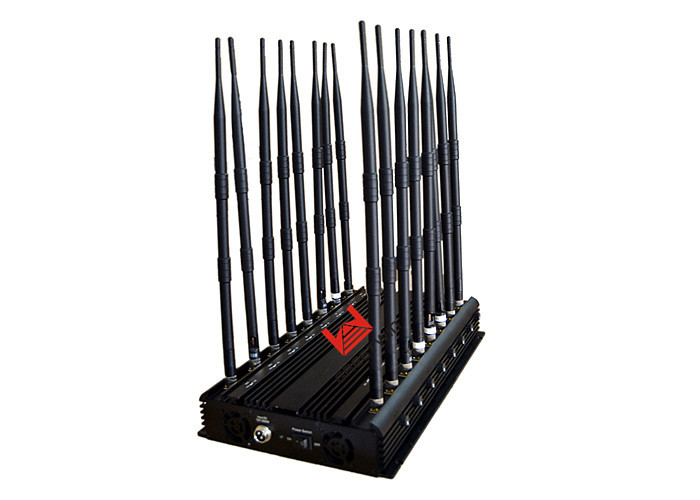

5.8G UAV Drone Frequency Jammer , Drone Jamming Devices 16 Antennas

Quantity:
  • Shenzhen,China
  • GREETWIN
  • SGS, ISO9001
  • GW-JA16
  • 1pcs
  • Negotiable
  • Carton with PE Foam
  • 3 Working Days After Received Payment
  • T/T, L/C, Western Union, MoneyGram
  • 5000pcs per Month

5.8G UAV Drone Frequency Jammer , Drone Jamming Devices 16 Antennas



Signal Jammer Description:

Firstly, as owning the advanced design of 16 antennas so that this high power desktop signal jammer can cut off all the 2G 3G 4G 5.8G mobile phone signals and also Bluetooth WiFi GPS VHF UHF LoJack signals at the same time as well. Thus since the all bands WiFi GPS VHF UHF LoJack 3G 4G signal jammer owns the adjustable buttons so that the owners can also easily decide the jamming distance and also adjust the power as well at the same time, which is really convenient. Thus 24/7 nonstop working goal can be easily achieved by this desktop WiFi GPS VHF UHF LoJack 4G all bands jammer since high quality cooling system has been used on it. Thus because of the design of the car charger this high power adjustable WiFi GPS VHF UHF LoJack phone blocker can also be applied in the car as well.



Signal Jammer Features:

Drone Jammer UAV Jammer With the current of car and car adaptor design make the jammer

can be used on the vehicle directly.

1. Total output power: 38W

2. Heat sink case makes the jammer work in a more stable and cool situation.

3. 16 channels with different frequency range,

or customize other cellular standard in the world.

Such as Walkie Talkie,450MHz,GPRS,iDEN,GPS, Galileo,Compass,Glonass,UMTS,WiFi,AWS,LTE 4G.

Signal Jammer Specification:

Output port Frequency Average out-putting power Channel out-putting power
CDMA 851-894MHz 35dBm 5dBm/30KHz(min)
GSM 925-960MHz 35dBm 5dBm/30KHz(min)
DCS 1805-1880MHz 33dBm 2dBm/30KHz(min)
PCS 1920-1990MHz 33dBm 2dBm/30KHz(min)
3G 2110-2170MHz 33dBm 2dBm/30KHz(min)
WIFI2.4G 2400-2500MHz 30dBm 0dBm/30KHz(min)
GPS 1575MHz 32dBm 5dBm/30KHz(min)
4G LTE700/LTE800 725-825MHz 34dBm 3dBm/30KHz(min)
4G WIMAX 2500-2690 MHz 30dBm 0dBm/30KHz(min)
UHF 400-470Mhz 34dBm 2dBm/30KHz(min)
VHF 135-174Mhz 34dBm 2dBm/30KHz(min)
LOJACK 173.075Mhz 34dBm 5dBm/30KHz(min)
315 315Mhz 33dBm 5dBm/30KHz(min)
433 433Mhz 34dBm 5dBm/30KHz(min)
5.8G 5725-5850MHz 33dBm 5dBm/30KHz(min)
GPSL2-L5 1170-1280MHz 32dBm 5dBm/30KHz(min)
Option 4G2300/868/3.6G/ UHF200-400MHz/ Wireless camera1000-1390MHz.etc.

Power supply: AC adapter (AC220V-DC12V)

Shielding Radius: (5-50) meters@-75dBm still depends on the strength signal in given area.The shielding radius of VHF/UHF signal should be lesser than cell phone signal.

Dimension: (width, height, length) 238x60x395mm Net weight: 7.0kg
