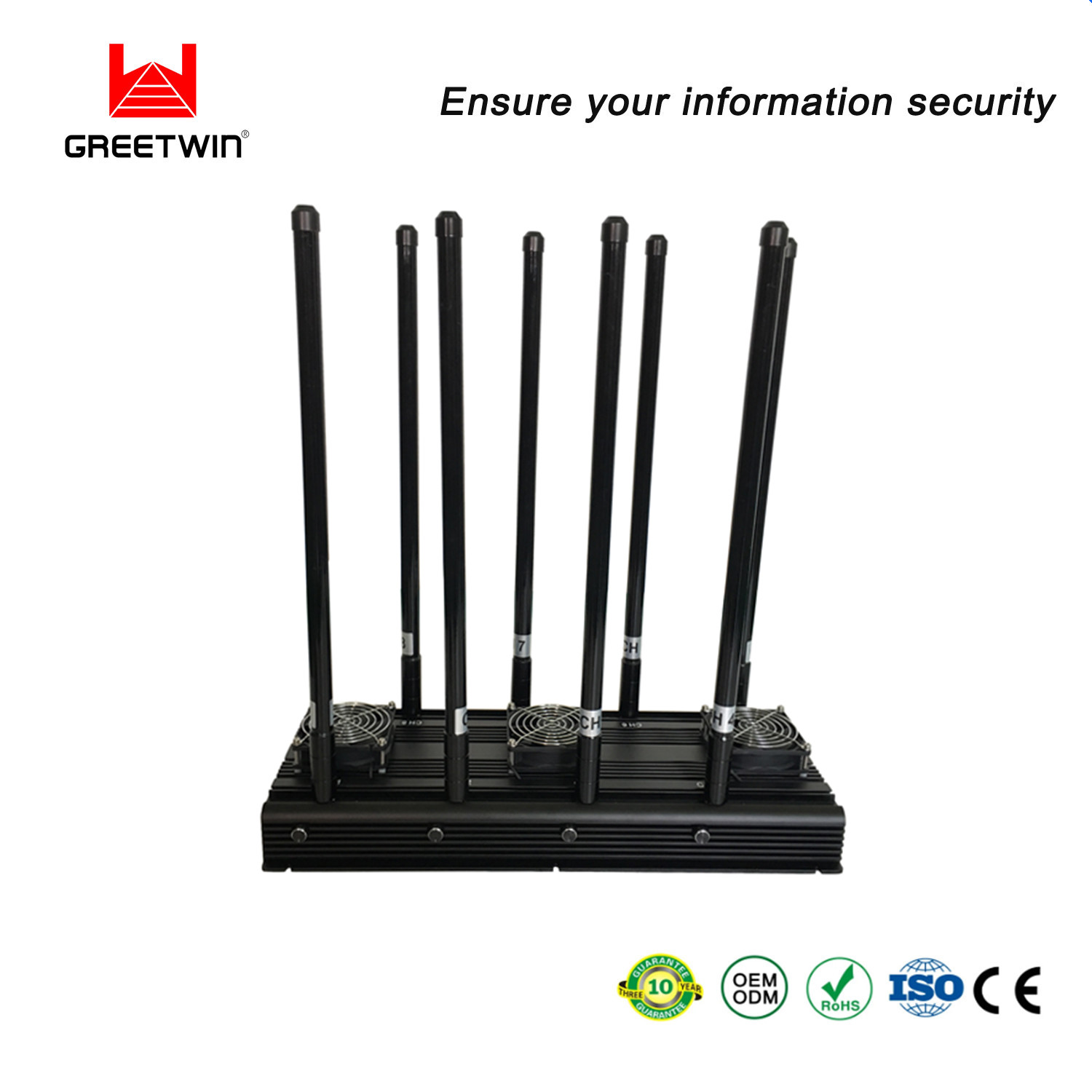

Wifi GPS 4G 205W 8 Bands Signal Blocker Mobile Phone Signal Omni Patch Antennas
| GW-JA8XF 5G Europe 8 bands | GW-JA8XF 5G America 8 Bands | GW-JA8XF G5 America 8 Bands |
| 758-830MHz: 25W 5G, 4G LTE Low | 850-895MHz: 25W CDMA 850 | 850-895MHz: 25W CDMA 850 |
| 920-965MHz: 25W GSM900 | 1800-2000MHz: 20W DCS, PCS | 1800-2000MHz: 20W DCS, PCS |
| 1800-1920MHz: 20W DCS | 2100-2170MHz: 30W 3G, UMTS | 2100-2170MHz: 30W 3G, UMTS |
| 2100-2170MHz: 30W 3G, UMTS | 2300-2500MHz: 20W 4G LTE + WiFi 11.b & g | 2300-2500MHz: 20W 4G LTE + WiFi 11.b & g |
| 2400-2500MHz:20W WiFi 11.b & g | 2500-2700MHz:20W 4G WiMAX Sprint | 2500-2700MHz:20W 4G WiMAX Sprint |
| 2570-2690MHz:20W 4G LTE High | 700-800MHz: 20W 4G LTE USA iPhone (AT&T & Verizon) | 700-800MHz: 20W 4G LTE USA iPhone (AT&T & Verizon) |
| 1450-1500MHz 20W 5G | 5G 617-652MHz 20W 5G | 5G 617-652MHz 20W 5G |
| 5G 3400-3800MHz 4W 5G | 1700-1800MHz: 20W 4G LTE | 5.1-5.9GHz 4.0W 5GHz 11.a |
| Total : 164W | Total : 175 W | Total : 159 W |
| Option: GPS L2 L3 L4 L5: 15W, VHF 130-180MHz: 20W, 300-400MHz: 20W, UHF 420-480MHz: 20W, 4G 2620-2690MHz: 15W, LoJack 173MHz: 30W, 4G LTE USA Iphone 700-800MHz: 15W | ||
| Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF) 100% Safe VSWR over protection (Isolator) for each modular | ||
| Power supply: | AC110 or 220-240V /DC 27V | |
| Jamming Range | Radius 50~150 meters (-75dBm@Omnidirectional antennas) | |
| Weight | 11Kg | |
| Dimension: | 560 x 235 x 95mm | |
| Working time: | Without the time limit, May continue to work, | |
| Antenna | External Omni 500mm long or Directional Patch Panel Antennas | |
| Warranty: | 1 year | |
Product description:
This is the latest designed with 8 Antennas all-in-one for mobile phone 5GLTE GSM 3G 4GLTE signals which bring us a strong jamming ability. And it can not only cut off all 5G 3G 4G mobile phone signals, but also jam Wi-Fi2.4G/5GHz GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. Full bands jammer is power full to blocks all the signals, Jamming frequencies the jamming radius up to 50meters
Advantages:
Full bands 8 chancel design, Customized for special frequency range
High output power, Total up to: 95W , jamming up to 40m (Still depends on the strength signal in given area)
External Omni-directional antennas all the TX frequency covered down link only
With Car storage battery Charger DC12V can be used in car
Built-in good cooling system inside, Working non-stopped
Can adjust or turn off any single band without influencing the other bands operation
2-5meters with Infrared Remote Control Turn ON /OFF Power
OEM Customized Service
Silkscreen OEM service can be offered
Application
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
