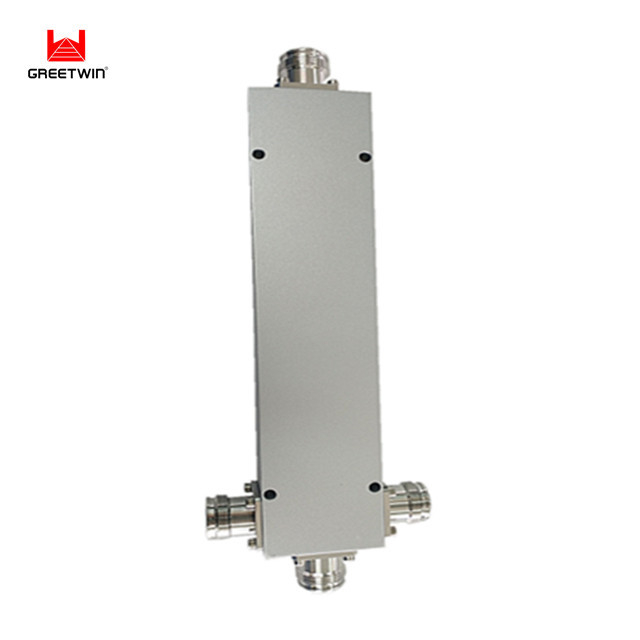

3 Way Silver Plated RF Power Splitter 50W 600~6000MHz

Quantity:
  • SHENZHEN
  • Greetwin
  • CE, RoHS
  • GW-MWPS-6060-03-41F-153
  • 2pcs
  • $42.3-$49.8/ PC
  • Carton with PE Foam
  • 3 Working Days After Received Payment
  • T/T, Western Union, MoneyGram
  • 10000pcs per Month

3 Way RF Power Splitter 50W Combiners

600~6000MHz Power Divider



Splitter Specification:



Model No. GW-MWPS-6060-02-41F-153 GW-MWPS-6060-03-41F-153 GW-MWPS-6060-04-41F-153
Freq(MHz) 600-6000
Split Loss(dB) 3.0 4.8 6.0
Insertion Loss(dB) ≤1.0 ≤1.2 ≤1.5
Isolation(dB) ≤18 ≤16 ≤16
VSWR ≤1.45 ≤1.50 ≤1.50
PIM (dBc) ≤-153dBc@2*43dBm (698-2700)
Power(W) 50(average)
Impedance 50 ohm
Connector 4.3/10-female
Color Silver-plated
Temp(deg) -30~+70
Application Indoor or Outdoor



Product Description

Greetwin manufactures a large selection of 3-way power dividers in narrowband and broadband configurations, covering frequencies from 600MHz to 6 GHz. They are designed to handle from 10 to 50 watts input power in a 50-ohm transmission system. Microstrip or stripline designs are utilized, and optimized for best performance.

Units come standard with SMA or N female connectors.



3 Way Silver Plated RF Power Splitter 50W 600~6000MHz 0

3 Way Silver Plated RF Power Splitter 50W 600~6000MHz 1



3 Way Silver Plated RF Power Splitter 50W 600~6000MHz 2



3 Way Silver Plated RF Power Splitter 50W 600~6000MHz 3

3 Way Silver Plated RF Power Splitter 50W 600~6000MHz 4
