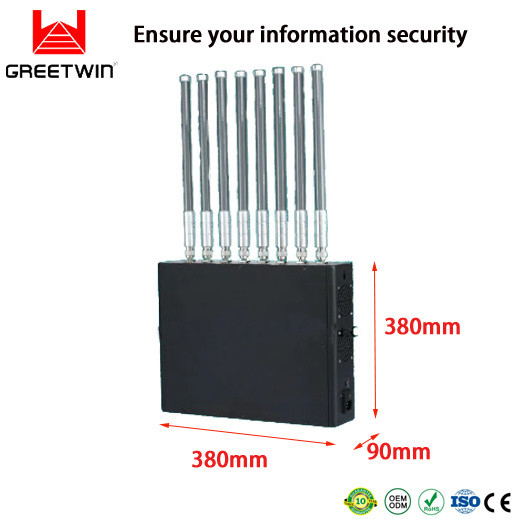

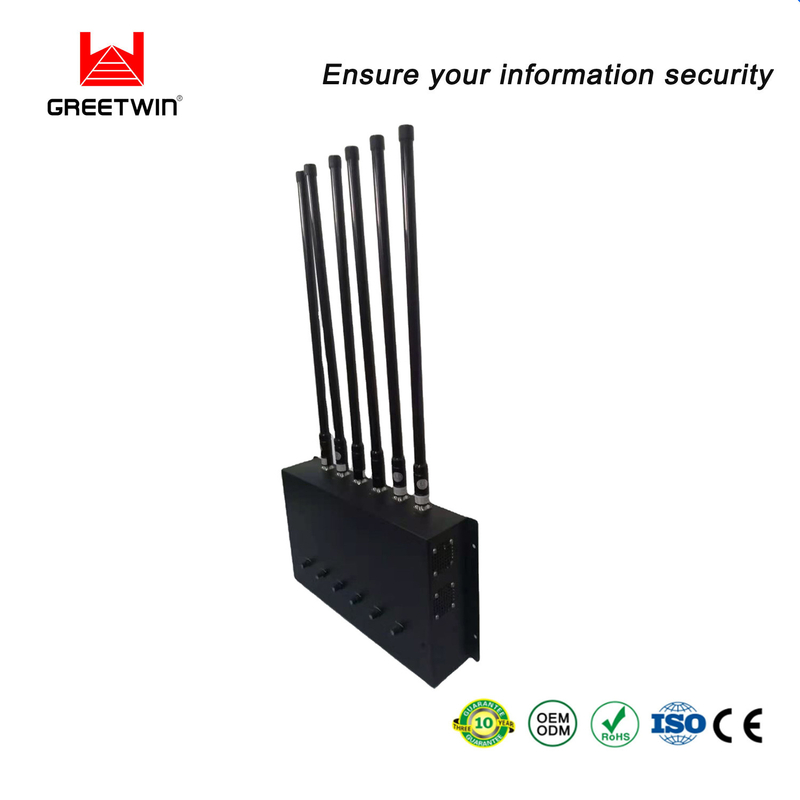

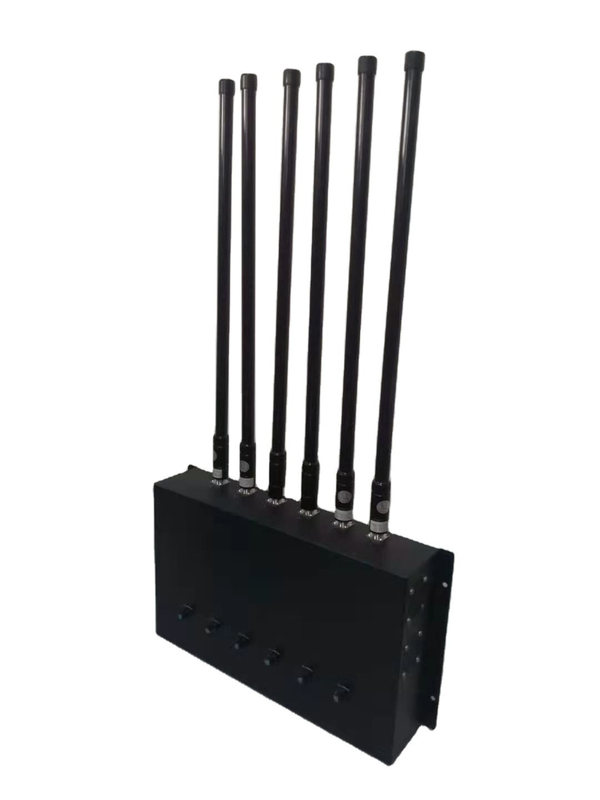

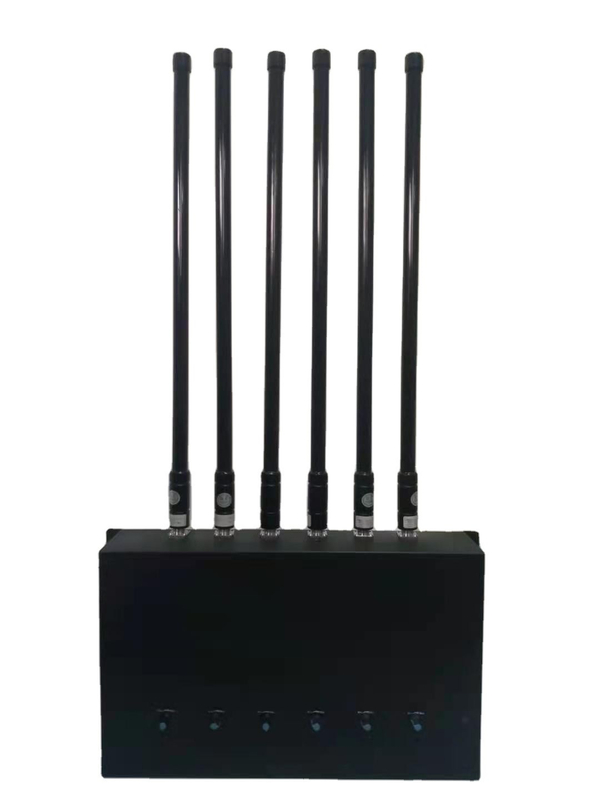

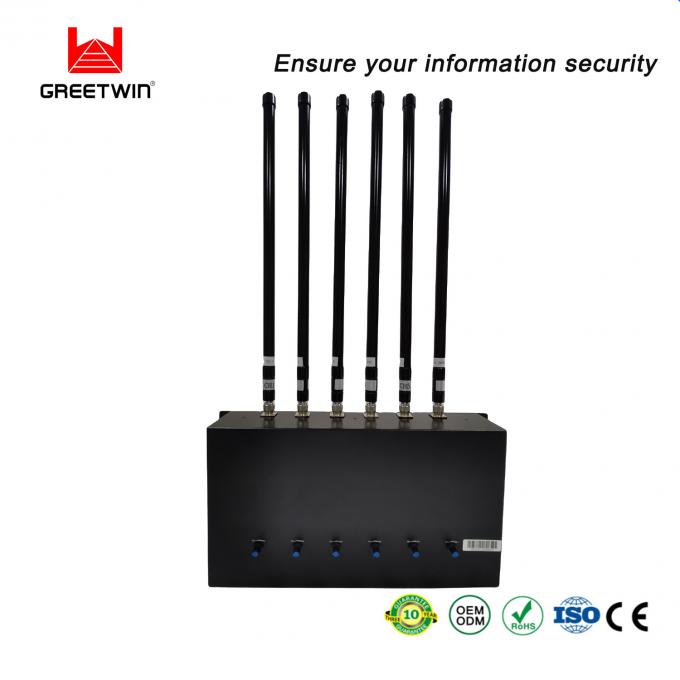

160W 3G 4G LTE 5g 700-6000MHz Adjustable Signal Scrambler

Quantity:
  • China
  • GREETWIN
  • SGS, ISO9001
  • GW-J80A
  • 1PCS
  • $856.3-972.6
  • Carton with PE Foam
  • 3 Working Days After Received Payment
  • T/T, L/C, Western Union, MoneyGram
  • 30000pcs per Month



160W 3G 4G LTE 5g 700-6000MHz Adjustable Cell Phone Signal Scrambler RF Jammer Signal Jammer



Have you ever consider that just in one device jamming the signals of the CDMA/GSM, DCS/PCS, 3G, 4G, WiFi, VHF, UHF, GPSL1 and LoJack signals can be disabled at the same time? This is not a dream now and right here this 10 Antennas Inside High Power 4G Mobile Phone Signal Jammer being introduced here just owns the function.



8-Band Signal Jammer:
1) 80W,each band 10W,blocking 10-100M
2)160W,each band 20W,blocking 20-120M
3) 240W,each band 30W,blocking 30-150M

* customize 4 - 10 bands jammer and special frequency like WIFI5.8G,5G3400,5G3600,etc.


The mobile phone jammer is a device that deliberately transmits signals on the same radio frequencies as mobile phones, disrupting the communication between the phone and the cell-phone base station, effectively disabling mobile phones within the range of the jammer, preventing them from receiving signals and from transmitting them. Jammers can be used in practically any location, but are found primarily in places where a phone call would be particularly disruptive because silence is expected, such as entertainment venues

Applications:
1. It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality, and information security
2. For some locations of special purpose such as hospitals, gas stations, and more, please do a field test first to make sure no interference happened to the normal operation of their equipment and instrument.



Features:
1.Using ultra-high frequency broadband jamming technology.
2.Can adjust the outpower by potentiometer.
3.Effective power (Channel power) high, and interference big radius.
4.Each road has a separate switch can be controlled
5.Stable capability, cost-effective choice.
6. Eight channels with different frequency range, Or customize other cellular standards in the world.
Like: LoJack 173MHz, VHF, UHF, Walkie-talkie, interphone, 433MHz,315MHz, 868MHz, 450MHz, iDEN, CDMA, GSM,
GPRS, DCS, PCS, AWS, WCDMA,UMTS,3G,4G,LTE 700, LTE 800, LTE 2300, LTE 2600, GPS L1,GPS L2, Galileo,
Compass, Glonass, WIFI, Bluetooth, camera, WIMAX, UAV, Drone, 5.8G, etc



Prison Jammer Data Sheet:

Output port Frequency Average output power(+1dBm)
GSM 925-960MHz 43dBm
DCS 1805-1880MHz 43dBm
GPSL1 1570-1580MHz 43dBm
WiFi 2400-2500MHz 43dBm
3G 2110-2170MHz 43dBm
LTE800 791-821MHz 43dBm
LTE2600 2620-2690MHz 43dBm
Lojack 173MHz 43dBm

Power supply: AC110-240V,DC24-28V

Output power: 160W
Energy consumption: 480W

Dimension(mm): 502(L)*103(W)*280(H)
Packing Size(mm): 562(L)*163(W)*340(H)

Weight: 13.5kg
Running temperature: -25'C to +55'C
8pcs External 5dBi Omni directional antennas
Turn on/off: software monitoring or infrared remote control(Optional).
Jamming range(radius): 30-120m (Depend on local signal intensity)
Humidity: 5% - 95%
Software Monitoring(Optional): Alarm, VSWR, temperature, on/off switch.

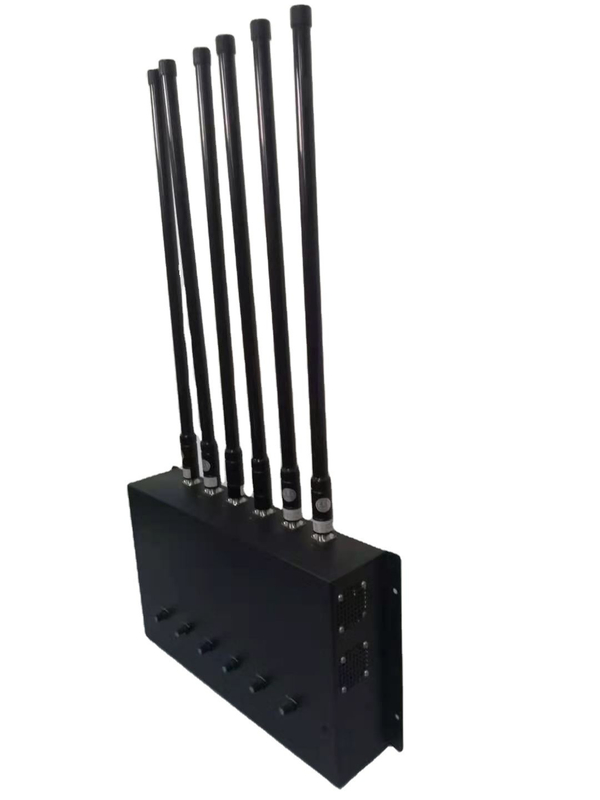

160W 3G 4G LTE 5g 700-6000MHz Adjustable Signal Scrambler 0

160W 3G 4G LTE 5g 700-6000MHz Adjustable Signal Scrambler 1



160W 3G 4G LTE 5g 700-6000MHz Adjustable Signal Scrambler 2

160W 3G 4G LTE 5g 700-6000MHz Adjustable Signal Scrambler 3
