| Quantity: | |
|---|---|
Shenzhen
Greetwin
CE, RoHS
GW-J5UAVM
1 Piece
US $45.6-79.9/ Piece
Output Power: 5W; Neutral Packing, Product Size: 110*47*20mm. Origin: Shenzhen
5-8 work days
L/C, T/T, Western Union, MoneyGram
2000PCS/Month

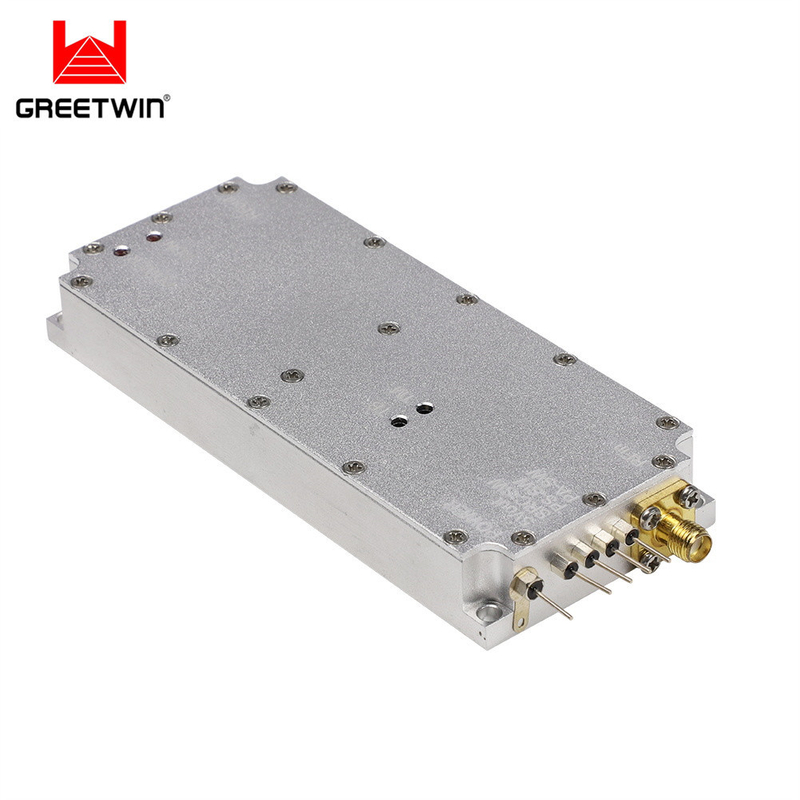

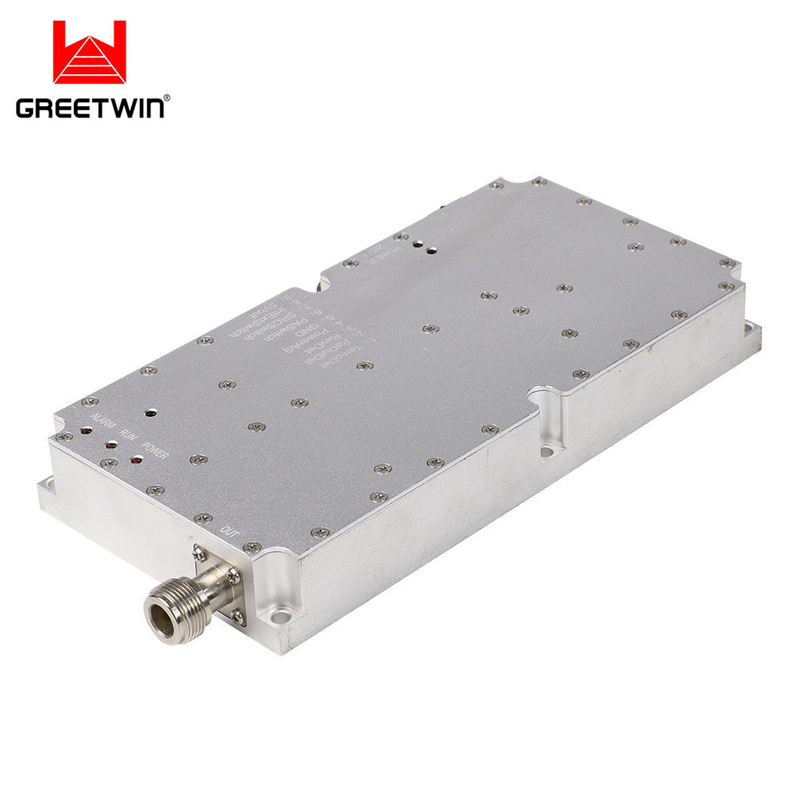

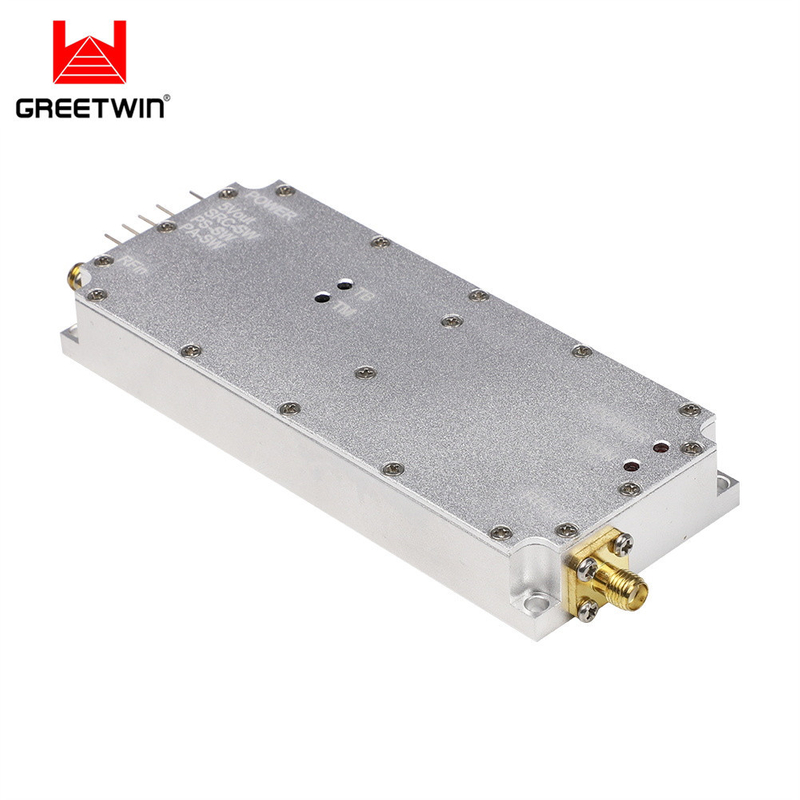

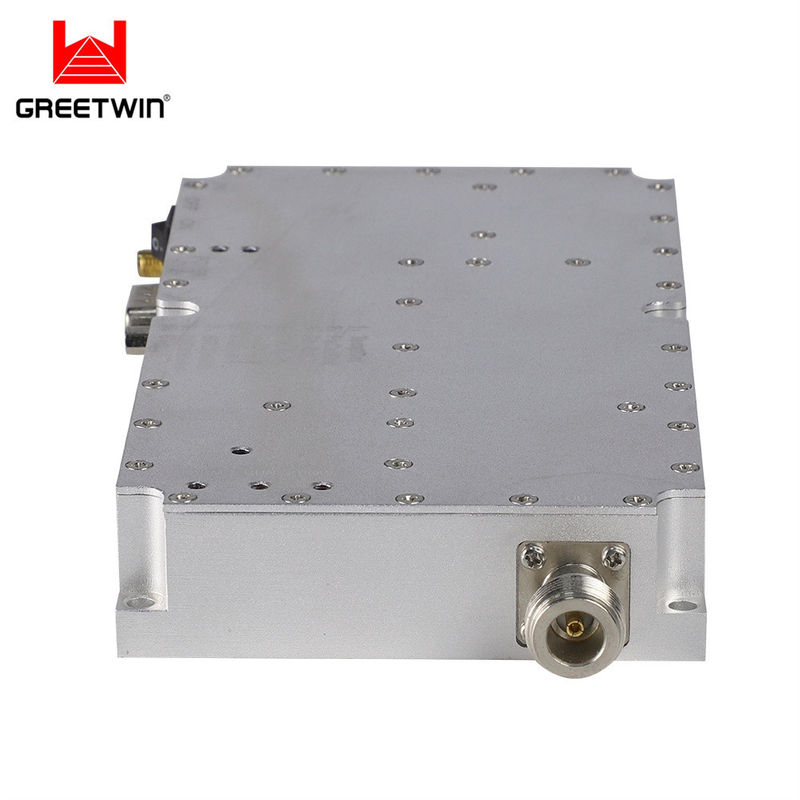

5W Jammer Module Mobile Phone Signal GPS Glonass Galileo WiFi GSM UHF Module
Feature of Wifi signal jammer module:
1.Output power is optional and the frequency bands including 20MHz to 6GHz with 5W/10W/20W/50W/100W/200W, etc.
2.Customized remote PC control with software to turn each jammer, each band, or the whole jammer system on/off, VSWR alarm in the wireless setup.
3.Light in weight, freight low, and convenient customs clearance.
4.The Modular Jammer is the latest and newest WiFi GSM UHF jammer. It improves the user friendliness of previous generation equipment. The programming interface and functions have been completely re-designed adding the key Selective functionality
Parameter of GPS jammer module:
| Channel | Working Frequency | Output power(±1dBm) | |
| CH1 | WIFI | 2400-2500MHz | 37dBm |
| CH2 | GPS | 1560-1610MHz | 37dBm |
| CH3 | GSM | 860-920MHz | 37dBm |
| CH4 | UHF | 433MHz | 37dBm |
| Connector Type | SMA | ||
| Signal Source | Yes | ||
| Jamming Radius | Depend on signal strength,50-500m. | ||
| Power Supply | DC 24-28V, 1.1A for one module. | ||
| Output Power | 5W | ||
| Power consumption | 30W for one module. | ||
| Main engine weight | 0.5Kg | ||
| Size | 110*47*20mm | ||
| Humidity | 30%-95% | ||
| Running temperature | -20ºC to +50ºC | ||
All the parameters of PA can be customized depend on your request, if you have any customized parameters pls contact us freely
The ET-PARFFW Series is made for General RF frequencies,which can used on RF repeater or jammers or other telecommunication usage.the output power can be from 5w to 100w or more,it has high efficiency with small size and light weight features.
Applications of signal jammer module:
Prisons, Military, School, detention house or Government buildings, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains etc.
Q1.Payment Method
T/T, Western Union, Paypal, and Credit Card are available,
and we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
*Other methods please Contact us with more details.
Q2.Delivery Date&Lead Time
| Quantity | Lead time | Delivery to American/Middle East/Asia/Europe |
| <20 pcs | 3-5 business days | 3-7 business days by DHL 5-7 business days by FedEx/UPS |
| 20-100 pcs | 7-15 business days | |
| >100 pcs | 15-24 business days |
*Click it to get the sample.
Q3. Can I customize frequencies?
Yes, we can customize 2G/3G/4G/5G/LoJack 173MHz, VHF, UHF, Walkie-talkie, interphone, 433MHz,315MHz, 868MHz, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, UMTS,3G,4G, LTE 700, LTE 800, LTE 2300, LTE 2600, GPS L1, GPS L2, Galileo, Compass, Glonass, WIFI, Bluetooth, WIMAX, UAV, Drone, 5.8G, etc.
Q4. What should I do if I don't know about frequency in my country?
Please feel free to Contact us with your inquiry, we will find the frequency you need and address your problems.
360° Full View of Factory Evaluation
5W Jammer Module Mobile Phone Signal GPS Glonass Galileo WiFi GSM UHF Module
Feature of Wifi signal jammer module:
1.Output power is optional and the frequency bands including 20MHz to 6GHz with 5W/10W/20W/50W/100W/200W, etc.
2.Customized remote PC control with software to turn each jammer, each band, or the whole jammer system on/off, VSWR alarm in the wireless setup.
3.Light in weight, freight low, and convenient customs clearance.
4.The Modular Jammer is the latest and newest WiFi GSM UHF jammer. It improves the user friendliness of previous generation equipment. The programming interface and functions have been completely re-designed adding the key Selective functionality
Parameter of GPS jammer module:
| Channel | Working Frequency | Output power(±1dBm) | |
| CH1 | WIFI | 2400-2500MHz | 37dBm |
| CH2 | GPS | 1560-1610MHz | 37dBm |
| CH3 | GSM | 860-920MHz | 37dBm |
| CH4 | UHF | 433MHz | 37dBm |
| Connector Type | SMA | ||
| Signal Source | Yes | ||
| Jamming Radius | Depend on signal strength,50-500m. | ||
| Power Supply | DC 24-28V, 1.1A for one module. | ||
| Output Power | 5W | ||
| Power consumption | 30W for one module. | ||
| Main engine weight | 0.5Kg | ||
| Size | 110*47*20mm | ||
| Humidity | 30%-95% | ||
| Running temperature | -20ºC to +50ºC | ||
All the parameters of PA can be customized depend on your request, if you have any customized parameters pls contact us freely
The ET-PARFFW Series is made for General RF frequencies,which can used on RF repeater or jammers or other telecommunication usage.the output power can be from 5w to 100w or more,it has high efficiency with small size and light weight features.
Applications of signal jammer module:
Prisons, Military, School, detention house or Government buildings, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains etc.
Q1.Payment Method
T/T, Western Union, Paypal, and Credit Card are available,
and we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
*Other methods please Contact us with more details.
Q2.Delivery Date&Lead Time
| Quantity | Lead time | Delivery to American/Middle East/Asia/Europe |
| <20 pcs | 3-5 business days | 3-7 business days by DHL 5-7 business days by FedEx/UPS |
| 20-100 pcs | 7-15 business days | |
| >100 pcs | 15-24 business days |
*Click it to get the sample.
Q3. Can I customize frequencies?
Yes, we can customize 2G/3G/4G/5G/LoJack 173MHz, VHF, UHF, Walkie-talkie, interphone, 433MHz,315MHz, 868MHz, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, UMTS,3G,4G, LTE 700, LTE 800, LTE 2300, LTE 2600, GPS L1, GPS L2, Galileo, Compass, Glonass, WIFI, Bluetooth, WIMAX, UAV, Drone, 5.8G, etc.
Q4. What should I do if I don't know about frequency in my country?
Please feel free to Contact us with your inquiry, we will find the frequency you need and address your problems.
360° Full View of Factory Evaluation
