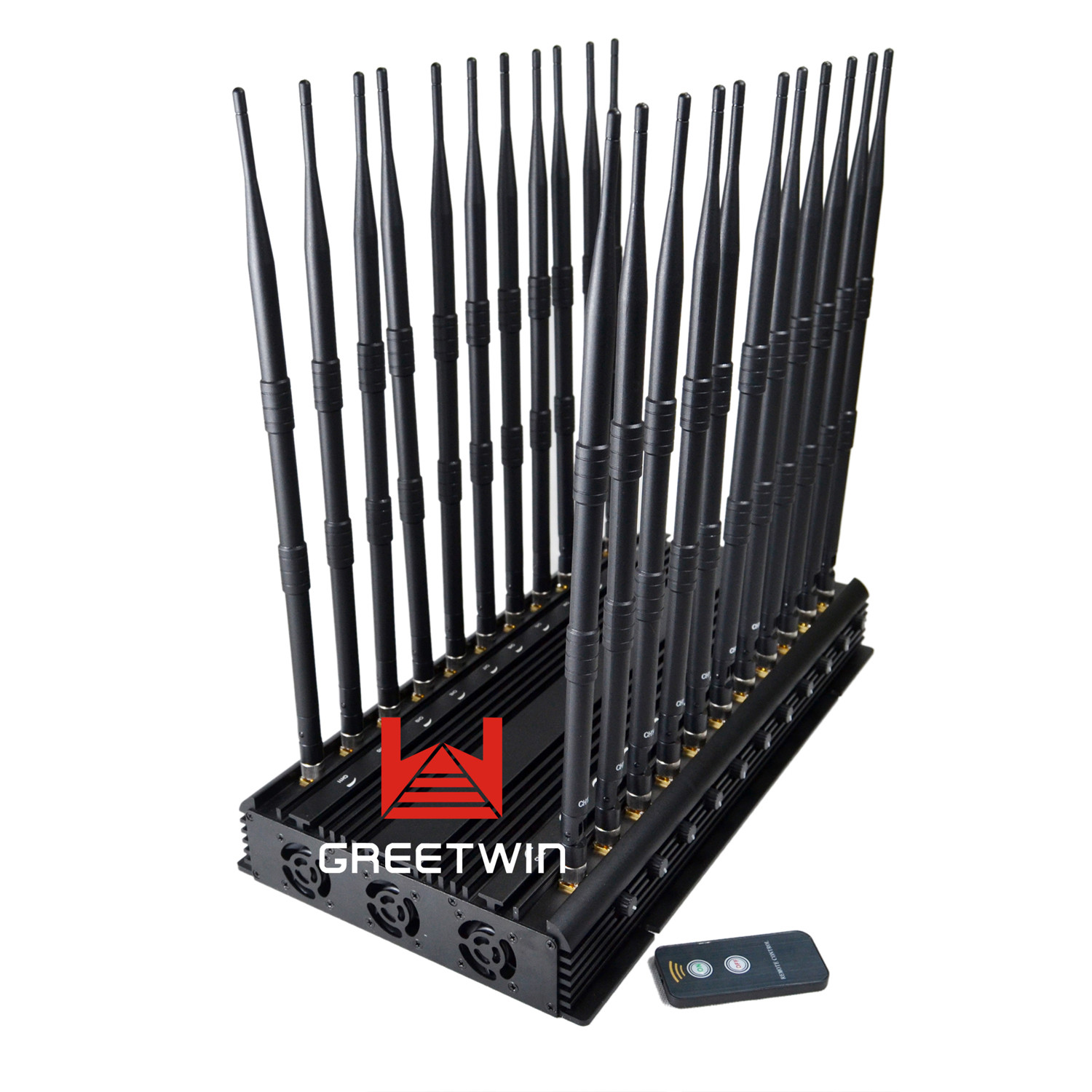

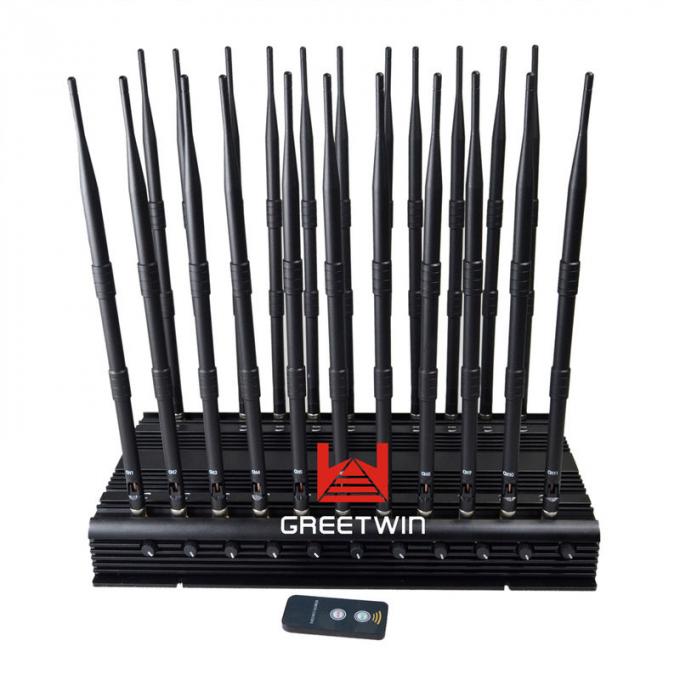

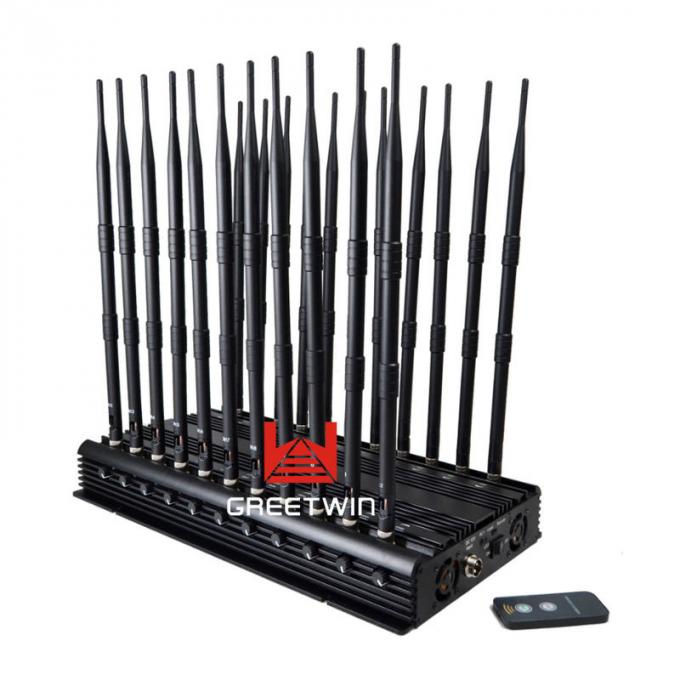

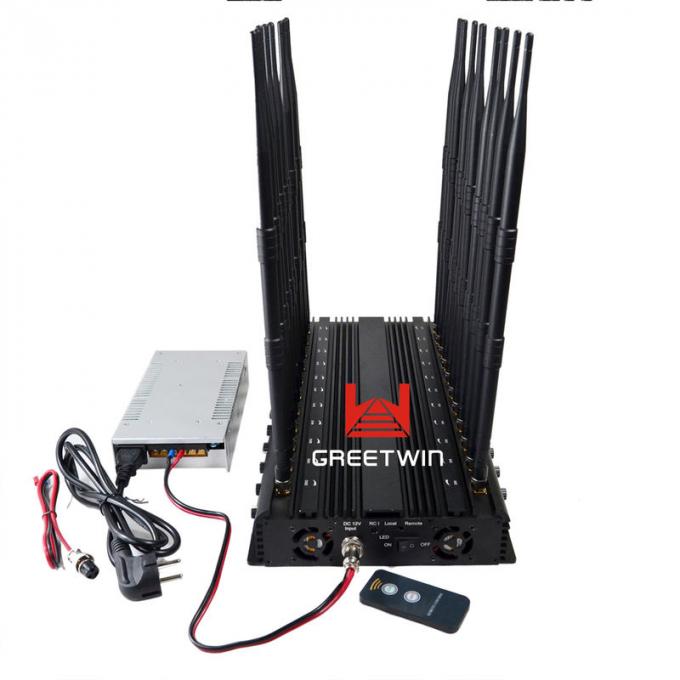

World First 22 Antennas Wireless Signal Jammer 5G LTE 2G 3G 4G Wi-Fi GPS
With Infrared Remote Control Turn ON /OFF Power
Wireless Signal Jammer Specification:
| Key technical specifications: GW-JA22, EU Standard | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | CDMA/RC868 | 850-894MHz | 35dbm / 3W |
| 2 | GSM | 925-960MHZ | 35dbm / 3W |
| 3 | DCS | 1805-1880MHZ | 33dbm / 2W |
| 4 | 3G | 2110-2170MHZ | 33dbm / 2W |
| 5 | 4G800 | 758-821MHZ | 35dbm / 3W |
| 6 | 4G2600 | 2570-2690MHZ | 30dbm / 1W |
| 7 | 4G2500 | 2500-2570MHZ | 30dbm / 1W |
| 8 | 4G2300 | 2300-2400MHZ | 30dbm / 1W |
| 9 | 5G 1500 | 1427-1518MHZ | 33dbm / 2W |
| 10 | 5G 3.4G | 3300-3600MHZ | 30dbm / 1W |
| 11 | 5G 3.8G | 3600-3900MHZ | 30dbm / 1W |
| 12 | 5G 4.0G | 3900-4200MHZ | 30dbm / 1W |
| 13 | WIFI 2.4G | 2400-2500MHZ | 30dbm / 1W |
| 14 | WIFI 5.2G | 4900-5500MHZ | 30dbm / 1W |
| 15 | WIFI 5.8G | 5500-5900MHZ | 30dbm / 1W |
| 16 | GPSL1 | 1570-1610Mhz | 33dbm / 2W |
| 17 | GPSL2+L5 | 1170-1280MHZ | 33dbm / 2W |
| 18 | GPSL3+L4 | 1370-1390MHZ | 33dbm / 2W |
| 19 | LOJACK | 167-175MHZ | 35dbm / 3W |
| 20 | VHF | 135-175Mhz | 35dbm / 3W |
| 21 | UHF/RC433 | 400-470MHZ | 35dbm / 3W |
| 22 | RC315 | 315MHZ | 35dbm / 3W |
| Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V | |||
| Dimensions: (length ,width, height) 450x 238x 60mm(not Include Antenna) | |||
| Packing size: 55*44*15cm Net weight: 7kg Gross weight: 8.0kg | |||
| Total power:42W Shielding radius: (2-40) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters | |||
| Warranty: one year from delivery date | |||
Wireless Signal Jammer Advantages:
Full bands 22 chancel design, Customized for special frequency range
High output power, Total up to: 45W , jamming up to 40m (Still depends on the strength signal in given area)
External Omni-directional antennas all the TX frequency covered down link only
With Car storage battery Charger DC12V can be used in car
Built-in good cooling system inside, Working non-stopped
Can adjust or turn off any single band without influencing the other bands operation
2-5meters with Infrared Remote Control Turn ON /OFF Power
OEM Customized Service
Silkscreen OEM service can be offered
Wireless Signal Jammer Application:
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
