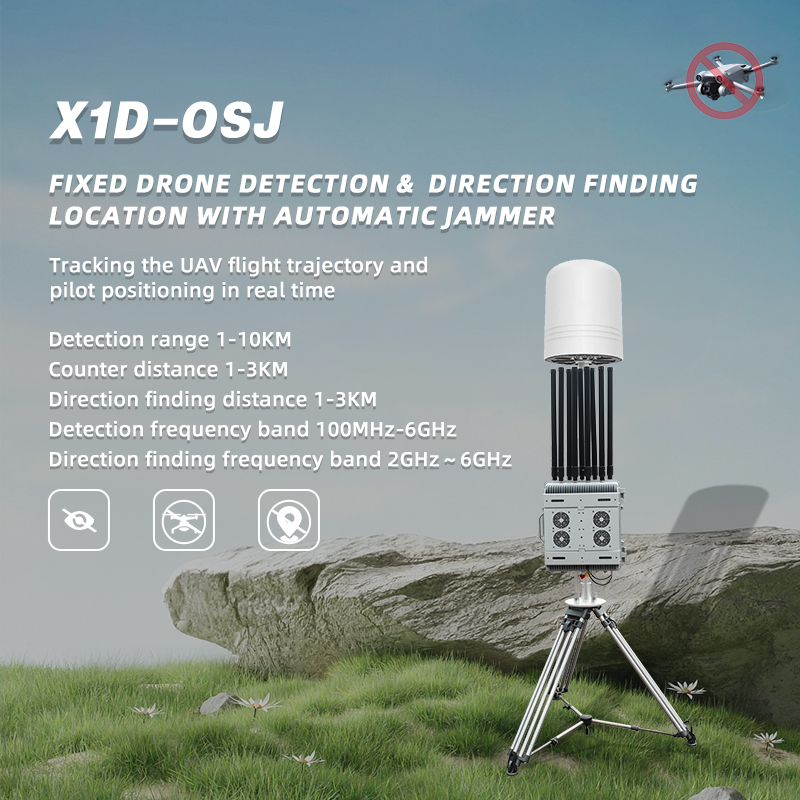

X1D-OSJ is a drone detector with drone intrusion alarm, identification, direction-finding and networking location capabilities. One signal device detects and finds drone direction. Multiple XlDs network to locate drones via TDOA (time difference of arrival) algorithm. It emits no signal which makes it interfer-ence-free and suitable for urban environ-ment.
This product mainly consists of a device host, power adapter, network cable, router, bracket, and five parts, as shown in the table below:
Number | Name | Quantity | Unit |
1 | Device host | 1 | Pcs |
2 | Ac adapter | 1 | Pcs |
3 | Internet cable | 1 | Pcs |
4 | Router | 1 | Pcs |
5 | Device bracket | 1 | Pcs |
Drone positioning：Multiple XlDs network to locate drone.
Direction finding: A single station can provide direction finding for the target drone, and the electronic map presents real-time drone azimuth information. It can simultaneously detect at least 3 drones.
Spectral scanning: 100MHz~6GHz spectral scanning, supporting display of spectrograms and waterfall plots.
Abnormal signal identification:The system can identify abnormal signals based on the spectrum scanning results and display them in the list to assist security personnel in handling abnormal signals.
Intrusion alarm: When the device detects a drone intrusion, it will sound or light an alarm.
Detection and Jamming linkage: It can link jamming or deception devices to deal with targets.
Scale networking: Support grid based deployment of multiple devices to meet large-scale coverage.
Trajectory playback: Supports drone flight trajectory playback, assisting security personnel in analyzing historical drone flight data.
Detection Record: The detection record list can retain historical detection records, including multi-dimensional information such as drone serial number, model, frequency, etc.
Electronic map: Switching electronic maps, including Amap, Baidu, and Google (offline).
Standard API interface: The device has an API interface that can upload data to a specified system.
Integrated design: The equipment adopts an integrated design, which is easy to install.
Number | Project | Parameter | Remarks |
1 | Detection frequency band | 70MHz～6GHz | |
2 | Detection distance | 3～8km | |
3 | Number of detection targets | ≥35 sorties | meanwhile |
4 | Detection mode | 360°Passive detection | |
5 | Direction finding frequency band | 2GHz～6GHz | |
6 | Direction finding distance | ≥3km | |
7 | Number of direction finding targets | Not less than 3 sorties | meanwhile |
8 | Directional accuracy | ～10° | |
9 | DF refresh rate | 10-30 times/minute | |
10 | positioning accuracy | ≤20m | |
11 | Number of positioning trajectories | ≥5 sorties | meanwhile |
12 | Scan spectrum range | 100MHz～6GHz | |
13 | Detecting and identifying drone models | Common brands of drones such as DJI, Autel, Fimi, Dahua, and Yuneec, as well as most domestically produced models such as walkthrough and WiFi machines on the market |
Drone Jammer:
Channel | Working frequency | Output power(±1.5dBm) | |
5.8G | 5725-5850MHz | 47dBm （50W） | |
5.2G | 5150-5300MHz | 47dBm （50W） | |
2.4G | 2400-2500MHz | 50dBm （100W） | |
GPS L1 | 1550-1620MHz | 47dBm （50W） | |
GPS L2 | 1170-1280MHz | 47dBm （50W） | |
FPV | 840-930MHz | 50dBm （100W） | |
FPV | 700-840MHz | 47dBm （50W） | |
433MHZ | 420-450MHz | 47dBm （50W） | |
Total 8 band, output power: 500W | |||
Power Consumption : 1200W | |||
Power supply: AC220V, DC24-28V | |||
Main engine weight : 35Kg | |||
Size: 513×462×233mm | |||
With omni antenna 8pcs , | |||
Jammer Module Number : | 8 | ||
Cooling System: | Systematic Smart Cooling System | ||
Jamming Source : | Noise Technology | ||
Humidity: 30%-95% | |||
Running temperature : -40℃ to +70℃ | |||
Omni Jamming range: 1km - 3km, according to signal density of mobile network | |||
X1D-OSJ is a drone detector with drone intrusion alarm, identification, direction-finding and networking location capabilities. One signal device detects and finds drone direction. Multiple XlDs network to locate drones via TDOA (time difference of arrival) algorithm. It emits no signal which makes it interfer-ence-free and suitable for urban environ-ment.
This product mainly consists of a device host, power adapter, network cable, router, bracket, and five parts, as shown in the table below:
Number | Name | Quantity | Unit |
1 | Device host | 1 | Pcs |
2 | Ac adapter | 1 | Pcs |
3 | Internet cable | 1 | Pcs |
4 | Router | 1 | Pcs |
5 | Device bracket | 1 | Pcs |
Drone positioning：Multiple XlDs network to locate drone.
Direction finding: A single station can provide direction finding for the target drone, and the electronic map presents real-time drone azimuth information. It can simultaneously detect at least 3 drones.
Spectral scanning: 100MHz~6GHz spectral scanning, supporting display of spectrograms and waterfall plots.
Abnormal signal identification:The system can identify abnormal signals based on the spectrum scanning results and display them in the list to assist security personnel in handling abnormal signals.
Intrusion alarm: When the device detects a drone intrusion, it will sound or light an alarm.
Detection and Jamming linkage: It can link jamming or deception devices to deal with targets.
Scale networking: Support grid based deployment of multiple devices to meet large-scale coverage.
Trajectory playback: Supports drone flight trajectory playback, assisting security personnel in analyzing historical drone flight data.
Detection Record: The detection record list can retain historical detection records, including multi-dimensional information such as drone serial number, model, frequency, etc.
Electronic map: Switching electronic maps, including Amap, Baidu, and Google (offline).
Standard API interface: The device has an API interface that can upload data to a specified system.
Integrated design: The equipment adopts an integrated design, which is easy to install.
Number | Project | Parameter | Remarks |
1 | Detection frequency band | 70MHz～6GHz | |
2 | Detection distance | 3～8km | |
3 | Number of detection targets | ≥35 sorties | meanwhile |
4 | Detection mode | 360°Passive detection | |
5 | Direction finding frequency band | 2GHz～6GHz | |
6 | Direction finding distance | ≥3km | |
7 | Number of direction finding targets | Not less than 3 sorties | meanwhile |
8 | Directional accuracy | ～10° | |
9 | DF refresh rate | 10-30 times/minute | |
10 | positioning accuracy | ≤20m | |
11 | Number of positioning trajectories | ≥5 sorties | meanwhile |
12 | Scan spectrum range | 100MHz～6GHz | |
13 | Detecting and identifying drone models | Common brands of drones such as DJI, Autel, Fimi, Dahua, and Yuneec, as well as most domestically produced models such as walkthrough and WiFi machines on the market |
Drone Jammer:
Channel | Working frequency | Output power(±1.5dBm) | |
5.8G | 5725-5850MHz | 47dBm （50W） | |
5.2G | 5150-5300MHz | 47dBm （50W） | |
2.4G | 2400-2500MHz | 50dBm （100W） | |
GPS L1 | 1550-1620MHz | 47dBm （50W） | |
GPS L2 | 1170-1280MHz | 47dBm （50W） | |
FPV | 840-930MHz | 50dBm （100W） | |
FPV | 700-840MHz | 47dBm （50W） | |
433MHZ | 420-450MHz | 47dBm （50W） | |
Total 8 band, output power: 500W | |||
Power Consumption : 1200W | |||
Power supply: AC220V, DC24-28V | |||
Main engine weight : 35Kg | |||
Size: 513×462×233mm | |||
With omni antenna 8pcs , | |||
Jammer Module Number : | 8 | ||
Cooling System: | Systematic Smart Cooling System | ||
Jamming Source : | Noise Technology | ||
Humidity: 30%-95% | |||
Running temperature : -40℃ to +70℃ | |||
Omni Jamming range: 1km - 3km, according to signal density of mobile network | |||
