| Quantity: | |
|---|---|
GW-UAV10TK
Greetwin
To Be Negotiated
Neutral Packing
10-20 Day
TT/LC
2000PCS
China
Greetwin
1 PC

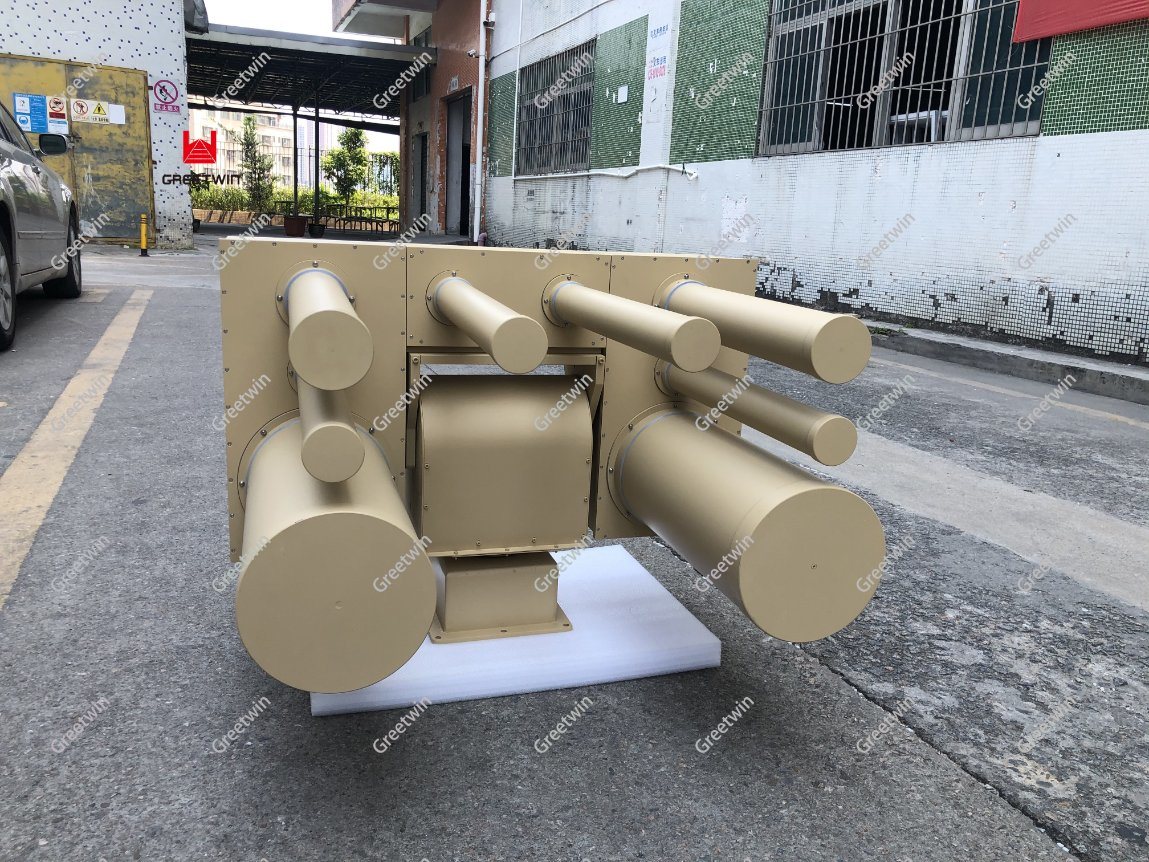

Product Description of Directional Electromagnetic Jammer
Long-distance directional jammer of UAV is the electromagnetic jam countermeasure equipment in the field of UAV prevention and control. By transmitting radio signals, the equipment forms electromagnetic signal shielding in the area covered at a specific Angle, blocking the reception of the UAV GPS navigation, remote control and map transmission signals, so that the UAV is unable to enter the control area or make it crash down. It can be used in oil and gas reservoirs, chemical industry parks, prisons, government offices and other important places, and it can also be used for large-scale activities to prevent drone invasion.
Application:
It can be used in oil and gas reservoirs, chemical industry parks, prisons, government offices and other important places, and it can also be used for large-scale activities to prevent drone invasion.
Specification:
| Name | Performance Index |
| Coverage | ≥8km |
| Interference frequency band | 430-470MHz 830-940MHz 1200-1300MHz 1560-1620MHz 2400-2500MHz 5725-5850MHz |
| Beamwidth / gain | 430-470MHz : >40°/6dBi 800-1620Mhz: >30°/8dBi 2400-2450MH >40° /11dBi 5725-5850MHz: >40°/11dBi |
| Frequency power range | 430-470MHz:53dBm 800-1620Mhz:53dBm 2400-2450MHz:50dBm 5725-5850MHz:50dBm |
| Type of transmitting antenna | helical antenna |
| Maintenance | With power-on self-inspection and fault reporting function |
| Spin velocity | Level 0.01°~30° / S; Pitch of 0.01°~10° / S (continuous variable speed) |
| Angle of rotation | Horizontal 360° for continuous rotation; Pitch pitch-10°~70°; |
| Presetting bit | 200 |
| Positioning accuracy | ±0.1° |
| Repeatability precision | ±0.1° |
| Presetting bit | support |
| CI | RJ45 |
| Complete power consumption | 5,000 W (including cloud platform and jammer) |
| Weight | 150kg (including cloud platform and jammer) |
| Carrying mode | Top load / side load |
| Driving mode | Turbine worm drive |
| Levels of protection | IP66 |
| Work, temperature | -20ºC~+70ºC |
| Storage temperature | -40ºC~+75ºC |
| Relative humidity | Average monthly maximum relative humidity is 95% (average monthly minimum temperature is 25ºC) |
| Above sea level | ≤2500m |
| Power supply, conditions | 220V 50Hz |
| Vibration and impact | GJB150.16A -2009;GJB150.18A-2009 |
