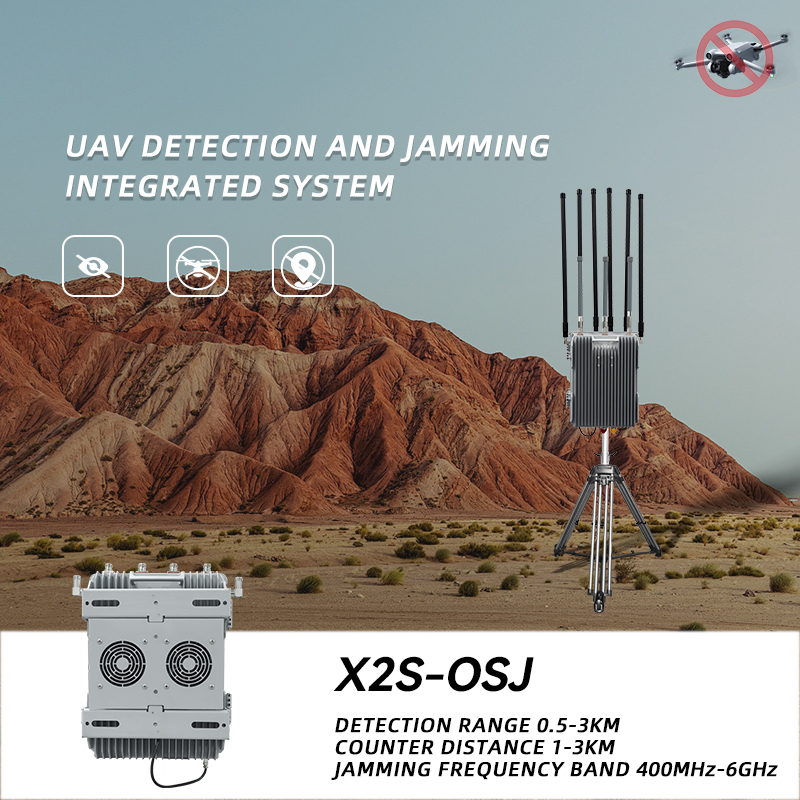

Detection And Jamming Integrate System 1-5km Detection 1-3km Jamming Counter System
Model: GW-UAV-X2S
Monitor the surrounding drone signals in real time and detect drones in advance;
Work modes: unattended and manual.
V. Drone detection introduction
The UAV detection module is used as a UAV detection and processing platform for UAV detection and identification. Its principle is based on spectrum sensing and artificial intelligence technology to identify and classify the UAV's flight control link and image transmission link.
1. Features
1) Small and light, easy to install;
2) Passive detection, no electromagnetic environmental pollution, environmentally friendly;
3) Real-time detection of UAV signals in the environment, and early warning of UAV intrusion;
4) Modular design, strong scalability and independent operation
6) The sensitivity, attack duration and RTC time of the device can be configured and queried;
7) Output signals to control the countermeasure equipment, and can control the duration of signal transmission, so as to ensure the continuous strike time of the countermeasure equipment;
10) When the equipment fails, the corresponding error code will be displayed to remind the user of the cause of the error, so as to quickly troubleshoot.
2. Specification:
| Number | Index | Parameter | Notes | |
| 1 | Detect drone types | DJI series drones, traversing drones, and DIY image transmission drones | ||
| 2 | Detection frequency band | 860-930MHz , 1.2G,1.4GHz,2.4GHz,5.2GHz, 5.8G | ||
| 3 | Detection distance | distance(m) | Antenna gain(dBi) | The target aircraft is DJI MAVIC air2 |
| 1-5km | 3-5 | |||
| 4 | Volume | 167mm*83mm*42mm(L*W*H) | ||
| 5 | Weight | (500±5)g | Without antenna | |
| 6 | Protection level | IP40 | ||
| 7 | Working temperature | -20 ~ +60ºC | ||
| 8 | Identify response time | ≤5s | ||
| 9 | Supply voltage range | 9-36V | ||
| 10 | Power dissipation | 5.5±0.5W | ||
VI. Drone Jammer introduction
Drone Jammer is the ultimate outdoor anti-drone solution. It's safe, simple to operate and can be installed at houses, offices, airports or important places easily. The device uses focused electronic counter measures to block the drone's control, GPS and video signals while minimizing the impact on other local devices. It comes with Omni directional antennas to disrupt 7 frequencies used by the majority of commercial drones. With a radius range of up to 3 km. With multiple power outputs the operator can choose if they want the drone to return to home or land. The device does no harm to the drone or its operator. Most commercial drones use 2.4GHz or 5.8GHz for their control and video transmission frequencies.
Technical Parameters:
| Channel | Working frequency | Output power(±1.5dBm) |
| 2.4G | 2400-2500MHz | 51dBm (100W) |
| 2.4G | 2400-2500MHz | 47dBm (50W) |
| 5.8G | 5725-5850MHz | 47dBm (50W) |
| 5.8G | 5725-5850MHz | 47dBm (50W) |
| GPS L1 | 1550-1620MHz | 47dBm (50W) |
| 5.2G | 5150-5350MHz | 47dBm (50W) |
| GPS L2 | 1170-1280MHz | 47dBm (50W) |
| 900 | 868-930MHz | 47dBm (50W) |
| remote | 433MHz | 47dBm (50w) |
| Total 9 band, output power:500W | ||
| Power Consumption : 1000W | ||
| Power supply: AC220V, DC24-28V | ||
| Main engine weight : 45Kg | ||
Detection range 1-5 km, Jamming range: 1-3km.
It can detect more than 10 drones at the same time;
Counter multiple targets at the same time;
The system exhibits a modular architecture combining the functionalities of a portable drone detector and an rf drone detector into a lightweight unit that facilitates flexible deployment. Its compact, ruggedized casing supports easy installation across various environments, from fixed posts to mobile security units. The scalable design allows additional modules to be integrated seamlessly, enhancing detection ranges or expanding jamming capabilities while maintaining system compatibility. This approach ensures adaptability to evolving threat landscapes and operational requirements without compromising system integrity or usability.
Performance-oriented, the drone detector device emphasizes fast detection and immediate countermeasures, simplifying complex operations for users with an intuitive control system. Automated threat responses reduce operator workload while manual overrides permit situational judgement where necessary. Portability combined with low power consumption ensures extended field operation, making it practical for both temporary deployments and continuous use. By delivering accurate alerts with minimal false positives, it instills confidence in security teams managing sensitive airspaces, strengthening their overall drone risk management strategies.
In industrial facilities and power plants, the presence of unauthorized drones can threaten safety and operational secrecy. Deploying this fpv drone detector and portable drone detector system provides early warnings of aerial incursions, enabling security personnel to respond swiftly. Its rf drone detector technology ensures detection across multiple frequencies commonly used by commercial drones. Integration into existing surveillance and alarm systems allows for centralized monitoring and coordinated countermeasures, adhering to compliance mandates for critical infrastructure protection while minimizing operational disruption.
Airports face unique challenges due to their open environments and strict safety regulations. Utilizing this drone detector device allows air traffic management to detect and disrupt unauthorized drone activity within controlled airspace effectively. The combination of detection and jamming extends protective coverage, preventing potential collisions or security breaches. Its compact and reliable design supports installation on perimeter towers or mobile units for tactical flexibility. The system conforms to aviation standards, facilitating seamless workflow integration with security protocols and ensuring uninterrupted airport operations.
FAQ
What types of drones can your system detect and jam?
Our system detects various drones, including the DJI series, traversing drones, and DIY image transmission drones. Using advanced spectrum sensing and AI, the fpv drone detector accurately identifies and jams unauthorized UAVs across multiple frequency bands.
Is your detection and jamming system suitable for portable or fixed installation?
The system features a lightweight and modular design, making it ideal for easy deployment and scalability. Whether you need a portable drone detector for flexible use or a fixed setup, our product supports both unattended and manual operation modes.
How do you ensure the detection accuracy and response time of your drone detector device?
We apply sophisticated AI algorithms combined with real-time spectrum analysis, enabling our drone detector device to identify threats within 1-5 km detection range with a response time of 5 seconds or less. This ensures rapid and reliable countermeasures.
What maintenance and troubleshooting support do you provide for your detection and jamming integrate system?
Our system includes error code displays for swift diagnostics and maintenance. We offer comprehensive technical support to help you configure sensitivity, control jamming duration, and carry out regular upkeep to ensure continuous performance of your fpv detector.
