| Quantity: | |
|---|---|
GW-UAV108
GREETWIN
830X370X240mm
7 Business days
10000
China
GREETWIN
SGS, ISO9001
GW-UAV108
1PC

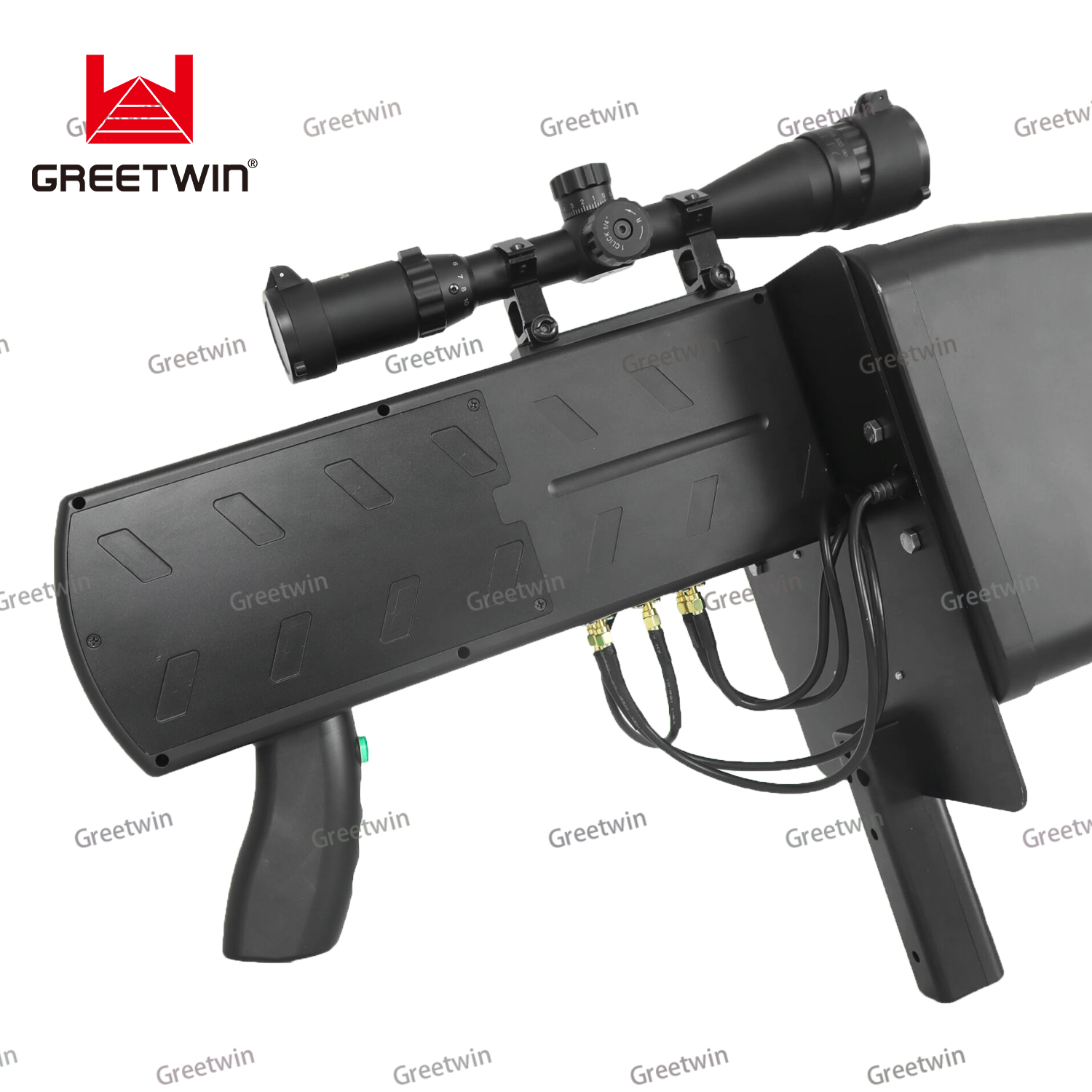

Portable light Drone Jammer.
Built-in high gain directional antenna, Built 5 sets of independently operated RF working unit, can choose to on/off GPS to drive the drone or force the drone to land, can be transmitted shielding interference signals to the surrounding 35-degree angle, jamming range (1500-2000m) can be comprehensive and stable uninterrupted shielding of the 900MHz, GPSL1, GPSL2, WIFI 2.4G, 433MHz, 5.2G and 5.8G bands in the UAV frequency band.
Feature:
1. Replaceable battery design, operating time 50-60 minutes,
2. Higher gain antenna 15dBi
3. Strong jamming range, 1500-2000meters
4. Inner cooling fan design, Device work continuously
5. Split modular design.
Antenna & Main unit can assemble/disassemble easily.
6. The split design is easy for clearance at customs.
7. 16 x telescope, Anti-vibration, Easy to spot and target drones
Parameter
Channel | Working Frequency | Output power(±1.5dBm) | |
CH1 | 2.4G | 2400-2485MHz | 45 dBm |
CH2 | 2.4G | 2400-2485MHz | 45 dBm |
CH3 | 5.8G | 5725-5850MHz | 44 dBm |
CH4 | GPSL1 | 1560-1620MHZ | 45 dBm |
CH5 | 900MHz | 860-930MHz | 41 dBm |
Power supply mode | Inside battery: 24V, 8.5A; Or External battery | ||
Battery working time | 40-50 minutes | ||
Working temperature | -20ºC to +55ºC | ||
Total Output Power | 125W | ||
Power consumption | 250W | ||
Weight | 7.3KG, Package Weight: 22KG | ||
Size | 830X370X240mm | ||
Directional Antenna | 15dBi Gain | ||
