| Quantity: | |
|---|---|

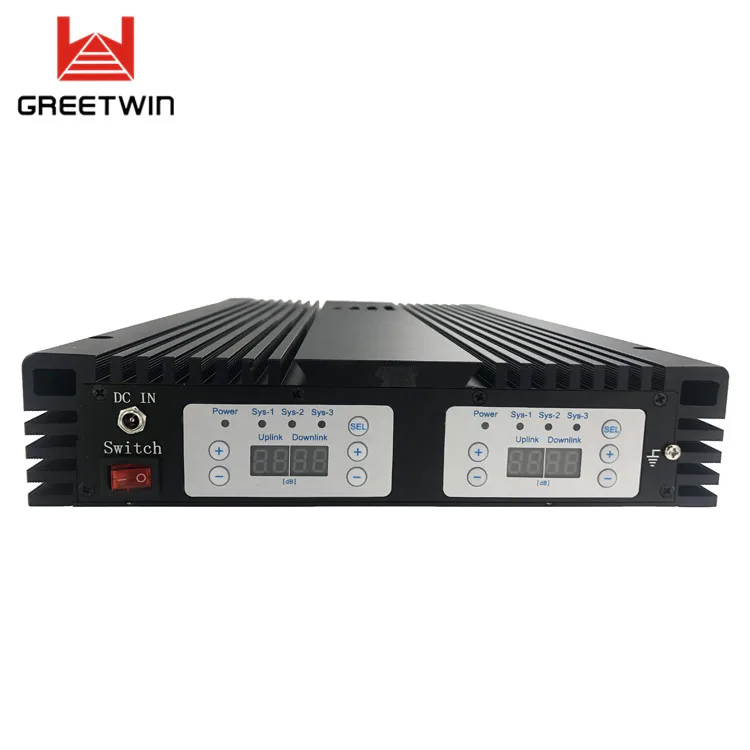

GW-27EDWL
Greetwin
$470.80
Wooden Case with PE Foam
5-7 Working Days After Received Payment
T/T, L/C, Western Union, MoneyGram
5000pcs per Month
Shenzhen
GREETWIN
CE, RoHS
GW-27EDWL
1 Piece
Frequency Range | Uplink | Downlink | |||
EGSM900+1800MHz +WCDMA+LTE2600 | 880 - 915/1710 - 1785/ 1920 - 1980/2500 - 2570MHz | 925 - 960/1805-1880/ 2110 - 2170/2620 - 2690MHz | |||
Max. Gain | 75dB+2dB | 80dB+2dB | |||
Max. Output Power | 23dBm+2dBm | 27dBm+2dBm | |||
Bandwidth | Wide Band | ||||
Manual Gain Control | 31dB / 1dB Step | ||||
ALC | >20dB | ||||
Ripple in Band | 8dB | ||||
Noise Figure | ≤ 6dB | ||||
VSWR | ≤ 2.0 | ||||
Intermodulation | ≤ -40dBc | ||||
Spurious Emission | 9KHz~1GHz | ≤ -36dBm | |||
1~12.75GHz | ≤ -30dBm | ||||
Time Delay | ≤ 1.5 μs | ||||
Frequency stability | ≤ 0.01ppm | ||||
MTBF | > 50000 hours | ||||
Impedance | 50 ohm | ||||
Power Supply | AC 90-264V,DC 10V/10A | ||||
Power LED | Power indicator | ||||
Alarm LED | Red | Self-oscillation or Strong input signal | |||
Green | Normal | ||||
Mechanical Specification | |||||
RF Connector | N-Female | ||||
Switch | Power Switch | ||||
Cooling | Heatsink Convection cooling | ||||
Humidity | < 90% | ||||
Operating Temperature | -10°C ~ +55°C | ||||
Environment Conditions | IP40 | ||||
Installation Type | Wall Installation | ||||
Size | 460mm*350mm*163mm | ||||
Weight | < 15Kg | ||||
