GW-UAV-102P
Greetwin
US $1,667.5-2,083.3 / Piece
Neutral Packing
5-7 Day
TT/LC
2000PCS
China
Greetwin
1 PC

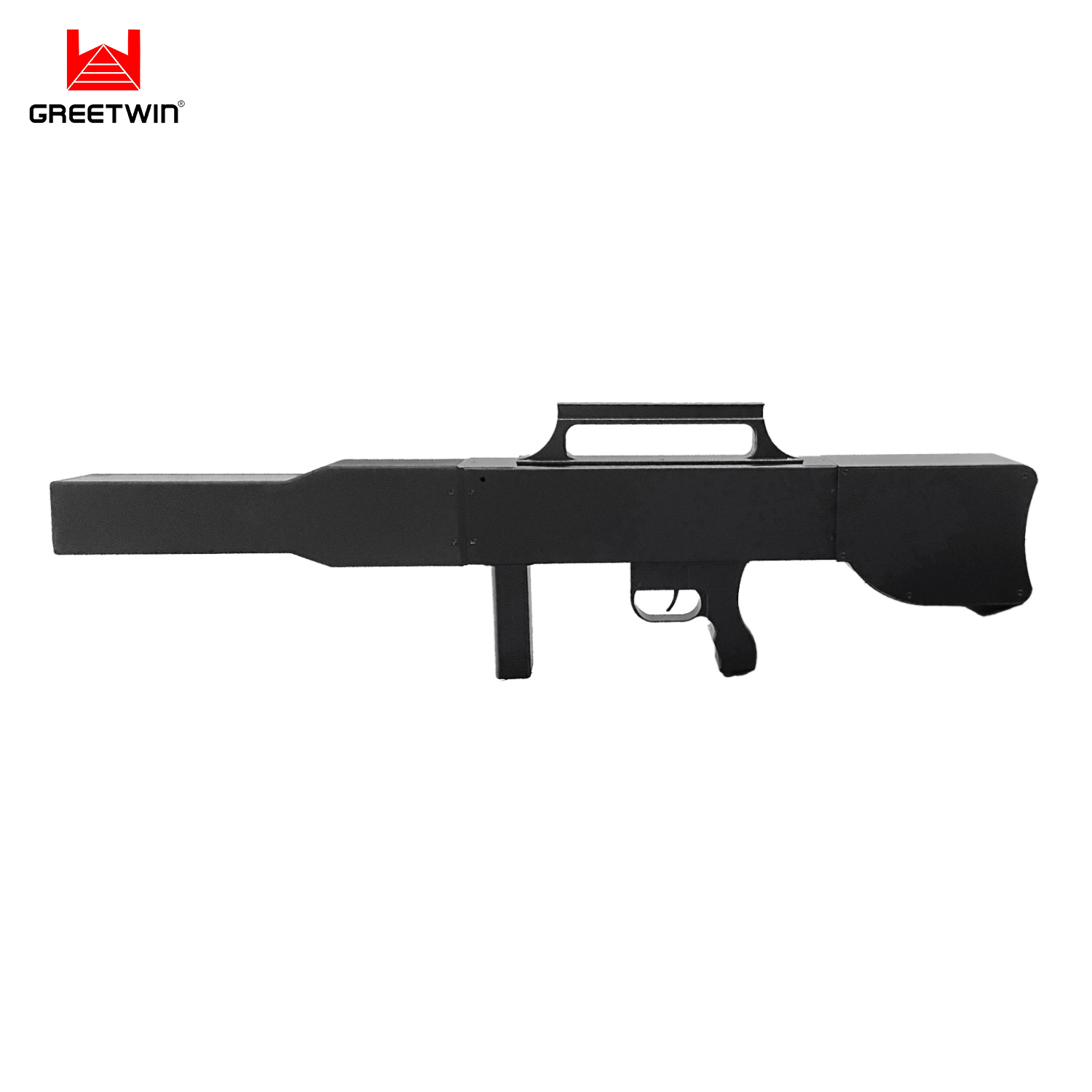

Portable light Uav Drone Jammer, Built-in high gain directional antenna, Built-in 4 sets of independently operated RF working unit, can choose to on/off GPS to drive the drone or force the drone to land, can be transmitted shielding interference signals to the surrounding 45-degree angle, Coverage (500-1200m) can be comprehensive and stable uninterrupted shielding of the 900MHz GPSL1, WIFI 2.4G, and 5.8G bands in the UAV frequency band.
Parameter
| Channel | Working Frequency | Output power(±1dBm) | |
| CH1 | 2.4G | 2400-2485MHz | 43 dBm |
| CH2 | 2.4G | 2400-2485MHz | 43 dBm |
| CH3 | 5.8G | 5725-5850MHz | 43 dBm |
| CH4 | GPSL1, Glonass, BDS | 1575.4±2.5MHZ(1.5G-GPS) 1602±5MHZ(1.5G-GLONASS) 1561±2.5MHZ(BDS) | 43 dBm |
| CH5 | 900MHz | 860-930MHz | 43 dBm |
| Power supply mode | Inside battery: 28V, 7.5A; Or External battery | ||
| Battery working time | 30 minutes | ||
| Working temperature | -20ºC to +55ºC | ||
| Power consumption | 145W | ||
| Weight | 4.3KG, Packing Weight:11KG | ||
| Size | 277X80X51mm | ||
| Panel Antenna | 8dBi Gain | ||
| Total output power | 140W | ||
| Name | Quantity | Remarks |
| Jammer | 1 | |
| DC24V Charger | 1 | AC220V-240V Input |
| Instruction / Certificate | 1 | |
| Spare battery | Optional |
