WCDMA 2100Mhz Cellular Signal Repeater ALC ASCOM 27dBm IP40 Single Band

Quantity:
  • China

  • Greetwin

  • SGS, ISO9001,CE

  • GW-27W-asm

  • 1

  • US $ 157.2 / PC

  • Neutral Packing

  • 15work days

  • L/C, T/T

  • 2, 000PCS/Month

Greetwin ASCOM 27dBm WCDMA 2100Mhz Single Band Cellular Signal Repeater Internet Booster



Indoor Pico Repeater (Signal Booster) series is an ideal solution for small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to a BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area.

Features:

1. Cost effective solution for weak signal zones,
2. Compact size, low power consumption, easy installation, great cover.
Expansion and extention of the signal of base station.
Optimization of the quality of the signal and source
3. Cover about 900~10000 m² without block or obstruct.
4. High linear design, ALC function design, low interference to BTS.
5. Support any cellular devices (voice & data & video)
6. Wide band signal booster, or customize selective band booster.





Frequency Range Uplink Downlink
WCDMA 2100MHz 1920- 1980MHz 2110- 2170MHz
Max. Gain 75dB±2db 80dB±2db
Max. Output Power 22dBm±2dbm 27dBm±2dbm
Band width Wide Band
Manual Gain Control 31dB / 1dB Step
ALC >20db
Ripple in Band ≤ 8db
Noise Figure ≤ 6dB
VSWR ≤ 2.0
Intermodulation ≤ -40dBc
Spurious Emission 9KHz~1GHz ≤ -36dBm
  1~12.75GHz ≤ -30dBm
Time Delay ≤ 1.5 μs
Frequency stability ≤ 0.01ppm
MTBF > 50000 hours
Impedance 50 ohm
Power Supply AC 90-264V,DC 9V/5A
Power LED Power indicator
Alarm LED Red Self oscillation or Strong input signal
  Green Normal
Mechanical Specification
RF Connector N-Female
Switch Power Switch,Manual Gain Control Switch
Cooling Heatsink Convection cooling
Humidity < 90%
Operating Temperature -10°C ~ +55°C
Environment Conditions IP40
Installation Type Wall Installation
Size 250*170*53mm
Weight < 3.5Kg

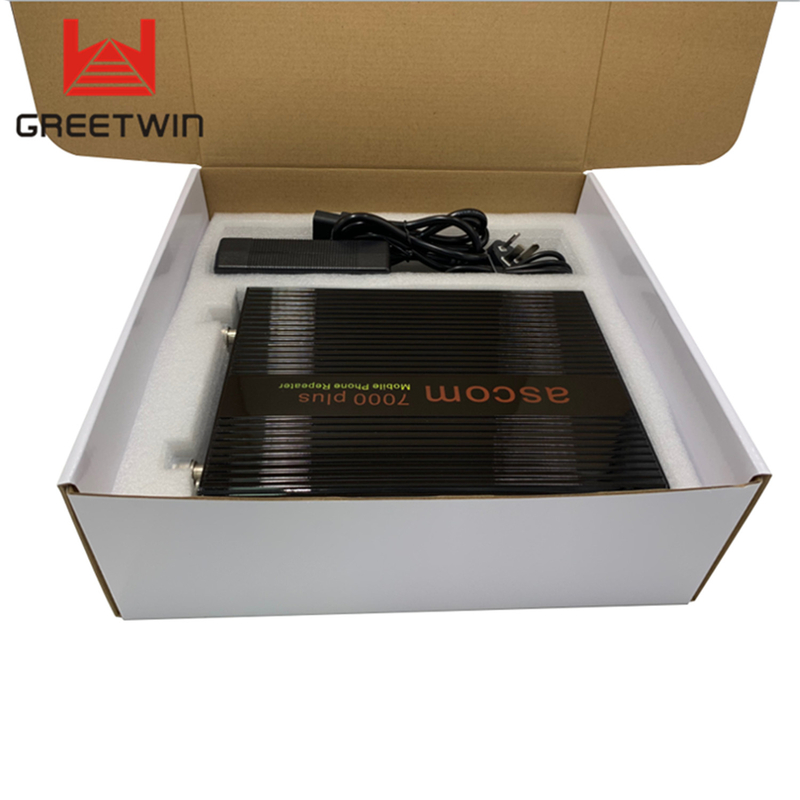

WCDMA 2100Mhz Cellular Signal Repeater ALC ASCOM 27dBm IP40 Single Band 0



WCDMA 2100Mhz Cellular Signal Repeater ALC ASCOM 27dBm IP40 Single Band 1WCDMA 2100Mhz Cellular Signal Repeater ALC ASCOM 27dBm IP40 Single Band 2
