| Quantity: | |
|---|---|
China
GREETWIN
SGS, ISO9001,CE,FCC,ROHS
GW-23HMC
1pcs
$99.9-$120.6/ PC
Carton with PE Foam
3 Working Days After Received Payment
T/T, L/C, Western Union, MoneyGram
5000pcs per Month

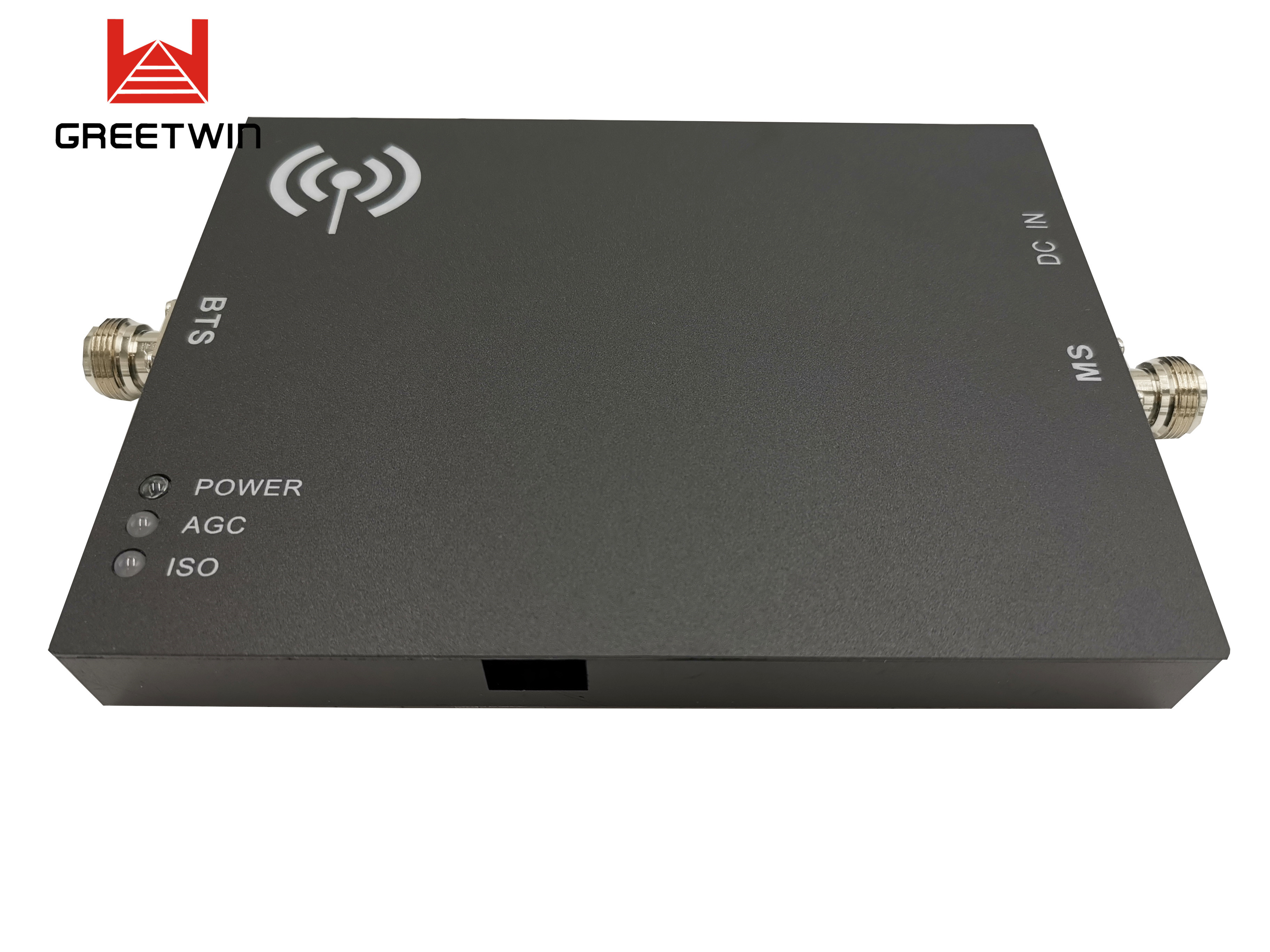

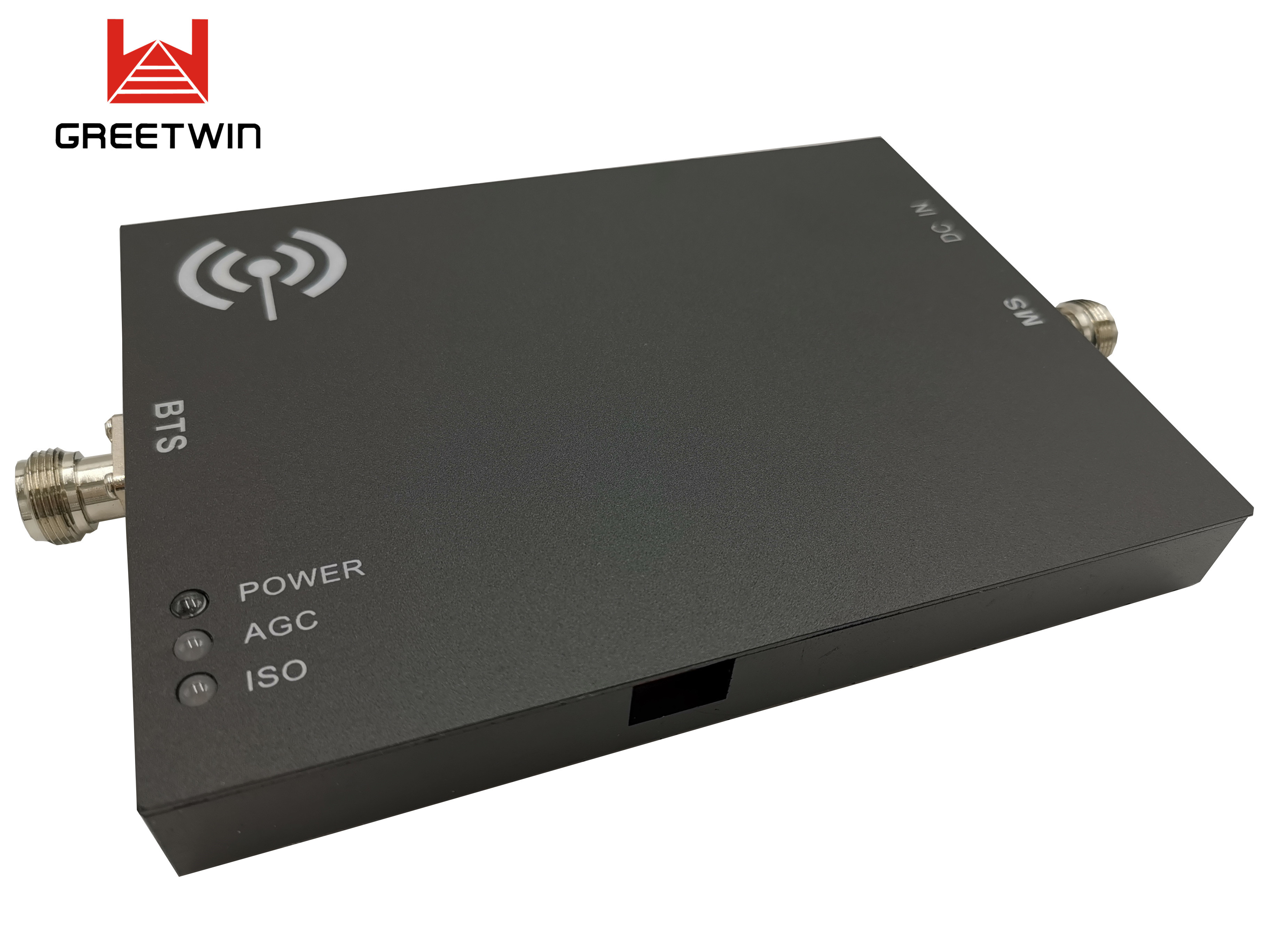

GSM 850Mhz Cell Phone Signal Boosters / Marine Signal Booster High Power
Cell Phone Signal Booster Descrption:
GREETWIN cellular signal booster boosting your cellular signal anywhere.
Signal booster kits are offered with various connector types. All kits come with cables and antennas which match the booster connector type. If you need to purchase extra extension cables or antennas please be sure to match the booster connector type.
The Marine Signal Booster Kit is the best kit for boosting cell signal in your boat or marine craft.
Eliminate dropped calls and increase data speeds with a signal booster.
Indoor Cell Phone Signal Booster series is an ideal solution for wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
The repeater improves mobile signals with no negative impact on human health.
Cell Phone Signal Booster Specification:
| Frequency Range | Uplink | Downlink | |||
| GSM850 | 824 - 849MHz | 869 - 894MHz | |||
| Max. Gain | 70dB | 75dB | |||
| Max. Output Power | 23dBm | 20dBm | |||
| Band width | Wide Band | ||||
| Manual Gain Control | 31dB / 1dB Step | ||||
| Automatic Gain Control | >30dB | ||||
| Ripple in Band | CDMA,GSM≤6dB; DCS,PCS≤8dBï¼ | ||||
| Noise Figure | ≤ 6dB | ||||
| VSWR | ≤ 2.0 | ||||
| Intermodulation Products | 9KHz~1GHz | ≤ -36dBm | |||
| 1~12.75GHz | ≤ -30dBm | ||||
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm | |||
| 1~12.75GHz | ≤ -30dBm | ||||
| Time Delay | ≤ 1.5 μs | ||||
| Frequency stability | ≤ 0.01ppm | ||||
| MTBF | > 50000 hours | ||||
| Impedance | 50 ohm | ||||
| Power Supply | AC 90-264V,DC 9V/3A | ||||
| Power LED | Power indicator | ||||
| ISO(Alarm LED) | Red | Self oscillation or Strong input signal | |||
| Green | Normal | ||||
| Mechanical Specification | |||||
| RF Connector | N-Female | ||||
| Switch | Power Switch | ||||
| Cooling | Heatsink Convection cooling | ||||
| Humidity | < 90% | ||||
| Operating Temperature | -20°C ~ +55°C | ||||
| Environment Conditions | IP40 | ||||
| Installation Type | Wall Installation | ||||
| Size | 204mm×128mm×27mm | ||||
| Weight | < 1.5Kg | ||||
Cell Phone Signal Booster Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption,
3. easy installation, great cover.
4. Expansion and extending of the signal of base station.
5. Optimization of the quality of the signal and source
6. improve mobile signals for much better phone call quality and smoother data transmission.
7. High linear design, ALC function design, low interference to BTS.
8. Support any cellular devices (voice & data & video)
9. Wide band signal booster, or customize selective band booster.
10.This booster also has an automatic Level control (ALC) feature that will reduce the output power of the booster if oscillation is detected.
Support these systems:
| Frequency Range | Uplink | Downlink |
| CDMA 450 | 452.5 - 457.5MHz | 462.5 - 467.5MHz |
| LTE700 A/B | 699- 716MHz | 729- 746MHz |
| LTE700 C | 777- 787MHz | 746- 756MHz |
| LTE700 D | 788- 798MHz | 758- 768MHz |
| LTE 800 | 832- 862MHz | 791- 821MHz |
| iDEN | 806- 824MHz | 851- 869MHz |
| CDMA 800/GSM 850 | 824- 849MHz | 869- 894MHz |
| GSM 900 | 890- 915MHz | 935- 960MHz |
| EGSM | 880 - 915MHz | 925 - 960MHz |
| AWS1700 | 1710- 1755MHz | 2110- 2155MHz |
| DCS 1800 | 1710- 1785MHz | 1805- 1880MHz |
| PCS 1900 | 1850- 1910MHz | 1930- 1990MHz |
| WCDMA/3G 2100 | 1920- 1980MHz | 2110- 2170MHz |
| LTE 2600 | 2500- 2570MHz | 2620- 2690MHz |
Cell Phone Signal Booster Advantages:
1. can customize the Cover Image on the Cell Phone Signal Booster, design private styles
2. If there are strong input signal or severe self oscillation, ISO LED is red.
3. If there are good input signal, AGC LED is green.
Standard Package:
1) AC90-264V, DC9V/3A power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
Cell Phone Signal Booster Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Indoor: Marine, houseboat,
Cell Phone Signal Booster Installation:
Installing the Marine Signal Booster Kit is very easy.
To start, mounting the Marine Omnidirectional antenna, as high up as possible on the boat or marine . Run the attached cable into the boat and connect the cable to the signal amplifier's Outside Antenna port. To the Inside Antenna port, connect the inside antenna cable and run to the inside panel antenna, which you'll mount either on the ceiling or the wall in the location where you'll be using your mobile devices . Turn on the repeater and you should immediately start receiving boosted signal.
Application Diagram:
