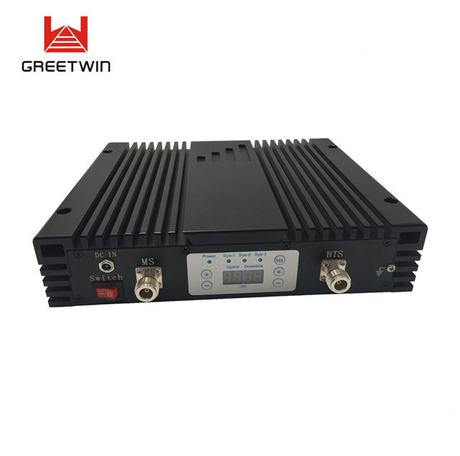

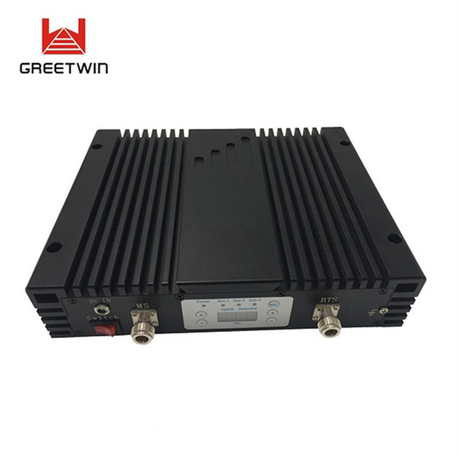

EGSM 900 LTE 2600 Cell Phone Signal Boosters 23dBm Digital Display
Signal Booster Description:
Indoor Dual Band Signal Repeater (Signal Booster) series is an ideal solution for both two wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
Please keep away from heating-equipment, because the booster will dissipate heat when working. And do not cover booster with anything that influences heat-dissipation.
Eliminate dropped calls and increase data speeds with a signal booster.
Signal Booster Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption,
3. easy installation, great cover.
4. Expansion and extending of the signal of base station.
5. Optimization of the quality of the signal and source
6. Cover about 500~3000m⊃2; without block or obstruct.
7. High linear design, ALC function design, low interference to BTS.
8. Support any cellular devices (voice & data & video)
9. Wide band signal booster, or customize selective band booster.
Signal Booster Advantages:
Digital Display Panel, Intelligent mode setting
Smart function called which can be activated via the digital display panel.
Users can choose gain and working system by LED Digital Panel.
Set the technical parameters simple and efficient, this is easier than DIP Switch.

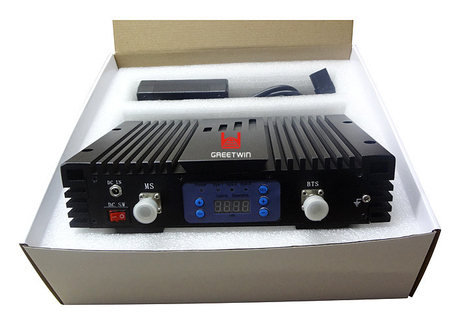

Standard Package:
1) AC90-264V, DC9V/5A power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
Recommended Accessories:
1)Donor antenna: Log Periodic Antenna (9dBi,806-960/1710-2700MHz)
2)Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
3)5D-FB coaxial cable with connecter (Cable length optional)
Signal Booster Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.
Signal Booster Specification:
| Frequency Range | Uplink | Downlink | |||
| EGSM900+ LTE2600 | 880 - 915/2500 - 2570MHz | 925 - 960/2620 - 2690MHz | |||
| Max. Gain | 70dB | 75dB | |||
| Max. Output Power | 17dBm | 23dBm | |||
| Band width | Wide Band | ||||
| Manual Gain Control | 31dB / 1dB Step | ||||
| Automatic Gain Control | >30dB | ||||
| Ripple in Band | ≤8dB | ||||
| Noise Figure | ≤ 6dB | ||||
| VSWR | ≤ 2.0 | ||||
| Intermodulation Products | 9KHz~1GHz | ≤ -36dBm | |||
| 1~12.75GHz | ≤ -30dBm | ||||
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm | |||
| 1~12.75GHz | ≤ -30dBm | ||||
| Time Delay | ≤ 1.5 μs | ||||
| Frequency stability | ≤ 0.01ppm | ||||
| MTBF | > 50000 hours | ||||
| Impedance | 50 ohm | ||||
| Power Supply | AC 90-264V,DC 9V/5A | ||||
| Power LED | Power indicator | ||||
| Alarm LED | Red | Self oscillation or Strong input signal | |||
| Green | Normal | ||||
| Mechanical Specification | |||||
| RF Connector | N-Female | ||||
| Switch | Power Switch | ||||
| Cooling | Heatsink Convection cooling | ||||
| Humidity | < 90% | ||||
| Operating Temperature | -20°C ~ +55°C | ||||
| Environment Conditions | IP40 | ||||
| Installation Type | Wall Installation | ||||
| Size | 268mm*58mm*189mm | ||||
| Weight | < 3.5Kg | ||||
Support Dual Band type:
| Frequency Range | Uplink | Downlink |
| GSM900+DCS1800 | 890 - 915/1710 - 1785MHz | 935 - 960/1805-1880MHz |
| EGSM900+DCS1800 | 880 - 915/1710 - 1785MHz | 925 - 960/1805-1880MHz |
| GSM900+PCS1900 | 890 - 915/1850 - 1910MHz | 935 - 960/1930-1990MHz |
| GSM900+ LTE2600 | 890 - 915/2500 - 2570MHz | 935 - 960/2620 - 2690MHz |
| EGSM900+ LTE2600 | 880 - 915/2500 - 2570MHz | 925 - 960/2620 - 2690MHz |
| GSM900+WCDMA | 890 - 915/1920 - 1980MHz | 935 - 960/2110 - 2170MHz |
| EGSM900+WCDMA | 880 - 915/1920 - 1980MHz | 925 - 960/2110 - 2170MHz |
| GSM850+PCS1900 | 824 - 849/1850 - 1910MHz | 869 - 894/1930 - 1990MHz |
| GSM850+ AWS1700 | 824 - 849/1710 - 1755MHz | 869 - 894/2110 - 2155MHz |
| CDMA800+WCDMA | 824 - 849/1920 - 1980MHz | 869 - 894/2110 - 2170MHz |
| CDMA800+ DCS1800 | 824 - 849/1710 - 1785MHz | 869 - 894/1805 - 1880MHz |
| LTE700(A/B)+PCS1900 | 698 - 716/1850 - 1910MHz | 728 - 746/1930 - 1990MHz |
| LTE700(C)+PCS1900 | 777 - 787/1850 - 1910MHz | 746 - 756/1930 - 1990MHz |
| LTE700(D)+PCS1900 | 788 - 798/1850 - 1910MHz | 758 - 768/1930 - 1990MHz |
| LTE700(A/B)+AWS1700 | 698 - 716/1710 - 1755MHz | 728 - 746/2110 - 2155MHz |
| LTE700(C)+AWS1700 | 777 - 787/1710 - 1755MHz | 746 - 756/2110 - 2155MHz |
| LTE700(D)+AWS1700 | 788 - 798/1710 - 1755MHz | 758 - 768/2110 - 2155MHz |
| LTE700+LTE2600 | 703 - 748/1710 - 1755MHz | 758 - 803/2110 - 2155MHz |
| iDEN+PCS1900 | 806 - 824/1850 - 1910MHz | 851 - 869/1930 - 1990MHz |
| iDEN+AWS1700 | 806 - 824/1710 - 1755MHz | 851 - 869/2110 - 2155MHz |
| LTE800+WCDMA | 832 - 862/1920 - 1980MHz | 791 - 821/2110 - 2170MHz |
| LTE800+LTE2600 | 832 - 862/2500-2570MHz | 791 - 821/2620 - 2690MHz |
| LTE800+GSM900 | 832 - 862/890 - 915MHz | 791 - 821/935 - 960MHz |
| LTE800+EGSM900 | 832 - 862/880 - 915MHz | 791 - 821/925 - 960MHz |
| DCS1800+WCDMA | 1710 - 1785/1920-1980MHz | 1805-1880/2110-2170MHz |
| DCS1800+ LTE2600 | 1710 - 1785/2500-2570MHz | 1805-1880/2620-2690MHz |
| WCDMA+ LTE2600 | 1920-1980/2500-2570MHz | 2110-2170/2620-2690MHz |
Model:
GW-10EL, 10dBm
GW-15EL, 15dBm
GW-20EL, 20dBm
GW-23EL, 23dBm
GW-27EL, 27dBm
GW-30EL, 30dBm
Application Diagram:
