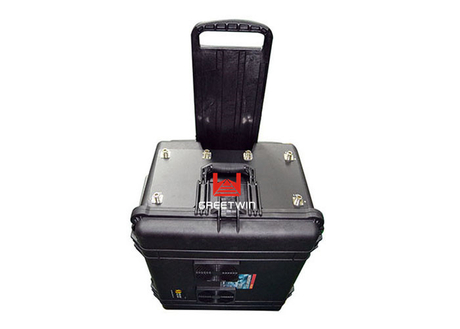

500W 8 Bands Drone Frequency Blocker , High Power Backpack Jammer With Pelican 1620 Case
Manpack Jammer Features:
IED Jammer can neutralize / prevent deadly criminal acts such as radio controlled Car Bombs, roadside bombs, ambush by remote IED attacks, assassinations, and remote controlled terrorist events. In addition to implementing High Power IED Jammers and Convoy Jammers, we have also designed and deployed facility jammers with dual functionality.
One of the 500W Portable Mobile Phone 8 Bands with Pelican case 1620 Jammer, up to 350m,Omni or Directional Antennas used. High power mobile phone jammer which are currently presented on the market.
Manpack Jammer Advantages:
Each unit can jam up to 6 frequency bands, Each frequency band is separate and with adjustable power from Max to OFF(0)
100% Safe VSWR over protection for each modular
Good cooling system with Heat sink and 30 pcs fans inside
with Pelican case 1620 ,carry out ,
Build-in Battery 27V 56Ah continue working 1.5hours,
Working status indicator for each band modular.
Manpack Jammer Package contents:
1pc Desktop Jammer
1pc AC 110 or 220V DC 12V or 27V 20A power supplier
8pcs Antennas Omni 500mm long
Manpack Jammer Additional options:
- Directional External Patch Panel Antennas
- Omni car magnetic antenna bases
Manpack Jammer APPLICATION:
Anti-terror units, Bomb squads, VIP protection, Convoys protection, Military forces, SWAT teams, Police forces, Anti-drug units, Riot-control units, Embassies protection, Roadblock protection, Checkpoint protection.
| Key technical specifications: | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | CDMA or GSM | 850-894 or 925-960MHz | 50dbm / 100W |
| 2 | PCS or DCS | 1920-1990 or 1805-1880MHz | 47dbm / 50W |
| 3 | 3G | 2110-2170MHz | 47dbm / 50W |
| 4 | 4G LTE 2600 | 2500-2690 MHz | 47dbm / 50W |
| 5 | 4G LTE 700 | 700-803 or 790-862MHz | 50dbm / 100W |
| 6 | Wi-Fi 2.4G+4G2300 | 2345-2500MHz | 47dbm / 50W |
| The below frequencies you can instead of above one to combined 6 bands | |||
| Option | WIFI5.2G | 5100-5500MHz | 47dbm / 50W |
| Wi-Fi 5.8G | 5500-5580MHz | 47dbm / 50W | |
| WiFi3.6G | 3500-3600MHz | 47dbm / 50W | |
| GPSL1 | 1570-1580MHz | 47dbm / 50W | |
| GPSL2+L5 | 1170-1280MHz | 47dbm / 50W | |
| UHF2 | 190-300MHz | 47dbm / 50W | |
| UHF3 | 300-400MHz | 47dbm / 50W | |
| 4G1 LTE 850 | 790-862MHz | 50dbm / 100W | |
| Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC27V) Battery:27V56Ah | |||
| Dimension: (length,width, height ) 630*500*350mm(Not include antenna) | |||
| Package Size: 800 x 700 x 600mm N.W:50kg G.W:50Kg + 6kg antennas =56kg Working temperature: -30~60â | |||
| Total power:400W Shielding radius: (50--350) meters At -75dBm Still depends on the strength signal in given area Shielding radius of VHF/UHF signal should be lesser than cell phone signal | |||
| Warranty: one year from delivery date | |||
