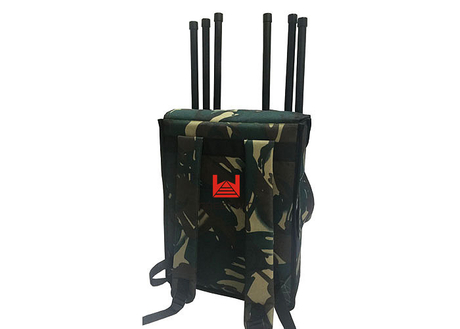

Tactical Manpack Portable Mobile Phone Signal Jammer 120 W Backpack Type
Portable Signal Jammer Introduction:
Manpack jammer GW-VIP MANPACK8,Even though communication jammers originate from battlefront technologies, illicit civil disputes can be resolved when police block communications. Combat tactics employing Tactical Jammers apply when dealing with hostage situations, domestic disputes, narcotics raids, and other all too familiar scenarios.
This is a User friendly Communication Jammer, easy to operate, and requires no special training to work. The modular configuration allows the user to choose the frequency bands according the user needs.
The GREETWIN Manpack Jammer is also used by SWAT Teams, Hostage Negotiators, and Tactical Response Agents who need a field portable Jamming system to defeat criminal communications.
Portable Signal Jammer Technical Specification:
| Output interface | Description | Shield band of frequency | RF output power( +1dBm) | |
| CH1 | LOJACK | 168-178 MHz | 41.7dBm | |
| CH2 | WCDMA 3G | 2110-2170 MHz | 41.7dBm | |
| CH3 | GSM900 | 925-960 MHz | 41.7dBm | |
| CH4 | GSM1800 /PCS 1900 | 1805-1880 MHz /1930-1990 MHz | 41.7dBm | |
| CH5 | WIFI, 2.4G | 2400-2485 MHz | 41.7dBm | |
| CH6 | LTE800 | 790-821 MHz | 41.7dBm | |
| CH7 | GPS L1 | 1570-1580 MHz | 41.7dBm | |
| CH8 | LTE 2600 | 2620-2690MHz | 41.7dBm | |
| Power supply: AC220V, DC24V | ||||
| Total Output Power: 120Watt | ||||
| Power consumption:400Watt | ||||
| Weight: 15Kg Size(length × wind × high): 320×120×430mm | ||||
| Humidity: 30%-95% Running Temperature: -20â to +55â | ||||
| Jammer Module Number | 8 | |||
| Cooling System | Systematic Smart Cooling System | |||
| System Protection | VSWR, Over-voltage | |||
| Jamming Source | Frequency Scan Technology | |||
| Antenna Type | High Gain Omni-directional Antennas | |||
| Number of Antennas | 8 | |||
| Inside Battery | 24V DC, 1.5hours; | |||
| Jamming range: 20-120m according to signal density of mobile network | ||||
Portable Signal Jammer Advantages:
1. High-power multi-band jammer, Frequency Scan technology,
2. Modular construction for easy maintenance, repair and upgrade.
3. Jamming up to 8 different jamming modules.
4. Max 120watts total RF output power.
5. AC mains or DC power.
6. Systematic Smart Cooling System.
7. The general design of the system meets military requirements.
8. Different frequency bands can be controlled independently by single switches;
9. Power Amplifiers protection design ensures the working reliability of the device
10. Can customize these frequencies AM, FM Radio, VHF, UHF, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, LTE 700, LTE 800, LTE 2300, LTE 2600, GPS, Galileo, Compass, Glonass,WIFI, WIMAX, UAV, drone, etc.
Manpack jammer GW-VIP MANPACK8 will jam Lojack 168~178MHz,1805~1880MHz,925~960MHz,
790~862MHz,2110~2170MHz,2620~2690MHz,1570~1580MHz,2400~2485MHz
Portable Signal Jammer Application:
Bomb disposal squads,
VIP protection,
Special Police (S.W.A.T)
