800m Advanced Technology UAV Jammer Drone Signal Jamming System with Portable Gun
Drone jammer provides a safe countermeasure against a wide range of drone models. It allows for a controlled management of drone payload such as explosives, with no damage to common drones models or surrounding environment due to the drones generally responding via a vertical controlled landing on the spot, or returning back to the starting point (assisting to track the operator).
Consumer and commercial drones come a dizzying array of shape, size, characteristics, features, and prices from consumer drones to military-grade weaponised drones. That means that drones can also be employed for a huge range of illegal uses including:
The portable UAV/drone jammer is our company's latest product designed by R&D department,
against the widespread use of UAV nowadays.
It disables the targeted UAV by jamming the UAV's remote-control signal and GPS signal, to force the UAV fall or return. The jamming distance reaches up to 800M.
UAV Jammer Function
Effective interference with UAV Remote-Control Signal 2400MHz, GPS signal 1500MHz, Transmission Signal 5800MHz
UAV Jammer Features
1. Signal Source: VCO technology
High integration & Stable operation.
2. highly effective power & long jamming distance
3. Portable gun type,
4.High quality tubular radiator, effective in radiating heat.
5.Import components; the moderating circuit-starting design avoids a spark,
when the device turn on/off.
6. inner batteries, can check battery capacity by LCD display
UAV Jammer Application
Mainly applied to prisons, airports, scientific research centers, detention houses, interrogation rooms, courthouses, labor camp, all kinds of military important places, forbid aerial photography by use of drone, etc
UAV Jammer Technical Parameters
| Channel | working frequency | Output power(±1dBm) | |
| CH1 | 2.4G | 2400-2485MHz | 45 dBm |
| CH2 | 5.8G | 5725-5850MHz | 43 dBm |
| CH3 | GPS L1 | 1573-1607MHz (GPS,GLONASS) | 44 dBm |
| Build-in battery | 24V,12A ( about 1h working), Check battery working by LCD display. | ||
| Signal Source | VCO technology | ||
| jamming radius | 800 - 1000m | ||
| Antennas | directional antennas | ||
| Output Power | 75W | ||
| Power consumption | 220W | ||
| Jammer weight | 5.5Kg | ||
| Packing Weight | 9.4Kg | ||
| Packing Size | 72 x 39 x 17cm | ||
| Jammer Size | 120×21×10cm | ||
| Humidity | 30%-95% | ||
| Running temperature | -20â to +50â | ||

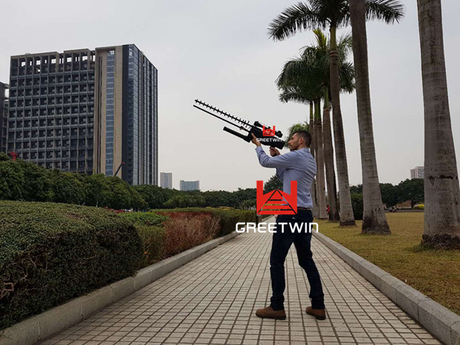

We make field test
For drone jammer.

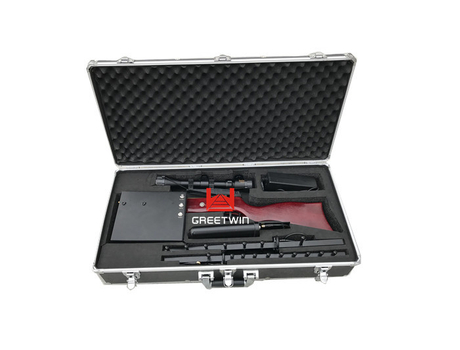

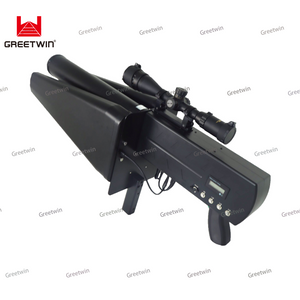

UAV Jammer Photo:
