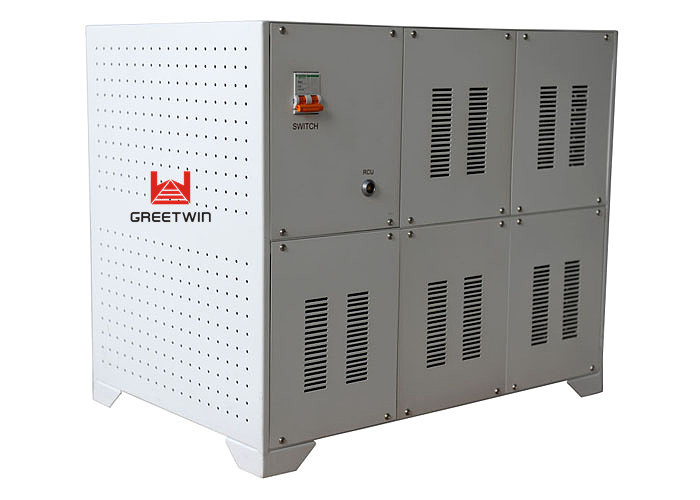

Long Distance 1000W Vehicle Mounted Jammer Interrupt Communications

China Long Distance 1000W Vehicle Mounted Jammer Interrupt Communications supplier

Large Image :  Long Distance 1000W Vehicle Mounted Jammer Interrupt Communications

Product Details:

Place of Origin: China
Brand Name: GREETWIN
Certification: SGS, ISO9001
Model Number: GW-2500VJ11

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden Case with PE Foam
Delivery Time: 10 Working Days After Received Payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 500pcs per Month
Contact Now
Detailed Product Description
Features: Spy Camera, WIMAX, UAV, Drone, 5.8G Product Name: 1000W Vehicle Mounted Jammer
Application: Bomb Jammer For Interrupt Communications Operating Temp: -20℃ To +55℃
Operating Humidity: 5% - 95% Jamming Range: 50 - 800meters,depend On Signal Strength Of Mobile Network
Frequency: 20-2500MHz Internal Modulation: FM Hopping Frequency

Long Distance 1000W Vehicle Mounted Jammer Interrupt Communications





Description:

Bomb jammers are devices which broadcast a signal on one or more radio frequencies. Bomb jamming has the effect of rendering unusable other radio transmissions on the same frequencies. The bomb jammer is designed to prevent radio-activated bombs, also known as radio-controlled improvised explosive devices (RCIEDs) from detonating.



Bomb jammers interrupt enemy communications to bombs and RCIEDs by broadcasting radio transmissions on the most common frequencies used by such devices. Bomb jamming is critical in many tactical scenarios, such as preventing the remote detonation of road-side bombs. Bomb jammers are frequently deployed in public areas, SWAT sceanrios and in vehicles for mobile convoy protection.



Bomb jamming is critical in many situations, and is a key tool in the hands of law enforcement, military, VIP protection and anti-terror applications.

Can customize these frequencies AM, FM Radio, LoJack 173MHz, VHF, UHF, Walkie-talkie, interphone, Wireless Toys , FM Radio, Remote Control, 27MHz, 49MHz, 433MHz,315MHz, 868MHz, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS,WCDMA,UMTS,3G,4G,LTE 700, LTE 800, LTE 2300, LTE 2600, GPS L1,GPSL2, Galileo, Compass, Glonass, WIFI, Bluetooth, Spy camera, WIMAX, UAV, Drone, 5.8G, etc.



Features:

  1. Equipped with an ultra-broadband frequency bands : 20-2500Mhz
  2. All frequency bands are jammed continuously and simultaneously
  3. Designed with shockproof case. Easy of mobility.
  4. Approved by Military and International Government
  5. (Optional)Integrated back-up battery system for continuous silent operation and fast start .
  6. Integrated independent "smart active" cooling system .
  7. System management (activation, control and operation) is carried out via a remote control unit which is installed (in a covert manner) inside the Driver's console unit.
  8. Provided with a on/off switch for each separate frequency band.
  9. Special RF protection shielding design to make sure the passenger and VIP's safety .
  10. Supplied to the Olympic Event and universiade.
  11. To protect military and VIP team as well as some important place from the road-side remote improvised explosive device (RCIED) attacks is becoming a global challenges and tremendous task in security fields.

The GREETWIN Jammer is designed with ultra-high RF transmission high power ,

resulting in huge coverage distance.

Its jamming system covers the RF communication frequencies from 20MHz to 2500MHz,

which are most commonly used by terrorists to detonate bombs (RCIED) continuously and simultaneously.



Specifications:

RF Characteristics
Output Power 1000 Watts
Internal Modulation FM Hopping Frequency
Signal Source VCO Synthesized
Power Supply AC110-240V, 24V or 48V DC
Modules Per Unit 11
Control ON/OFF with Switch
Monitoring Adjusted output power by DIP Switch.
Antenna External – Omni-directional for 360º
Power Amplifier Protectors Full VSWR protector
Operating hours Unlimited



Detailed Specifications:

Channel Frequency Range Output Power(±1dBm) Output Power(±1dBm)
CH1 20~108MHz Wireless Toys , FM Radio 100W
CH2 135~174MHz walkie-talkie(VHF) 100W
CH3 300-400MHz Remote Control,Drone 100W
CH4 400~470MHz walkie-talkie(UHF), car alarm 100W
CH5 851~894 MHz Cellular CDMA 100W
CH6 925 - 960MHz Cellular GSM, E-GSM 100W
CH7 1805~1920MHz Cellular DCS,PCS 100W
CH8 1930 - 1990MHz Cellular PCS 100W
CH9 2110~2170MHz Cellular WCDMA 100W
CH10 2400-2485MHz WiFi, Bluetooth, Drone 50W
CH11 1570-1580MHz GPS L1,Drone 50W

Power Supply: AC110 - 240V

Output power: 1000W
Jamming radius: 50 - 800M depending on the environment signal strength

Power Consumption: 3000W

Weight:65Kg

External Panel Antennas

Size(L×H×W):640×540×550mm

Humidity: 5%-95%
Working temp: -20’C to +55’C degree Celsius



Applications:

• Special Military Units

• Special Police Units

• VIP Protection

• Bomb Disposal

• Convoy Protection etc.



Note: All Bomb Jammers, IED Jammers, RF Signal Jammer and RCIED Jammers, including cell phone jammers and mobile phone jamming devices are sold for governmental, law enforcement and military users only.
