High Power DDS Convoy Manpack Jammer Shockproof Multi Band 3000MHz
Manpack Jammer Introduction:
Bomb Detonating and confidence leaking, resulting from Road-side Remote Control Improvised Explosive Device(RCIED) have been tremendous challenge in many parts of the world.
GREETWIN supply with High Power DDS Convoy Jamming System,Bomb jammers, Portable Rf jammer,Portable Radio Jammers,Vehicle bomb jammer,implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.

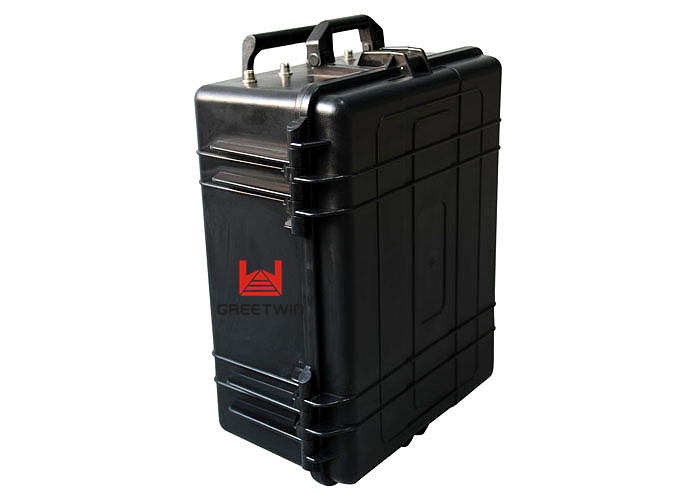

Manpack Jammer GW-VIP JAM5, full portable multi-band Jamming system, is designed with a ruggedized trolley type case,highly mobility. This device is configured with 5 different jamming modules, the jamming frequency can be more than 3000MHz. Five jamming frequency modules can be up to 250watt output power maximum.
Very easy to be installed and operated. The device can be powered by AC mains or a suitable DC power source. The general design of the system meets military requirements and international quality standards.
Manpack Jammer Advantages:
Manpack Jammer Application:
Military security forces,
bomb squads,
anti-terror units,
anti-drug units,
Manpack Jammer Technical Specification:
| Output interface | Description | Shield band of frequency | RF output power | |
| CH1 | CDMA800 | 851-894 MHz | 47dBm | |
| CH2 | WCDMA 3G | 2110-2170 MHz | 47dBm | |
| CH3 | GSM900 | 925-960 MHz | 47dBm | |
| CH4 | GSM1800 /PCS 1900 | 1805-1880 MHz /1930-1990 MHz | 47dBm | |
| CH5 | WIFI, 2.4G(Optional) | 2400-2485 MHz | 47dBm | |
| LTE800(Optional) | 790-821 MHz | |||
| GPS L1(Optional) | 1570-1580 MHz | |||
| LTE 2600(Optional) | 2620-2690MHz | |||
| Power supply: AC220V, DC24V | ||||
| Total Output Power: 250Watt | ||||
| Power consumption:750Watt | ||||
| Weight: 30Kg Size(length × wind × high):580×280×410mm | ||||
| Humidity: 30%-95% Running Temperature: -20â to +55â | ||||
| Jammer Module Number | 5 | |||
| Cooling System | Systematic Smart Cooling System | |||
| System Protection | VSWR, Over-voltage | |||
| Jamming Source | Frequency Scan Technology | |||
| Antenna Type | High Gain Omni-directional Antennas | |||
| Number of Antennas | 5 | |||
| Inside Battery (Optional) | 24V DC, 1 hour | |||
| Jamming range: 50-200m according to signal density of mobile network | ||||
GREETWIN can make All Bomb Jammers, IED Jammers, RF Signal Jammer and RCIED Jammers, cell phone jammers and mobile phone jamming devices.
