Cellular Signal Boosters Repeaters GSM900 Dual Band Wifi Repeater for Hotel

China Cellular Signal Boosters Repeaters GSM900 Dual Band Wifi Repeater for Hotel supplier

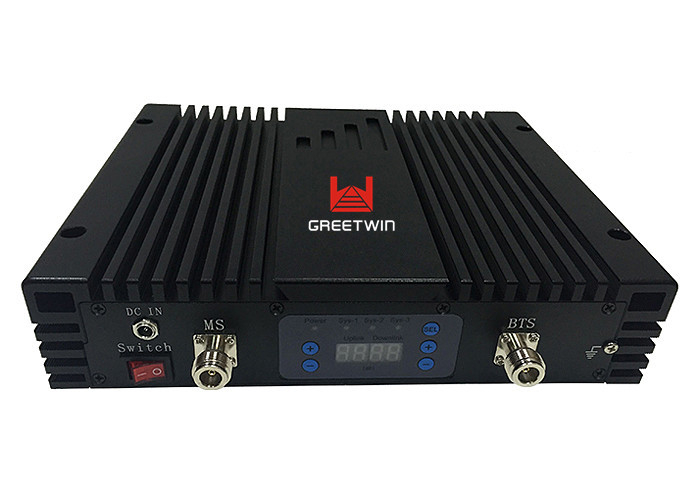

Large Image :  Cellular Signal Boosters Repeaters GSM900 Dual Band Wifi Repeater for Hotel

Product Details:

Place of Origin: China
Brand Name: GREETWIN
Certification: SGS, ISO9001,CE,ROHS
Model Number: GW-20GP

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton with PE Foam
Delivery Time: 3 Working Days After Received Payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 5000pcs per Month
Contact Now
Detailed Product Description
Features: GSM900 PCS1900 Dual Signal Booster Application: Basement, Hotel,Office,hotel
Product Name:: Cell Phone Signal Booster Working Time: Uninterrupted
Other Name: Cell Boosters Operating Temp:: -20℃ To +55℃
Operating Humidity:: 5% - 95% HS CODE: 8543709200

Cellular Signal Boosters Repeaters GSM900 Dual Band Wifi Repeater for Hotel




Outdoor Antennas are used to capture the signal where you have it (ideally it will be outside your building where you have the most bars) and deliver it to your booster. You have 4 choices of outdoor antennas.

Such as, panel antenna, Yagi antenna, omni-directional antenna, Log Periodic Dipole Antenna, The characteristics of each antenna is designed to conform to your location and needs.
The GREETWIN Cellular Booster amplifies your signal and sends it to your Indoor Antenna.Cellular Booster is the heart and soul of your system. There are a two main things to consider when selecting a booster. The first factor is the booster strength and the second is the networks (3G or 4G) that you want to boost.
The Indoor Antenna distributes your new strong signal in your troubled area, so you can enjoy crystal clear phone calls and lightning fast data speed.


Eliminate dropped calls and increase data speeds with a signal booster.
Indoor Dual Band Signal Repeater (Signal Booster) series is an ideal solution for both two wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
Do not dismantle machine, maintain or displace accessories by yourself, because in this way, the equipment may be damaged or even get an electric shock.


Features:

1. Cost effective solution for weak signal zones, reduce drop/off calls.

2. Compact size, low power consumption,

3. easy installation, great cover.

4. Expansion and extending of the signal of base station.

5. Optimization of the quality of the signal and source

6. Cover about 500~3000m² without block or obstruct.

7. High linear design, ALC function design, low interference to BTS.

8. Support any cellular devices (voice & data & video)

9. Wide band signal booster, or customize selective band booster.

Advantages:
Digital Display Panel, Intelligent mode setting
Smart function called which can be activated via the digital display panel.
Users can choose gain and working system by LED Digital Panel.
Set the technical parameters simple and efficient, this is easier than DIP Switch.
Cellular Signal Boosters Repeaters GSM900 Dual Band Wifi Repeater for Hotel

Standard Package:
1) AC90-264V, DC9V/5A power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
Recommended Accessories:
1) Donor antenna: Log Periodic Antenna (9dBi,806-960/1710-2700MHz)
2) Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
3) 5D-FB coaxial cable with connecter (Cable length optional)

Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.

Model:
GW-10GP, 10dBm
GW-15GP, 15dBm
GW-20GP, 20dBm
GW-23GP, 23dBm
GW-27GP, 27dBm
GW-30GP, 30dBm


Specification:



Frequency Range Uplink Downlink
GSM900+PCS1900 890 - 915/1850 - 1910MHz 935 - 960/1930-1990MHz
Max. Gain 65dB 70dB
Max. Output Power 17dBm 20dBm
Band width Wide Band
Manual Gain Control 31dB / 1dB Step
Automatic Gain Control >30dB
Ripple in Band ≤8dB
Noise Figure ≤ 6dB
VSWR ≤ 2.0
Intermodulation Products 9KHz~1GHz ≤ -36dBm
1~12.75GHz ≤ -30dBm
Spurious Emission 9KHz~1GHz ≤ -36dBm
1~12.75GHz ≤ -30dBm
Time Delay ≤ 1.5 μs
Frequency stability ≤ 0.01ppm
MTBF > 50000 hours
Impedance 50 ohm
Power Supply AC 90-264V,DC 9V/5A
Power LED Power indicator
Alarm LED Red Self oscillation or Strong input signal
Green Normal
Mechanical Specification
RF Connector N-Female
Switch Power Switch
Cooling Heatsink Convection cooling
Humidity < 90%
Operating Temperature -20°C ~ +55°C
Environment Conditions IP40
Installation Type Wall Installation
Size 268mm*58mm*189mm
Weight < 3.5Kg


Support these frequency range:



Frequency Range Uplink Downlink
GSM900+DCS1800 890 - 915/1710 - 1785MHz 935 - 960/1805-1880MHz
EGSM900+DCS1800 880 - 915/1710 - 1785MHz 925 - 960/1805-1880MHz
GSM900+PCS1900 890 - 915/1850 - 1910MHz 935 - 960/1930-1990MHz
GSM900+ LTE2600 890 - 915/2500 - 2570MHz 935 - 960/2620 - 2690MHz
EGSM900+ LTE2600 880 - 915/2500 - 2570MHz 925 - 960/2620 - 2690MHz
GSM900+WCDMA 890 - 915/1920 - 1980MHz 935 - 960/2110 - 2170MHz
EGSM900+WCDMA 880 - 915/1920 - 1980MHz 925 - 960/2110 - 2170MHz
GSM850+PCS1900 824 - 849/1850 - 1910MHz 869 - 894/1930 - 1990MHz
GSM850+ AWS1700 824 - 849/1710 - 1755MHz 869 - 894/2110 - 2155MHz
CDMA800+WCDMA 824 - 849/1920 - 1980MHz 869 - 894/2110 - 2170MHz
CDMA800+ DCS1800 824 - 849/1710 - 1785MHz 869 - 894/1805 - 1880MHz
LTE700(A/B)+PCS1900 698 - 716/1850 - 1910MHz 728 - 746/1930 - 1990MHz
LTE700(C)+PCS1900 777 - 787/1850 - 1910MHz 746 - 756/1930 - 1990MHz
LTE700(D)+PCS1900 788 - 798/1850 - 1910MHz 758 - 768/1930 - 1990MHz
LTE700(A/B)+AWS1700 698 - 716/1710 - 1755MHz 728 - 746/2110 - 2155MHz
LTE700(C)+AWS1700 777 - 787/1710 - 1755MHz 746 - 756/2110 - 2155MHz
LTE700(D)+AWS1700 788 - 798/1710 - 1755MHz 758 - 768/2110 - 2155MHz
LTE700+LTE2600 703 - 748/1710 - 1755MHz 758 - 803/2110 - 2155MHz
iDEN+PCS1900 806 - 824/1850 - 1910MHz 851 - 869/1930 - 1990MHz
iDEN+AWS1700 806 - 824/1710 - 1755MHz 851 - 869/2110 - 2155MHz
LTE800+WCDMA 832 - 862/1920 - 1980MHz 791 - 821/2110 - 2170MHz
LTE800+LTE2600 832 - 862/2500-2570MHz 791 - 821/2620 - 2690MHz
LTE800+GSM900 832 - 862/890 - 915MHz 791 - 821/935 - 960MHz
LTE800+EGSM900 832 - 862/880 - 915MHz 791 - 821/925 - 960MHz
DCS1800+WCDMA 1710 - 1785/1920-1980MHz 1805-1880/2110-2170MHz
DCS1800+ LTE2600 1710 - 1785/2500-2570MHz 1805-1880/2620-2690MHz
WCDMA+ LTE2600 1920-1980/2500-2570MHz 2110-2170/2620-2690MHz


Application Diagram:
Cellular Signal Boosters Repeaters GSM900 Dual Band Wifi Repeater for Hotel
