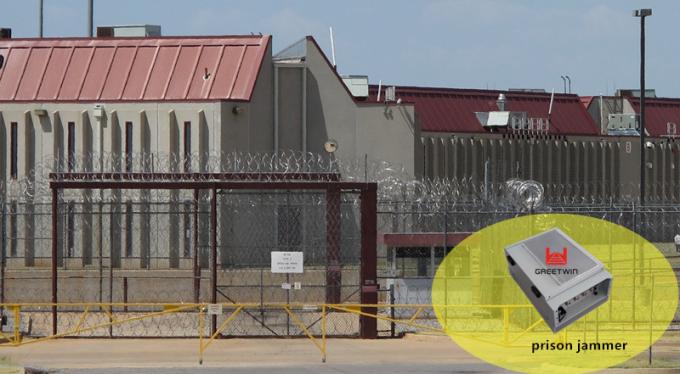

Outdoor Multi Band Prison Cell Phone Jamming Devices Remote Monitoring
Prison Jammer Introduction:
The Prison Jammer manages the problem of illegal cell phones in a Prison or Government facility.
Prison Solutions from Government to stop smuggled phones from making calls by using RF Jammers.
Our solutions differ in operation and design. Some Prison Jammers work to block off large areas in a building to stop cell phone calls. These Prison Jammers are installed in a pre-determined pattern.
Other Prison Jammers may be set up in a fixed design to radiate RF interference and defeat any attempt to use a mobile phone service provider's network to make or receive calls.
Prison Jammer Features:
1. High-power multi-band jammer, make high jamming range
2. Modular construction for easy maintenance, repair and upgrade.
3. Jamming up to SIX different jamming modules.
4. Max 300watts total RF output power.
5. Special additional housing for all weather protection.
6. The general design of the system meets military requirements.
7. Different frequency band can be controlled independently by single switches;
8. Power Amplifiers protection design ensures the working reliability of the device.
9. Can customize these frequencies AM, FM Radio, LoJack 173MHz, VHF, UHF, Walkie-talkie, interphone, Wireless Toys , FM Radio, Remote Control, 27MHz, 49MHz, 433MHz,315MHz, 868MHz, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA,UMTS,3G,4G,LTE 700, LTE 800, LTE 2300, LTE 2600, GPS L1,GPSL2, Galileo, Compass, Glonass, WIFI, Bluetooth, Spy camera, WIMAX, UAV, Drone, etc.
Prison Jammer Advantages:
1. VSWR protection,
When there be antenna disconnect, full system will not burn out.
2. Waterproof Level: IP65
Good cooling system, Continuous operation, even in hot climates.
3. Stable capability, cost-effective choice
4. Each channel can be controlled separately and simultaneously.
Manual adjustable output power with each channel.
5. Remote Monitoring(Optional)
Remote Monitoring available by IP Network
Remote Control Interface: RJ45
Prison Jammer Monitoring Software Platform Introduction:
1. The Jammer Monitoring Software Platform allows users to monitor and control all Jammers through Internet, and all real-time alarm information feedback to the users immediately. So that users can stay at office to have all information of jammers working status, and adjust the Jammers to suit the operating environment of the installed area, greatly reduce the customer's maintenance workload.
2. The platform enables real-time display of all Jammers' output power, operating temperature, alarm information (including over-temperature alarm, under-power alarms, VSWR alarms, Door open alarms, etc.), and all information is specific to each Channel, real-effective, convenient and quick.
Prison Jammer Technical Specification:
| Output interface | Description | Shield band of frequency | RF output power | |
| CH1 | CDMA800 | 851-894 MHz | 47dBm | |
| CH2 | WCDMA 3G | 2110-2170 MHz | 47dBm | |
| CH3 | GSM900 | 925-960 MHz | 47dBm | |
| CH4 | GSM1800 /PCS 1900 | 1805-1880 MHz /1930-1990 MHz | 47dBm | |
| CH5 | WIFI, 2.4G | 2400-2485 MHz | 47dBm | |
| CH6 | LTE 2600(Optional) | 2620-2690MHz | 47dBm | |
| GPS L1(Optional) | 1570-1580 MHz | 47dBm | ||
| LTE800(Optional) | 790-821 MHz | 47dBm | ||
| Power supply: AC220V, or DC48V | ||||
| Total Output Power: 300Watt | ||||
| Power consumption:900Watt | ||||
| Weight: 40Kg Size(length × wind × high):592×395×265mm | ||||
| Humidity: 30%-95% Running Temperature: -20â to +55â | ||||
| Jammer Module Number | 6 | |||
| Cooling System | Systematic Smart Cooling System | |||
| System Protection | VSWR, Over-voltage Circuit, shock, temperature | |||
| Jamming Source | Frequency Scan Technology | |||
| Antenna Type | High Gain Directional Panel Antennas or omni antenna | |||
| Jamming range: 50-300m according to signal density of mobile network | ||||
Prison Jammer Application:
Prisons, military, government, Oil and Gas Storage Facilities and fields, Churches, Theatres, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, mosques, etc.
Note: All Bomb Jammers, IED Jammers, RF Signal Jammer and RCIED Jammers, including cell phone jammers and mobile phone jamming devices are sold for governmental, law enforcement and military users only.
