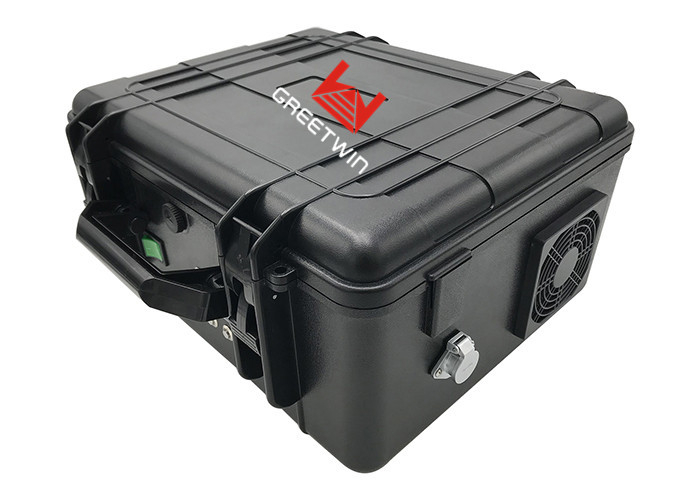

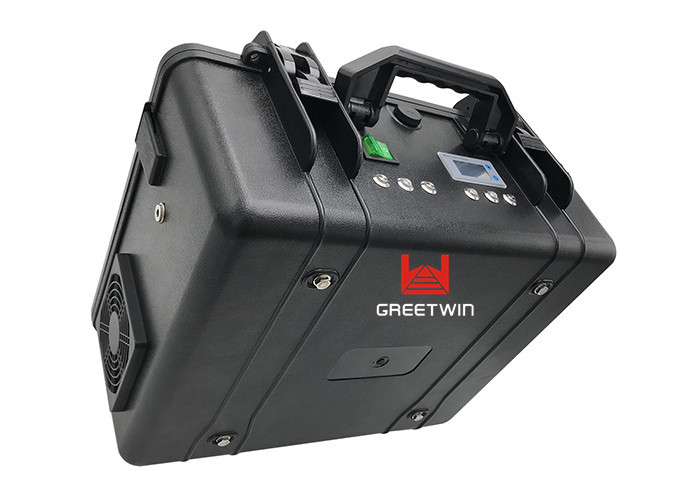

3G 4G WiFi High Power Mobile Phone Jammer 60W 6 Band RF Radio Frequency
High Power Signal Jammer Introduction:
Jammer GW-VIP-PCB6P is a high power jammer suitable for mobile use despite its high power. It features high transmitting power with compact design. The device can be deployed network-independent and operates up to 2 hours with its lithium battery. The built-in antenna provides mobile operation, however, additional external antennas extend the operation possibilities. A separate antenna outlet is available for each frequency range. Due to its powerful fan, the GW-VIP-PCB6P offers constant operation at high temperatures and in tropic climate which is also supported by the solid and durable plastic suitcase. It is equipped with a grip and rolls enabling the operator to easily move it over longer distances in spite of its weight of 25 kg. This jammer provides a maximum of power at high mobility. The built-in battery can be charged during operation which ensures continuous application. The various functions are displayed at the housing.
High Power Signal Jammer Technique characteristics
1. Taking use of super-high frequency with high effective power.
2. Effective output power (channel power) and bigger interfere radius.
3. Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
4. Imported elements: Slow start up design of circuit. These elements can maintain the stable operation condition with high integration.
Interface
1. Built-in directional antenna, (DCS/CDMA/GSM/3G/WIFI)
2. Power supply interface (AC220V IN), Charge Port only for charging.
High Power Signal Jammer Advantages:
It is a man-portable system that will provide durable reliability for law enforcement and military forces in the field. It can also be placed in a vehicle for greater mobility when securing areas against RCIEDs.
Portable jammer GW-VIP-PCB6P will jam GSM 925~960MHz, DCS 1805-1880MHz,
WCDMA 2110~2170MHz, IDEN and CDMA 851 - 894MHz.
High Power Signal Jammer Technical Specification:
| Output interface | Shield band of frequency | RF output power (±1dBm) |
| CH1 | 2110-2170 MHz | 40 dBm |
| CH2 | 1805-1920 MHz | 40 dBm |
| CH3 | 925-960 MHz | 40dBm |
| CH4 | 2400-2500 MHz | 40 dBm |
| CH5 | 2110-2170 MHz | 40 dBm |
| CH6 | 851-894 MHz | 40 dBm |
| Power supply: AC220V | ||
| Jamming area: 20-80m @ according to signal density of mobile network | ||
| Power consumption: 180W Weight:8Kg | ||
| Size(length x width x height : 300×200×150mm | ||
| DC24V, 15A, battery inside. Working up to 2hours. | ||
| Humidity: 30%-95% Running Temperature: -20 to +55 Celsius Degree | ||

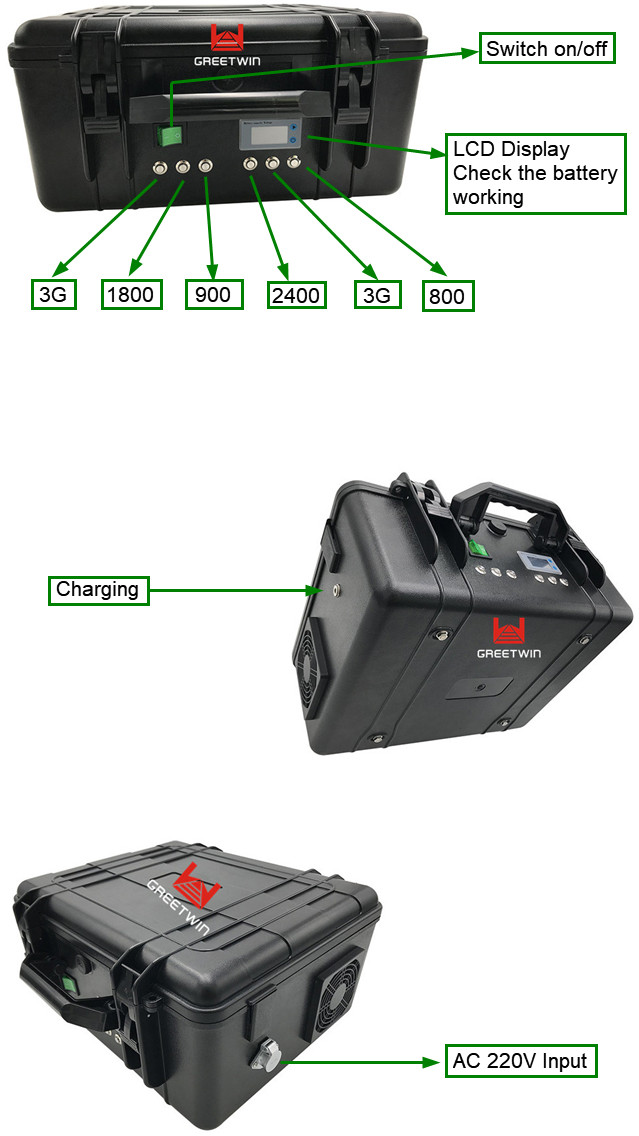

Main View:
High Power Signal Jammer Application:
Bomb disposal squads,
VIP protection,
Special Police (S.W.A.T)
