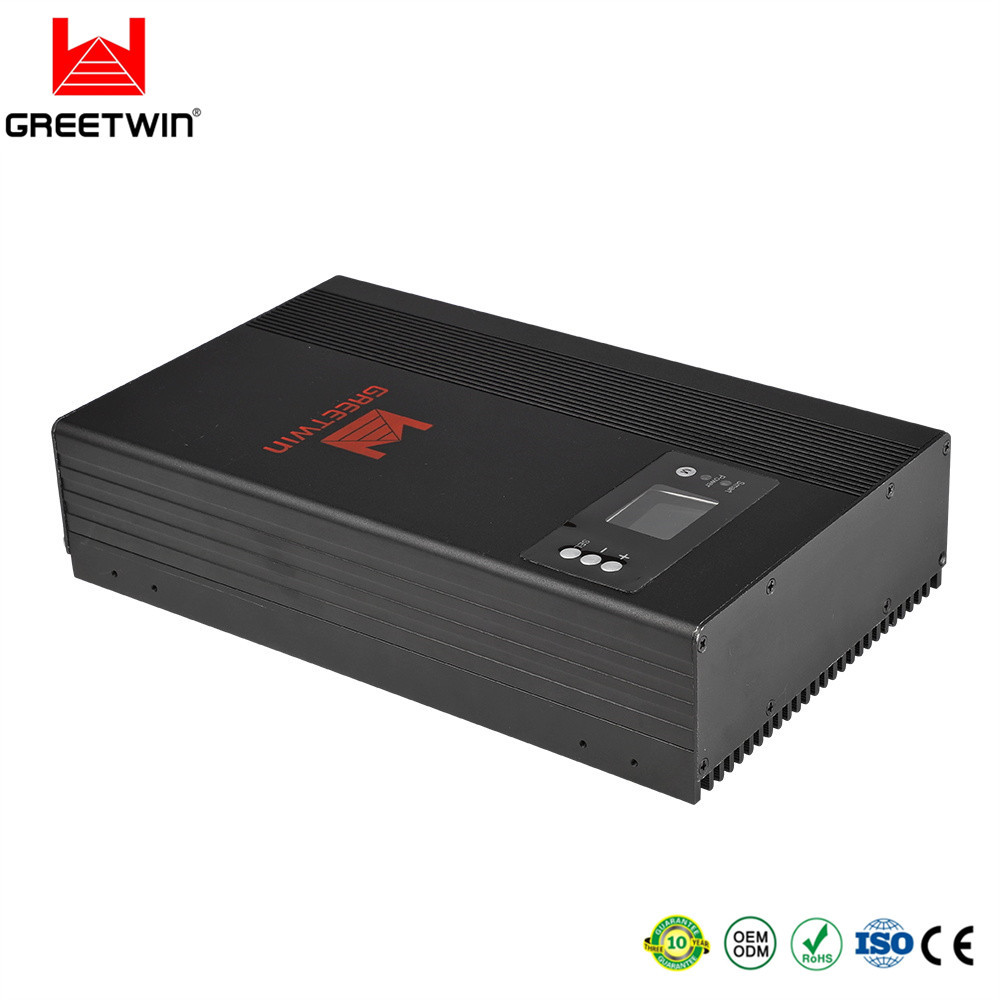

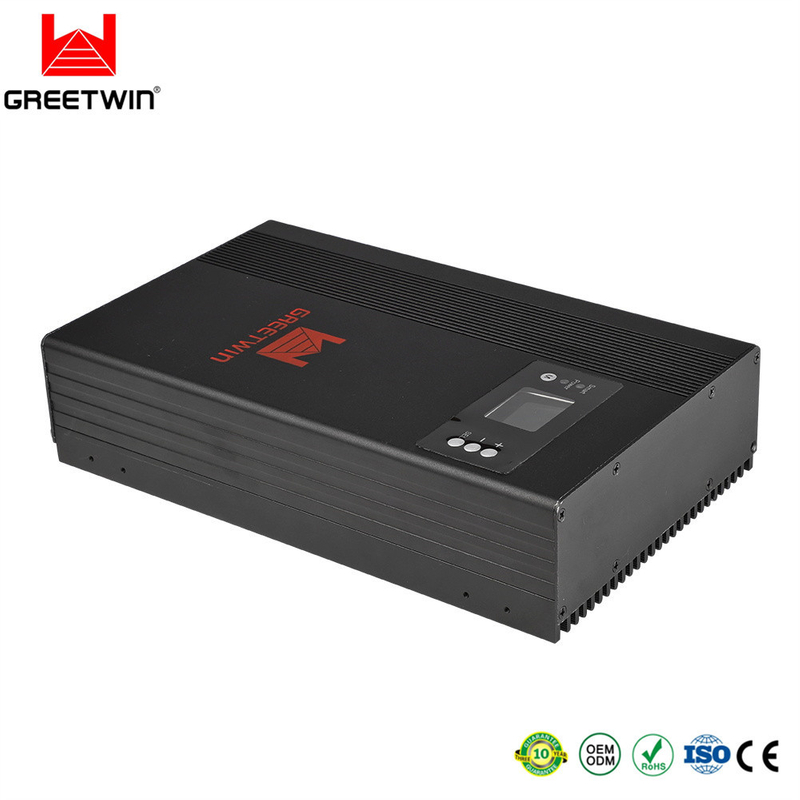

23dBm Line Mobile Signal Repeater Tri Band 2g 3G 4G 10000sqm ALC

Quantity:
Inquire Add to Basket

  • Guangdong, China

  • Greetwin

  • SGS, ISO9001,CE,ROHS

  • GW-23DWL-K-LA

  • 1

  • 3-5 days

  • L/C, D/A, D/P, T/T, Western Union, MoneyGram

  • 1000

LCD Display Real-time Gain 23 dBm Line Repeater Tri-band LTE1800 WCDMA2100 LTE2600 2G 3G 4G Mobile Phone Line Signal Booster

Model:
GW-10DWL, 10dBm
GW-15DWL, 15dBm
GW-20DWL, 20dBm
GW-23DWL, 23dBm
GW-27DWL, 27dBm
GW-30DWL, 30dBm

Tri-Band Signal Booster series is an ideal solution for three wireless system in small/medium businesses and home users looking to enhance indoor 2G&3G&4G wireless connectivity. It is connected via coaxial cable to Tri-Band Donor Antenna and Service Antenna, Tri-Band Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area.

Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.
Expansion and extention of the signal of base station. Optimization of the quality of the signal and source
3. Cover about 500~3000m² Without block or obstruct.
4. High linear design, ALC function design, low interference to BTS.
5. Support any cellular devices (voice & data & video)
6. Wide band signal booster, or customize selective band booster.
7. Support System CDMA800, GSM, DCS, PCS, WCDMA, LTE 4G etc

Recommended Accessories:
1)Donor antenna: Log Periodic Antenna (9dBi, 806-960/1710-2700MHz)
2)Service antenna: Omni Ceiling Antenna (3dBi, 806-960/1710-2700MHz)
3)5D-FB coaxial cable with connecter (Cable length optional)

Application:
To expand signal coverage of fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop. Etc.
Frequency Range Uplink Downlink
LTE 1800MHz 1710-1785MHz 1805-1880MHz
WCDMA 2100MHz 1920-1980MHz 2110-2170MHz
LTE 2600MHz 2500-2570MHz 2620-2690MHz
Max. Gain 25dB 30dB
Max. Output Power 0dBm 20dBm
Band width Wide Band
Manual Gain Control 31dB
ALC >25dB
Ripple in Band ≤ 8dB
Noise Figure ≤ 6dB
VSWR ≤ 2.0
Intermodulation ≤ -40dBc
Spurious Emission 9KHz~1GHz ≤ -36dBm
1~12.75GHz ≤ -30dBm
Time Delay ≤ 1.5 μs
Frequency stability ≤ 0.01ppm
MTBF > 50000 hours
Impedance 50 ohm
Power Supply AC 90-264V,DC 9V/5A
Power LED Power indicator
Alarm LED Red Self-oscillation or Strong input signal
Smart Function, Auto Shut Down
Green Normal
Mechanical Specification
RF Connector N-Female
Switch Power Switch, Manual Gain Control Switch

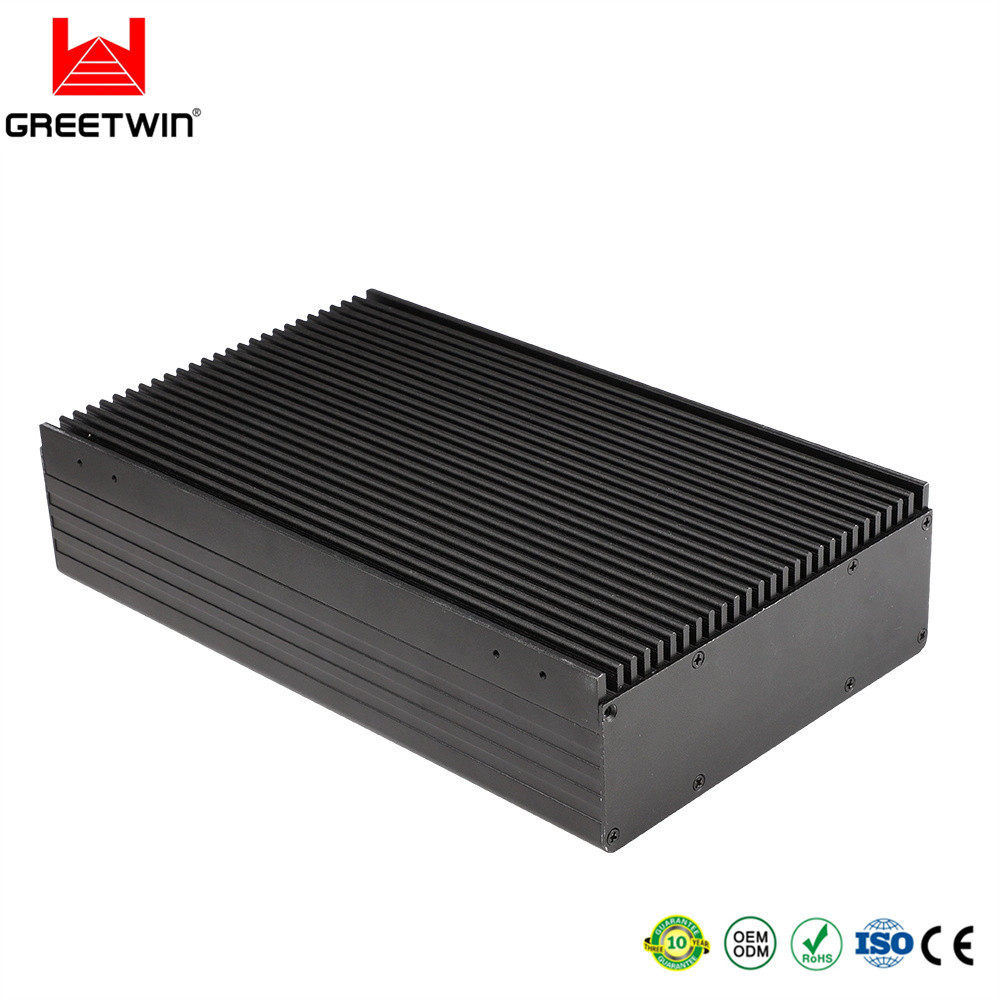

Cooling Heatsink Convection cooling
Humidity < 90%
Operating Temperature -10°C ~ +55°C
Environment Conditions IP40
Installation Type Wall Installation
Size 224*170*65mm
Weight < 4.5Kg

Recommended Accessories:
1) Donor antenna: Log Periodic Antenna (9dBi,806-960/1710-2700MHz)
2) Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
3) 5D-FB coaxial cable with connecter (Cable length optional)

Method of Installation:
The booster is fixed onto the wall through expansion bolts.
A. Drill holes in the selected place and install expansion bolts.
B. Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.
C. Place the booster on and fasten it.
D. Connect cables and power cables to the booster respectively.
E. After installing the booster as described above, power on the booster to check the operation status.

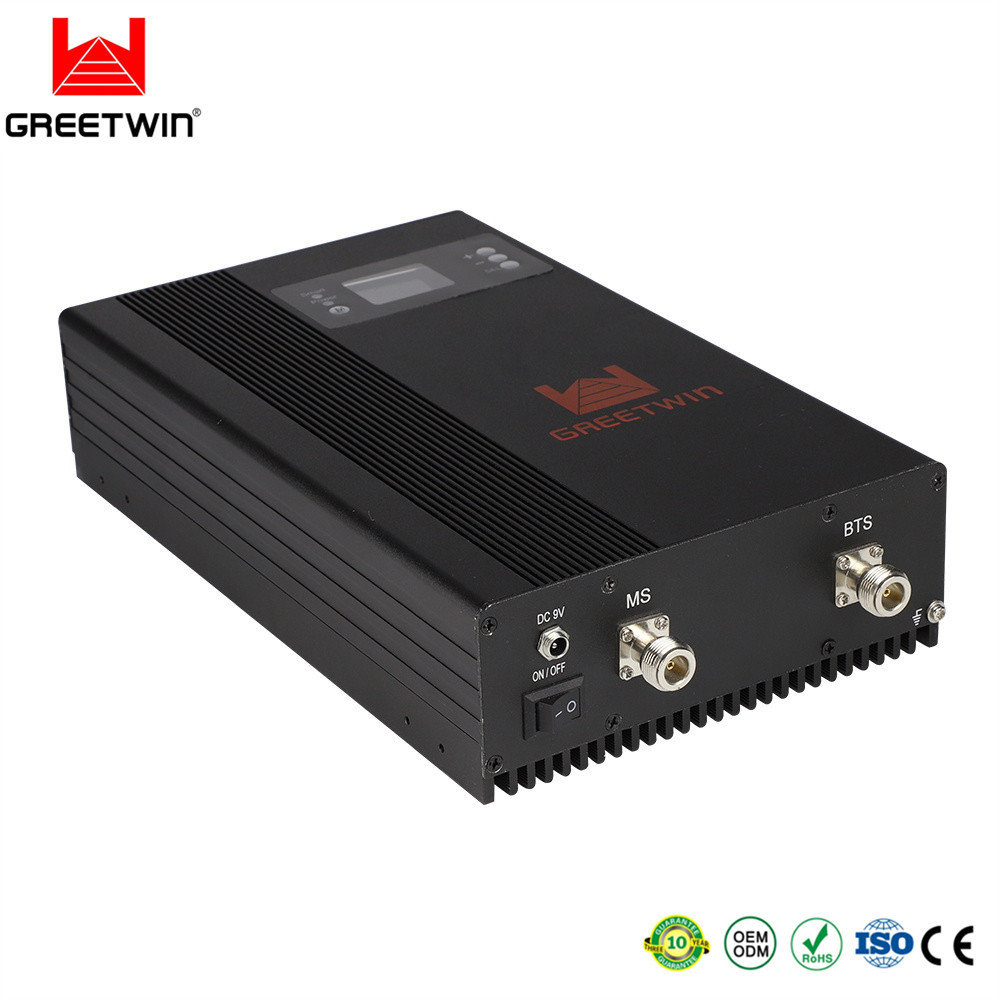

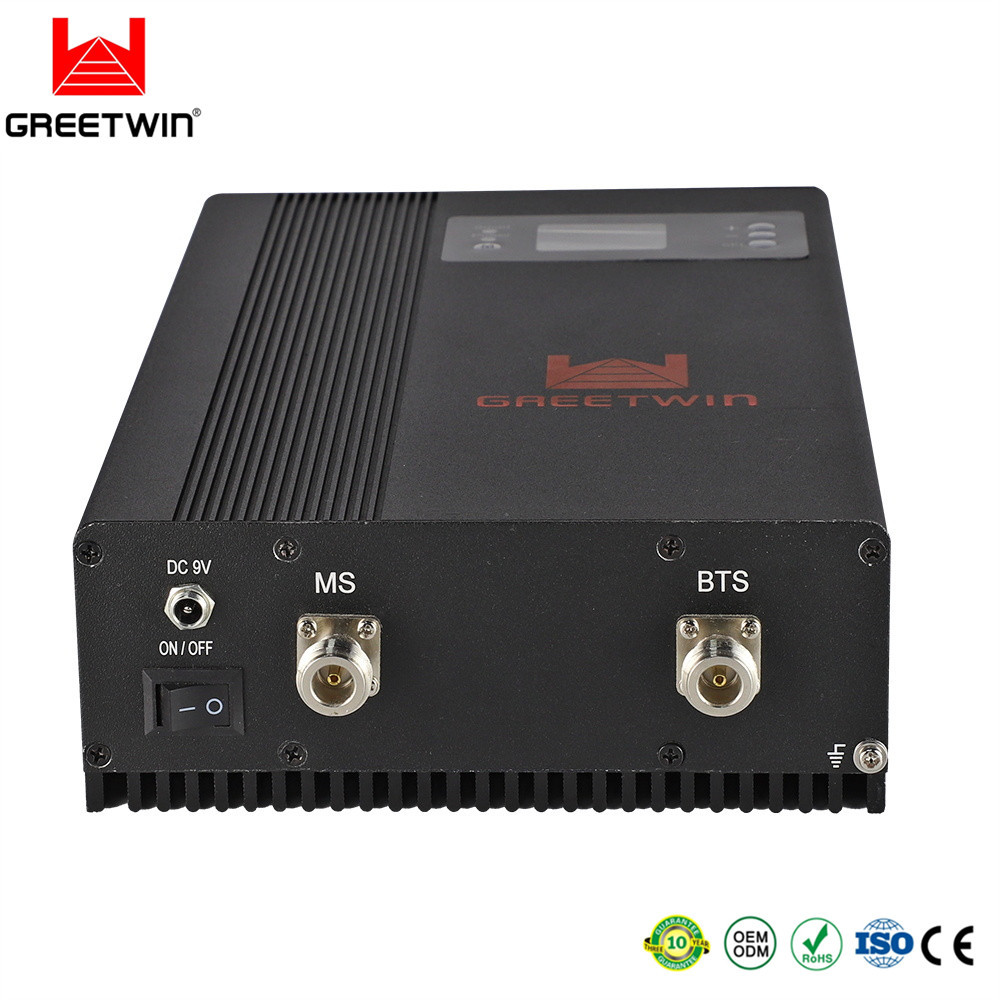

Connection:
A. BTS Port: donor antenna cable is connected with Outdoor Port;
B. MS Port: service whip antenna is connected with Indoor Port;
C. DC IN connected with Power adaptor.
