| Quantity: | |
|---|---|
Shenzhen
Greetwin
CE, RoHS
GW-20GDW-LSZ
1 Piece
US $32.7-49.9/ Piece
Neutral Packing, Product Size: 197*152*210mm. Packing Size: 315*210*56mm
5-8 work days
L/C, T/T, Western Union, MoneyGram
2000PCS/Month

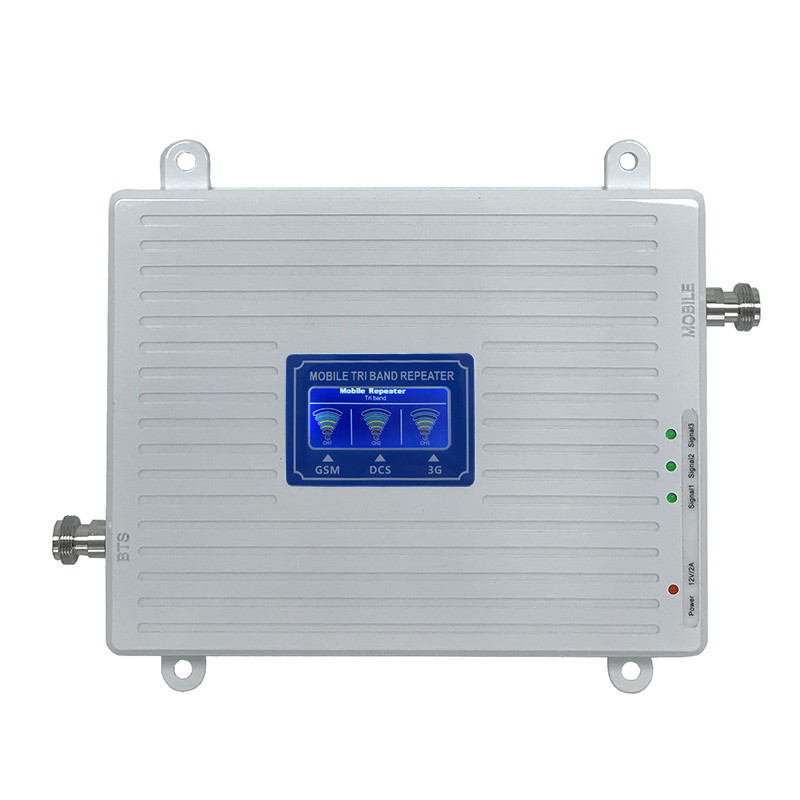

Mobile Phone Signal Booster Repeater Tri-Band 2g 3G 4G 900+1800+2100MHz Cellphone Signal Repeater Network Amplifier
Parameter:
| Frequency Range | Uplink | Downlink | |||
| GSM 900MHz | 890-915MHz | 935-960MHz | |||
| DCS1800MHz | 1710-1785MHz | 1805-1880MHz | |||
| WCDMA2100MHz | 1920-1980MHz | 2110-2170MHz | |||
| Max. Gain | 60dB ±2dB | 65dB±2dB | |||
| Max. Output Power | 17dBm±2dB | 20dBm±2dB | |||
| Bandwidth | Wide Band | ||||
| Ripple in Band | ≤ 8dB | ||||
| Noise Figure | ≤ 6dB | ||||
| VSWR | ≤ 2.0 | ||||
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm | |||
| 1~12.75GHz | ≤ -30dBm | ||||
| Time Delay | ≤ 1.5 μs | ||||
| MTBF | > 50000 hours | ||||
| Impedance | 50 ohm | ||||
| Power Supply | AC 90-240V,DC 12V/3A | ||||
| Power LED | Power indicator | ||||
| Alarm LED | Red | Strong input signal | |||
| Green | Normal | ||||
| Mechanical Specification | |||||
| RF Connector | N-Female | ||||
| Cooling | Heatsink Convection cooling | ||||
| Humidity | < 90% | ||||
| Operating Temperature | -10°C ~ +55°C | ||||
| Environment Conditions | IP40 | ||||
| Installation Type | Wall Installation | ||||
| Size | 196*182*22mm | ||||
| W | |||||
Q1.Payment Method
T/T, Western Union, Paypal, and Credit Card are available,
and we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
*Other methods please Contact us with more details.
Q2.Delivery Date&Lead Time
| Quantity | Lead time | Delivery to American/Middle East/Asia/Europe |
| <20 pcs | 3-5 business days | 3-7 business days by DHL 5-7 business days by FedEx/UPS |
| 20-100 pcs | 7-15 business days | |
| >100 pcs | 15-24 business days |
â
â
â
