| Quantity: | |
|---|---|
Guangdong,China
Greetwin
SGS, ISO9001,CE,ROHS

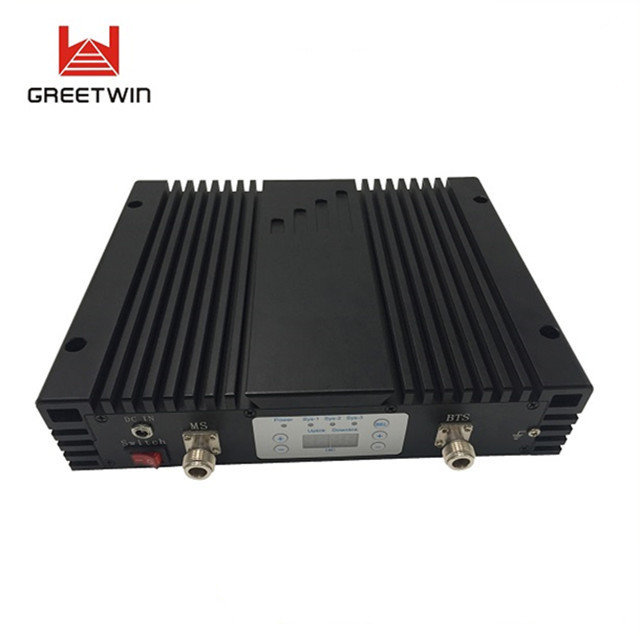

GW-25EWL
1
$396.8-$453.6/ PC
carton package
3-5 days
L/C, D/A, D/P, T/T, Western Union, MoneyGram
1000
Product Details:
| Frequency Range | Uplink | Downlink | |||
| EGSM900+WCDMA2100+LTE2600 | 880-915 /1920-1980/2500-2570 MHz | 925-960 /2110-2170/2620-2690MHz | |||
| Max. Gain | 73dB+2dB | 78dB+2dB | |||
| Max. Output Power | 20dBm+2dBm | 25dBm+2dBm | |||
| Band width | Wide Band | ||||
| Manual Gain Control | 31dB / 1dB Step | ||||
| ALC | >20dB | ||||
| Ripple in Band | 8dB | ||||
| Noise Figure | ≤ 6dB | ||||
| VSWR | ≤ 2.0 | ||||
| Intermodulation | ≤ -40dBc | ||||
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm | |||
|
| 1~12.75GHz | ≤ -30dBm | |||
| Time Delay | ≤ 1.5 μs | ||||
| Frequency stability | ≤ 0.01ppm | ||||
| MTBF | > 50000 hours | ||||
| Impedance | 50 ohm | ||||
| Power Supply | AC 90-264V,DC 10V/10A | ||||
| Power LED | Power indicator | ||||
| Alarm LED | Red | Self oscillation or Strong input signal | |||
|
| Green | Normal | |||
| Mechanical Specification | |||||
| RF Connector | N-Female | ||||
| Switch | Power Switch | ||||
| Cooling | Heatsink Convection cooling | ||||
| Humidity | < 90% | ||||
| Operating Temperature | -10°C ~ +55°C | ||||
| Environment Conditions | IP40 | ||||
| Installation Type | Wall Installation | ||||
| Size | 268mm*439mm*58mm | ||||
| Weight | < 9.5Kg | ||||
Cell Phone Signal Repeater Manual
Indoor Quad Band Signal Repeater (Signal Booster) series is an ideal solution for four wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
The signal booster improves mobile signals with no negative impact on human health.
Cell Phone Signal Repeater Features
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.
Expansion and extending of the signal of base station.
Optimization of the quality of the signal and source
3. Cover about 500~3000m² without block or obstruct.
4. High linear design, ALC function design, low interference to BTS.
5. Support any cellular devices (voice & data & video)
6. Wide band signal booster, or customize selective band booster.
Cell Phone Signal Repeater Advantages
Digital Display Panel, Intelligent mode setting
Smart function called which can be activated via the digital display panel.
Users can choose gain and working system by LCD Digital Panel.
Set the technical parameters simple and efficient, this is easier than DIP Switch
Customer Care:
Standard Package
1) AC90-264V, DC10V/10A power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
Recommended Accessories
1)Donor antenna: Log Periodic Antenna (9dBi,806-960/1710-2700MHz)
2)Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
3)5D-FB coaxial cable with connecter (Cable length optional)
Cell Phone Signal Repeater Application Diagram
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.
