Get Full Bars DCS 1800MHz Cell Phone Signal Boosters with Real-time Display
Model. GW-23D-N
What cause bad reception ?

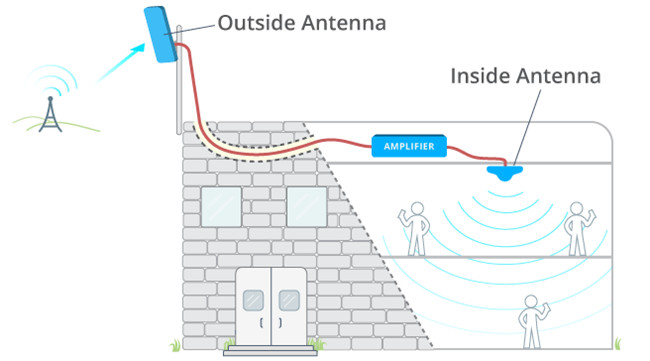

The most common problem now is usually cell phone signal interference (As the signal travels from the source (your cellular tower) to the destination (your cell phone), it can encounter obstructions in between, even while you’re in your coverage area. These obstructions are usually trees and hills in rural areas and large concrete buildings and bridges in urban regions. Also, the materials used in our homes itself (such as tinted windows) have further added obstructions to clear signal transmission.
Signal Booster Introduction:
Signal Booster GW-23D-N is designed to enhance and improve the quality of mobile DCS 1800MHz connection.There’re black and white colors for options.
The gain of the model is 75dB, the power is 23dBm, which is compatible with all domestic operators of mobile communication. It is ideal for using in houses, offices, shops and restaurants.
The model is equipped with an LCD screen, which indicates the level of input signal before and after boosting. The information on the LCD screen, greatly simplifies the process of adjusting the gain of the system.
Signal Booster Specification:
| Frequency Range | Uplink | Downlink | |||
| DCS1800 | 1710 - 1785MHz | 1805 - 1880MHz | |||
| Max. Gain | 70dB | 75dB | |||
| Max. Output Power | 20dBm | 23dBm | |||
| Band width | Wide Band | ||||
| Manual Gain Control | 31dB / 1dB Step | ||||
| Automatic Gain Control | >31dB | ||||
| Ripple in Band | 6dB; | ||||
| Noise Figure | ≤ 6dB | ||||
| VSWR | ≤ 2.0 | ||||
| Intermodulation Products | 9KHz~1GHz | ≤ -36dBm | |||
| 1~12.75GHz | ≤ -30dBm | ||||
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm | |||
| 1~12.75GHz | ≤ -30dBm | ||||
| Time Delay | ≤ 1.5 μs | ||||
| Frequency stability | ≤ 0.01ppm | ||||
| MTBF | > 50000 hours | ||||
| Impedance | 50 ohm | ||||
| Power Supply | AC 90-264V,DC 9V/5A | ||||
| Power LED | Power indicator | ||||
| ISO(Alarm LED) | Red | Self oscillation or Strong input signal | |||
| Green | Normal | ||||
| Mechanical Specification | |||||
| RF Connector | N-Female | ||||
| Switch | Power Switch | ||||
| Cooling | Heatsink Convection cooling | ||||
| Humidity | < 90% | ||||
| Operating Temperature | -20°C ~ +55°C | ||||
| Environment Conditions | IP40 | ||||
| Installation Type | Wall Installation | ||||
| Size | 170mm×128mm×65mm | ||||
| Weight | < 2.5Kg | ||||
Other Frequencies for options:
| Frequency Range | Uplink | Downlink |
| GSM 900MHz | 890 - 915MHz | 935 - 960MHz |
| EGSM900MHz | 880 - 915MHz | 925 - 960MHz |
| CDMA800/GSM850 | 824 - 849MHz | 869 - 894MHz |
| AWS1700 | 1710 - 1755MHz | 2110 - 2155MHz |
| PCS1900 | 1850 - 1910MHz | 1930 - 1990MHz |
| WCDMA2100 | 1920 - 1980MHz | 2110 - 2170MHz |
| LTE2600 | 2500 - 2570MHz | 2620 - 2690MHz |
Signal Booster Features:
1. Coverage up to 2000 m²
2. Manual mode for adjusting the gain by “+” / “-” button
3. Smart mode for adjusting the gain automatically
4. Fluted surface on aluminum shell provides an optimal cooling
5. LCD Screen displays the working status of AGC and ISO, gain and power in time.
Support any cellular devices (voice & data & video)
Signal Booster Instructions:
| Power LED | Green | Normal |
| Off | DC power problem | |
| Smart LED | Green | Adjusting the gain automatically |
| Off | Manual mode: adjusting the gain by “+” / “-” button | |
|

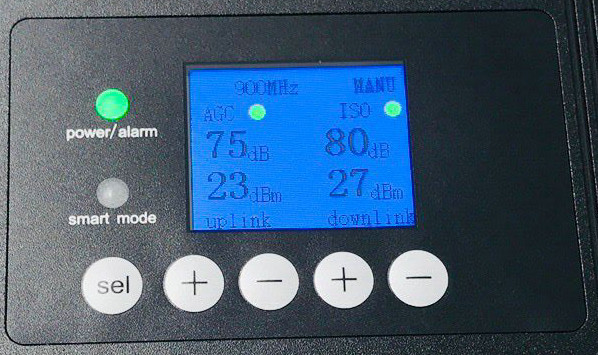

LCD Display |
LCD display will show the real-time gain, “+” increase gain, “-” decrease gain.
| |
|
SEL | 1. Quickly Press: select the different systems when you need, (only for Dual band, Tri band, Quad-band or Five band repeater) 2. Press for 2 Seconds: select the smart mode or manual mode | |
FAQ:
1. After installing booster signal not be very good, indoor signal coverage very small ?
> Adjust outdoor antenna's location and direction
> Change another high gain outdoor antenna
> Check whether cables are connected well
> Change more powerful repeater
2. Cell phone signal full bar, but communication quality bad ?
> Much closer distance between indoor and outdoor antenna, separate them with a longer distance.
3. After installing booster not only signal be good, but also more bad ?
> Much closer distance between indoor and outdoor antenna, separate them with a longer distance.
4. Working good for long time, suddenly signal bad ?
> Check whether outdoor cable connectors are flooded
> Check whether power light is working normally
> If cables are not flooded and power light is working normally, the booster should has problems and need to be sent back to factory for repair.

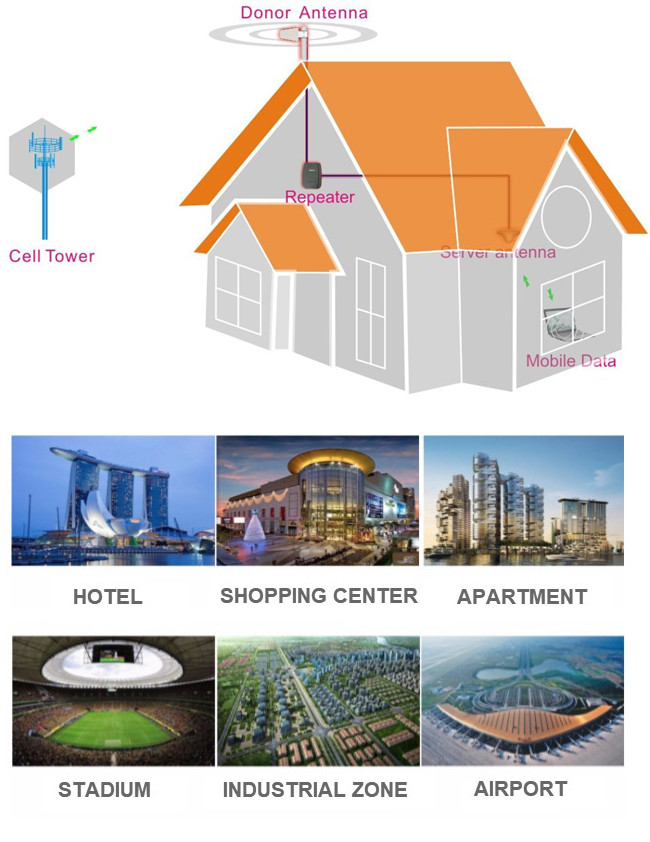

Signal Booster Application:
Signal Booster Installation:
The booster is fixed onto the wall through expansion bolts.
A. Drill holes on the targeted place and install expansion bolts.
B. Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.
C. Place the booster on and fasten it.
D. Connect cables and power cables to the booster respectively.
E. After installing the booster as described above, power on the booster to check the operation status.
Connection:
A. BTS Port: donor antenna cable is connected with Outdoor Port;
B. MS Port: service whip antenna is connected with Indoor Port;
C. DC IN: connected with Power adaptor.
Our Signal Booster Workshop:
Our Company:
Greetwin Tech is a strong and reliable factory, focusing on the R&D and Manufacturing of Digital ICS Repeater, RF Repeater, Indoor Signal Distribution System, Trunk Amplifier, Band Selective Repeater for more than 10 years.
