1.5 Km Long Distance Drone Signal Jammer 54 Watt With Directional Antennas

Certification
Good quality GPS Signal Jammer for sales
Good quality GPS Signal Jammer for sales
Excellent quality, professional service and fast delivery!

—— Mr. Alex pereira

You always can give me the best plan ,and it lets my customer feel great,i hope we can have another chance to cooperation.

—— Mr. vicente colque

I'm Online Chat Now

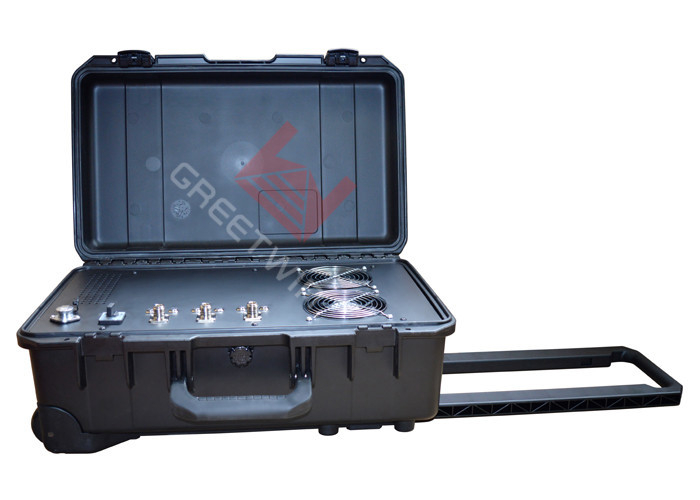

1.5 Km Long Distance Drone Signal Jammer 54 Watt With Directional Antennas

China 1.5 Km Long Distance Drone Signal Jammer 54 Watt With Directional Antennas supplier

Large Image :  1.5 Km Long Distance Drone Signal Jammer 54 Watt With Directional Antennas

Product Details:

Place of Origin: China
Brand Name: GREETWIN
Certification: SGS, ISO9001
Model Number: GW-UAV300

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden Case with PE Foam
Delivery Time: 10 Working Days after Received Payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs per Month
Detailed Product Description
Model Name: 1.5KM 54Watt Drone Signal Jammer Using Environment: Prisons, Scientific Research Centers, Military Security Force
Shielding Range: Up To 1.5KM Signal Source: Digital Gaussian White Noise
Output Power: 54Watt Build-in Battery: Min. 1 Hour Working Continually
Jamming Frequency: GPSL1, GPSL2, 2.4G, 5.8G, Glonass,900MHz Antennas: 3pcs Directional Antennas



1.5 Km Long Distance Drone Signal Jammer 54 Watt With Directional Antennas


When a drone is hit with a jammer’s signal, the drone usually returns back to its origin point (unless GPS is also jammed), giving the jammer user the option to track the drone back to the pilot. Sometimes the drones might even perform a vertical descent and land on the spot intact, which offers the option of performing a forensic investigation. Landing on the spot is also the general response from drones when both RF and GPS are jammed at the same time.
Jammers can be effective against drones over several kilometres away. Generally, jammers operate on

a ratio of distance between a drone and the jammer compared to the drone with its pilot. The further away the drone is from the pilot and closer to the jammer, the better. A typical effective jammer direction is a cone of about 15-30 degrees, projecting forward from the gun (this is also influenced by the RF band and the power of the jammer).

The portable UAV/drone jammer is our company's latest product designed by R&D department, against the widespread use of UAV nowadays.
It disables the targeted UAV by jamming the UAV's remote-control signal and GPS signal, to force the UAV fall or return. The jamming distance reaches more than 1.5KM.


Function:
Effective interference with UAV Remote-Control Signal 2400MHz, GPS signal 1500MHz, GPS signal 1200MHz, Transmission Signal 5800MHz,  900MHz.


Features:
1. Signal Source: Digital gaussian white noise technology
High integration & Stable operation.
2. highly effective power & long jamming distance
3. Manpack type, its convenient operation.
4. High quality tubular radiator, effective in radiating heat.
5. Import components; the moderating circuit-starting design avoids a spark,
when the device turn on/off.
6. Batteries inside, with LCD display.


Application:
Mainly applied to prisons, airports, scientific research centers, detention houses, interrogation rooms, courthouses, labor camp, all kinds of military important places, forbid aerial photography by use of drone, etc
1.5 Km Long Distance Drone Signal Jammer 54 Watt With Directional Antennas

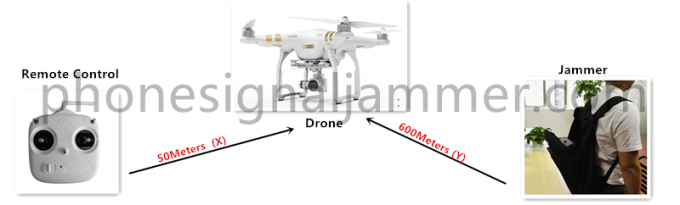

We make field test for Futaba 14sg,

ICR = Y / X = 600 / 50=12
Y is interference distance, X is Communication distance.
When X increase, ICR will be smaller , approach to 1.
For example,
When X is 100m, Y is 1KM.
ICR means RF jammer can get effective interference , the maximum ratio of interference distance and Communication distance.



Advanced Model: GW-UAV300
1.5 Km Long Distance Drone Signal Jammer 54 Watt With Directional Antennas

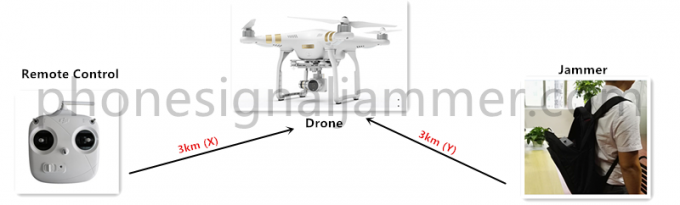

ICR = Y / X = 3 / 3 = 1
Y is interference distance, X is Communication distance.
ICR means RF jammer can get effective interference , the maximum ratio of interference distance and Communication distance.


-----Technical Parameters-----


Channel   working frequency Output power(±1dBm)
CH1 2.4G 2400-2485MHz 40 dBm
CH2 GPSL1, Glonass, BDS

1575.4±2.5MHZ(1.5G-GPS)
1602±5MHZ(1.5G-GLONASS)
1561±2.5MHZ(BDS)

40 dBm
GPSL2, Glonass, BDS

1227.6±2.5MHZ(GPS)
1246±5MHZMHz(1.2G-GLONASS)
1207±10.5MHZ(BDS)

40 dBm
900M 902-928MHz 43 dBm
CH3 5.8G 5725-5850MHz 36 dBm
Build-in battery

24V,8A ( min 1 hour working continually)
Check battery working by LCD display.

Signal Source Digital gaussian white noise
jamming radius Up to 1.5km

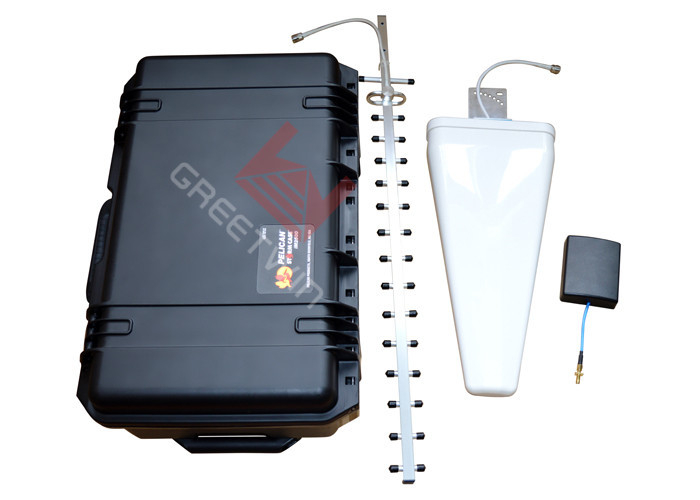

Antennas

3pcs directional antennas
2.4G , 14dBi Yagi Antenna
5.8G , 14dBi Panel Active Antenna
GPS and 900MHz , 14dBi Log Periodic Dipole Antenna

Output Power 54W
Power consumption 180W
Main engine weight 16Kg
Size 551 x 358 x 226 mm
Shell Pelican IM2500
Humidity 30%-95%
Running temperature -10℃ to +50℃


1.5 Km Long Distance Drone Signal Jammer 54 Watt With Directional Antennas
